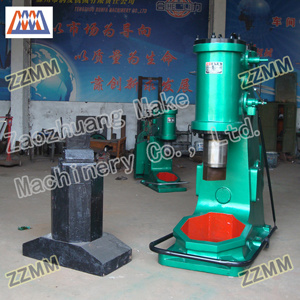

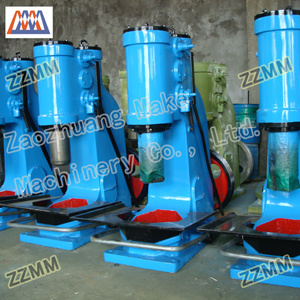

150kg Power Die Air Forging Hammer with CE Approved (C41-150)

Name: 150kg Power Die Air Forging Hammer with CE Approved (C41-150)
Brand: tool-buy.com
SKU: 760370445
Availability: InStock
Rating: 4.5 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zaozhuang Make Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	C41-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	C41-40,C41-55,C41-75,C41-150
Forging Forming Method:	Mold Forging

Product Description

150kg Power Die Air Forging Hammer with CE Approved(C41-150)
Main Features

The air hammer with small size,low noise,simple structure ,
easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawingout ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for opendie forging in bolster dies.
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and selfemployed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith's iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.

Specifications
1.Durable and great power
2.Easy installation and operation
3.Convenient maintenance
4.Professional hammer die upon your need

SPECIFICATION	UNIT	C41-40kg	C41-55kg	C41-75kg	C41-150kg
SPECIFICATION	UNIT	separate/single	separate	separate	separate
Max. hit energy	kj	0.53	0.7	1	2.2
Height of working area	mm	245	265	300	370
Hit number	min -1	245	230	210	180
Dimension of top and bottom die surface(LxW)	mm	120*50	120*55	145*65	200*85
Max. square steel can be forged	mm	52*52	52*52	65*65	130*130
Max. round steel can be forged(Diameter)	mm	¢68	¢68	¢85	¢145
Motor power	kw	4	5.5	7.5	15
Speeds of motor	r. p. m	1440	1440	1440	1470
Anvil weight	kg	400/0	600	850	1800
Total weight	kg	1350/880	1700	2800	5060
Overall dimensions(LWH)	mm	10806001430	13206701620	14007601950	208012402350
