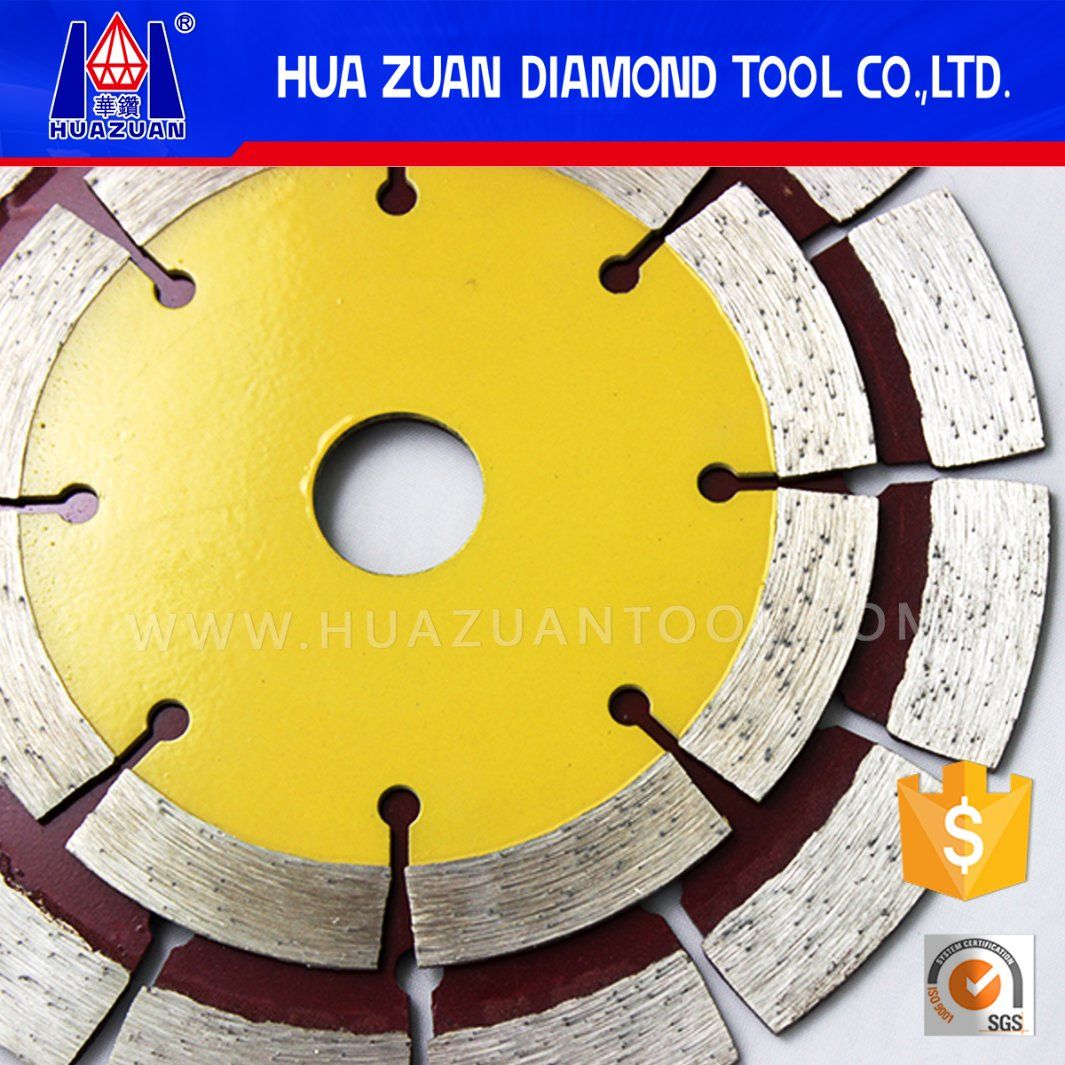

153mm Sintered Hot Pressed Segmented Saw Blade

Prod Model:	80026
Product Name:	Concave Cutting Blade
Segment Dimension Thickness:	1.7-3.4
Application:	Tile ,Ceramic,Glass,Thin Granite ,Marble,Slabs
Purposes:	General Edge Cutting
Segment Dimension Height:	8-12
Bore Diameter:	16/20/22.23/25.4/50
Outer Diameter:	105-300mm
Advantage:	Long Life and Fast Cutting Speed
Certification:	ISO9001:2000, SGS
Delivery:	by Air, by Sea, by Express
Type:	Hacksaw
Material:	Metal
Shape:	Circular Saw
Brand:	Huazuan
Processing Method:	Sinter,Hot Press,Cold Press
Use Place:	Marble,Granite,Tiles,Ceramic

Product Description

1.Detail info of the small saw blade
Table 1

Outer diameter		Inner diameter (mm)	Dimension of segment (mm)
Inch	mm		Height	Thickness
4.125''	105	16/20/22.23/25.4	8/10/12	1.7
4.375''	110	16/20/22.23/25.4	8/10/12	1.8
4.5''	115	16/20/22.23/25.4	8/10/12	1.8
5''	125	16/20/22.23/25.4	8/10/12	1.8
6''	150	16/20/22.23/25.4	8/10/12	2
7''	180	22.23/25.4	8/10/12	2.2
8''	200	22.23/25.4	8/10/12	2.2
9''	230	22.23/25.4	8/10/12	2.2
10''	250	22.23/25.4	8/10/12	2.5
12''	300	22.23/25.4	8/10/12	2.5
14''	350	25.4/50/60	8/10/12	3.2
16''	400	25.4/50/60	8/10/12	3.4

Table 2

Item	Details	Remark
Application	Removal of mortar joints and preparation of masonry surfaces including Concrete, Block ,Bricks, and Stone.	Different stone different formula
Size	From 105mm to 300mm	Can be required by clients
Type	Wet cutting & Dry cutting
Raw material	Diamond, Co, other metal powder
Performance	Stable, fast cutting, no chipping
Competitive advantage	Factory direct sale, Reasonable price, Good service
Certification	ISO9001-2000, SGS


2.Parameter of all diamond cutting discs:

Edge cutting disc	Application	Advantages
Segmented saw blade	Dry cutting blade, It can cut without water. Suitable for cutting various hard materials, such as marble, granite, sandstone, limestone, ceramic, tile concrete,asphalt,refractory,brick,etc.	Sharp, Smooth cutting
Continuous rim blade	Wet cutting blade, It must cutting with water.	Sharp, Long lifespan
Turbo saw blade	Suitable for either dry cutting or wet cutting. Good at chip removal, cool down when cutting.	Fast cutting Accurate cutting Excellent performance
Strengthen turbo saw blade	Good at chip removal, low noise, cool down and bending resistance when cutting.	Bending resistance
Tuck point blade	Removal of mortar joints and preparation of masonry surfaces including concrete block, bricks and stone. The thickness of segments and saw blank are higher than others.	High-efficiency
Concave saw blade	Use for arc-shape cutting.	Smooth cutting
Blade with protection segment	Good for protecting the saw blank during cutting.	Safety

Company Introduction:

Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.
We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients,suppliers and staffs.In recent years,company make and practice a strategic plan to reinforce a high quality production system,create a consultant service team" and reached great success.
At present,China diamond tool constantly embody the competitiveness in the world ,we expect to contribute ourselves to change the poor quality image of China diamond tool in the world with our effect.

FAQ
Q:Which design is best for you?
A:Considering to cut different objects,there are a lot of diamond blades with different thickness,size,materialproportion,design and technology.You need to teel us what you will cut,its hardness,thickness,sharp,the speed you need.Then our engineer will design the right blade for you.

Q: Which grade is suitable for you?
A: We have economical ones and pro ones,please tell us your target price and the market you will sell.Then we will analyze and provide you the best price for you.

Q: Blade with or without sound attenuation?
Tell us if  your country has the laws that don't allow so much noise or not,then we will arrange well for you.
