16" Laser Welded Diamond Blade for Asphalt Overlay Cutting

Price:	Negotiable/Piece
Trade Terms:	FOB,FCA
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Johnson Tools Manufactory Co., Ltd.

Showroom Product Company Profile

Prod Model:	4.1.3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	4.5 Inch
Manufacturing Arts:	Welding
Usage:	Asphalt Cutting
Kind:	Diamond Laser Saw Blade
Saw Blade External Diameter:	115mm

Product Description

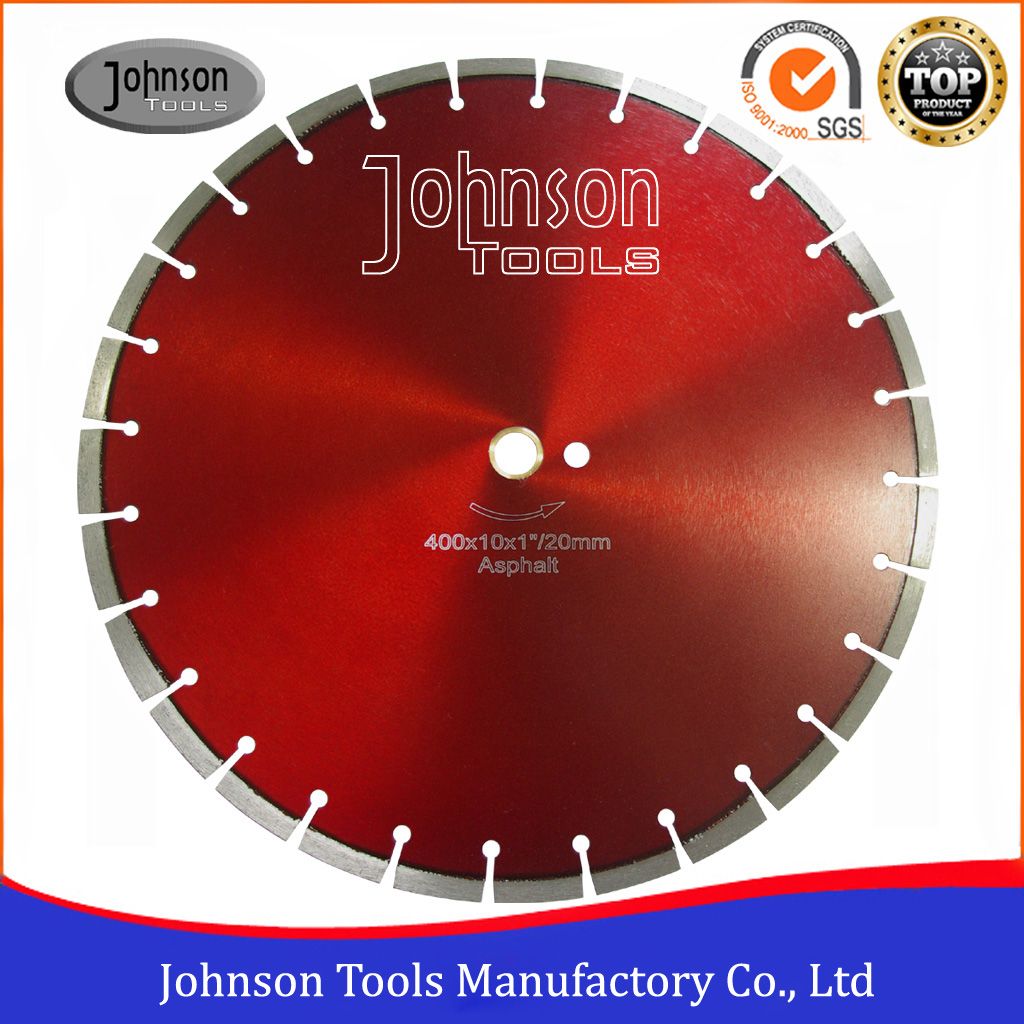

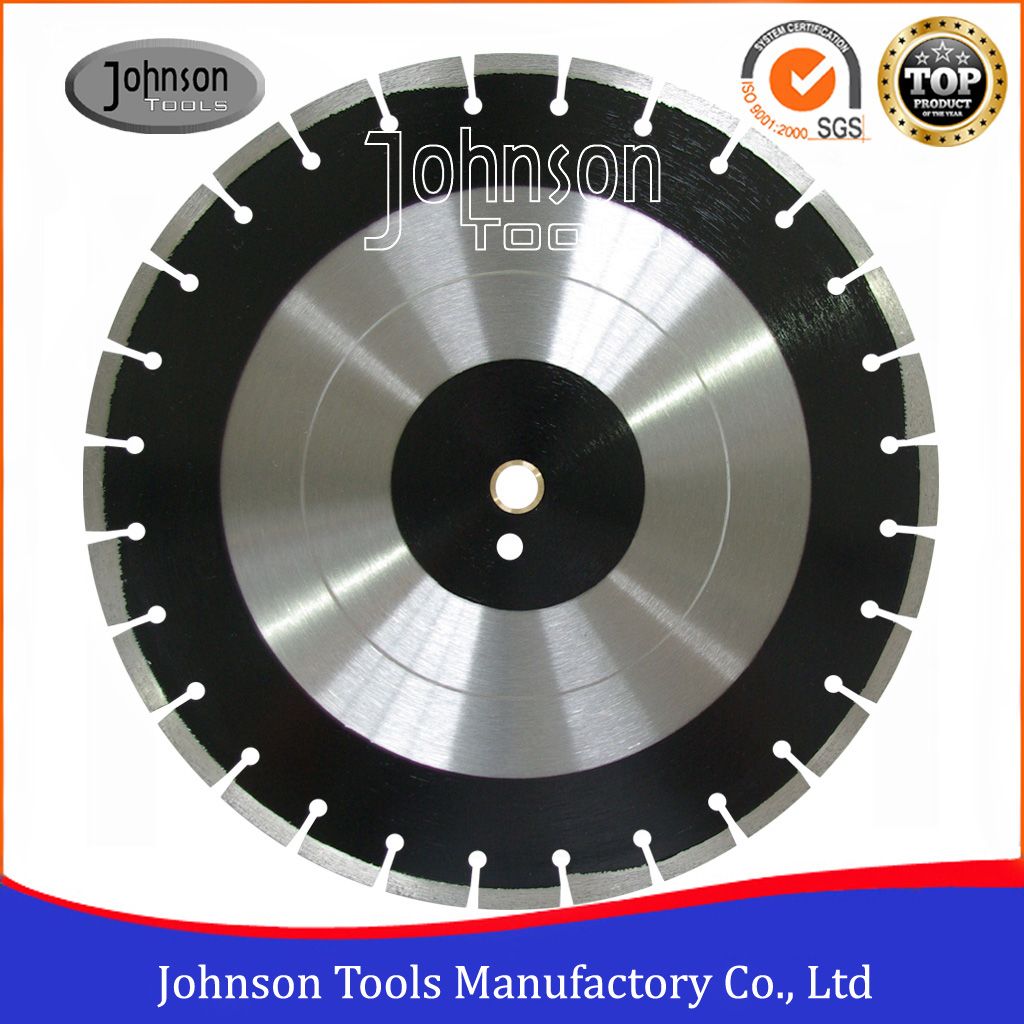

16" Laser Welded Diamond Blade for Asphalt Overlay Cutting

Why choose us
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time

1. Description of 16" Laser Welded Diamond Blade for Asphalt Overlay Cutting

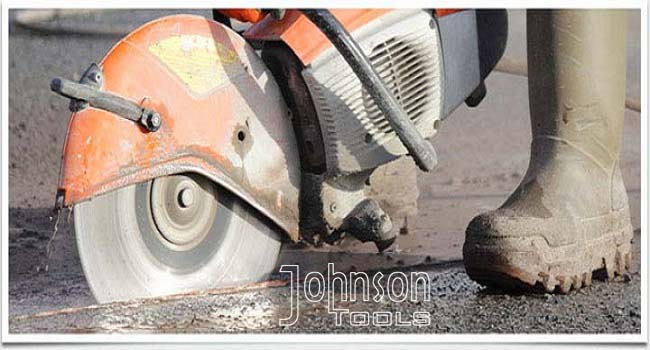

16"(400mm) Laser welded Diamond Saw Blade designed for asphalt, asphalt overlay and other abrasives material cutting with high efficiency. Wet and dry cutting for construction, highway, building, highway, road work, as well as driveways, parking lots, pavement.

2. Feature of 16" Laser Welded Diamond Blade for Asphalt Overlay Cutting

1) Processing technology: Laser welded.
2) Professional, premium, standard quality grade available.
3) Various protection segment prevent abrasive materials from wearing and tearing steel core.
4) Maximum cutting performance and long life via tough wear-resistant segments.
5) Suitable for walk-behind concrete saws or hand-held saws.

3. Specification of 16" Laser Welded Diamond Blade for Asphalt Overlay Cutting
Diameter:400mm
Segment thickness:3.4mm
Segment height:10/12/15mm
Inner hole:25.4mm, 50mm as your request

Inch	Diameter (mm)	Teeth length (mm)	Teeth thickness (mm)	Teeth height (mm)	Teeth number (nos)
16"	400	40	3.4	10	28
16"	400	40	3.4	12	28
16"	400	40	3.4	15	28

Other size we could do

Inch	Diameter (mm)	Teeth length (mm)	Teeth thickness (mm)	Teeth height (mm)	Teeth number (nos)
4"	105	32	2.2	7/10/12	8
4.5"	115	31	2.2	7/10/12	9
5"	125	31	2.2	7/10/12	10
6"	150	34	2.2	7/10/12	11
7"	180	34	2.4	7/10/12	14
8"	200	40	2.4	7/10/12	13
9"	230	37	2.6	7/10/12	16
10"	250	40	2.6	10/12/15	16
12"	300	40	3.0	10/12/15	20
14"	350	40	3.2	10/12/15	24
18"	450	40	3.6	10/12/15	32
20"	500	40	4.0	10/12/15	36
24"	600	40	4.4	10/12/15	42

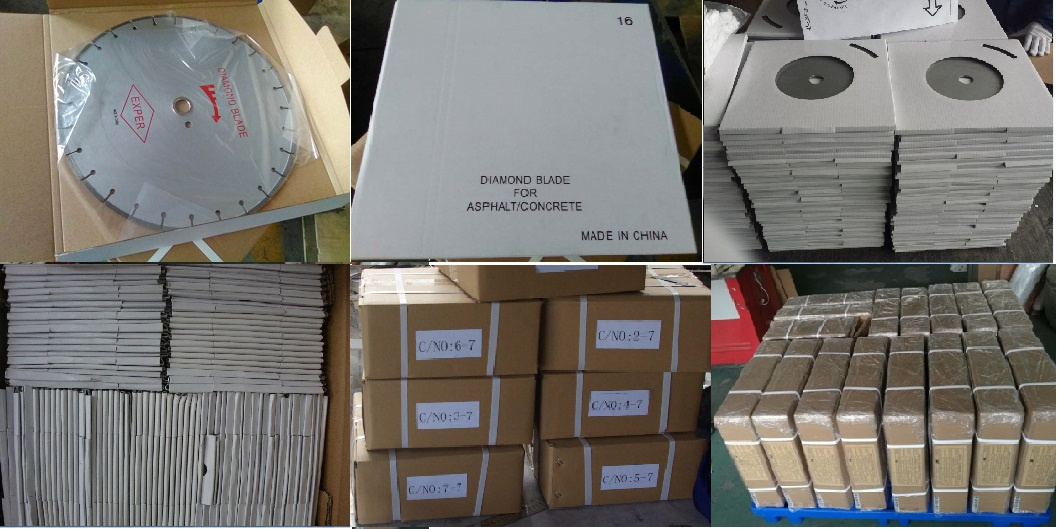

4. Packing and Shipping

Each 16" laser saw blade is packed in white box, then 10pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.

5. Payment term

T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

6. Client Feedback

7. Our Related Products

8. Certification

9. Our Exhibition

10. Company information

Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries.

We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.

Johnson Tools people sincerely looking forward to serving you in the near future!

Let's work together to make the business better and better.

Why clients choose Johnson?

1) Quality & Service:

We, Johnson Tools Manufactory Co., Ltd have very strict quality control system. There is one QC team in our factory on examination of every product before dispatching. We try our best to achieve zero defects.

2) Convenience of One-Stop Sourcing:

On stone and construction industry, from cutting, grinding, drilling, polishing, profiling field, till stone and its cutting machine, we can help you select the best tools, finish your project perfectly.

3) Flexible payment term:

T/T, Letter of Credit, PayPal, West Union, Credit Card, etc.

4) Delivery time:

Around 5-30days based on quantity of clients' order.

Repeated orders, we help our clients prepare one order's raw materials to shorten the producing time.

5) Good evaluation of our clients' from our deferent's countries.

6) Sales Teams:

We have a friendly, enthusiastic, energetic sales team, ready to service with you all the time.

Professional Manufacturer on Diamond Tools since Year 2000.

Above 95% Diamond Tools products export to Six Continent, over 70 Countries.

Our diamond tools differ diamond Cutting tools, diamond Grinding tools, diamond Polishing tools, diamond Drilling tools, and other accessories & stone cutting machine. Wildly used on Stone and Construction industry.

*****Customer Evaluation*****

To do the same bond as we use is very important. We did many tests at your blades And the performance is very good. -- Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade. -- Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete. -- Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed. -- Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s a very good indice! -- Julia

And its good, We need more: ) Saw blade 20X 600mm 20X 800mm 3X 1000mm 10X1200mm.

-- Kovacevic

Welcome to join us to be a Johnson Tools partner!

Let's work together to make the business better and better.
