Prod Model: |
XPA (15ton-315ton) |
Precision Standard: |
GB(Japan 1 Class) |
Frequency Inverter: |
Taiwan Delta / Japan Yaskawa |
Hydraulic Over-Load Protector: |
Japan Showa/ Taiwan King Air |
Dry Clutch: |
Italian Ompi |
Main Motors: |
Taiwan Teco |
Double Solenoid Valve: |
Japan's Taco |
Oil Lubricator/Filter: |
German Rexroth/Japan SMC |
Bearings: |
Japan NTN/NSK |
PLC: |
Japan Omron |
Welded Steel Structure: |
Elimination of Internal Stress Process, CNC Precis |
Controlling Mode: |
CNC |
Power Source: |
Mechanical Drive |
Precision: |
High Precision |
Type: |
High Precision Power Press |
Automatic Grade: |
PLC Control ,Human-Machine Interface |
Product Description
Manufacturing Precision Standards : Japanese JIS 1 Class
1. Parameters
1) 25ton ~60ton Parameters
Item | XPA-25 | XPA-35 | XPA-45 | XPA-60 |
Model | V | H | V | H | V | H | V | H |
Capacity | Ton | 25 | 35 | 45 | 60 |
Rated tonnage point | mm | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 | 4 | 2 |
Speed changing | s.p.m | 60-140 | 130-200 | 40-120 | 110-180 | 40-100 | 100-150 | 35-90 | 80-120 |
Stable speed | s.p.m | 110 | 85 | 75 | 65 |
Stroke | mm | 60 | 30 | 70 | 40 | 80 | 50 | 120 | 60 |
Die height | mm | 200 | 215 | 220 | 235 | 250 265 | 310 | 340 |
Slide adjustment | mm | 50 | 55 | 60 | 75 |
Slide area | mm | 300x230x50 | 360x250x50 | 400x300x60 | 500x360x70 |
Bolster area | mm | 680x300x70 | 800x400x70 | 850x440x80 | 900x500x80 |
Shank hole | mm | Φ38.1 | Φ38.1 | Φ38.1 | Φ38.1 |
Main motor | kw.p | 3.7x4 | 3.7x4 | 5.5x4 | 5.5x4 |
Slide adjust device | HP | Manual operation |
Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
Presses precision | | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class |
Presses dimension | mm | 1280x850x2200 | 1380x900x2400 | 1575x950x2500 | 1595x1000x2800 |
Presses weight | Tons | 2.1 | 3 | 3.8 | 5.6 |
Die cushion Optional | Capacity | Ton | - | 2.3 | 2.3 | 3.6 |
Stroke | mm | - | 50 | 50 | 70 |
Die cushion effective area | mm2 | - | 300x230 | 300x230 | 350x300 |
2) 80ton ~200ton Parameters

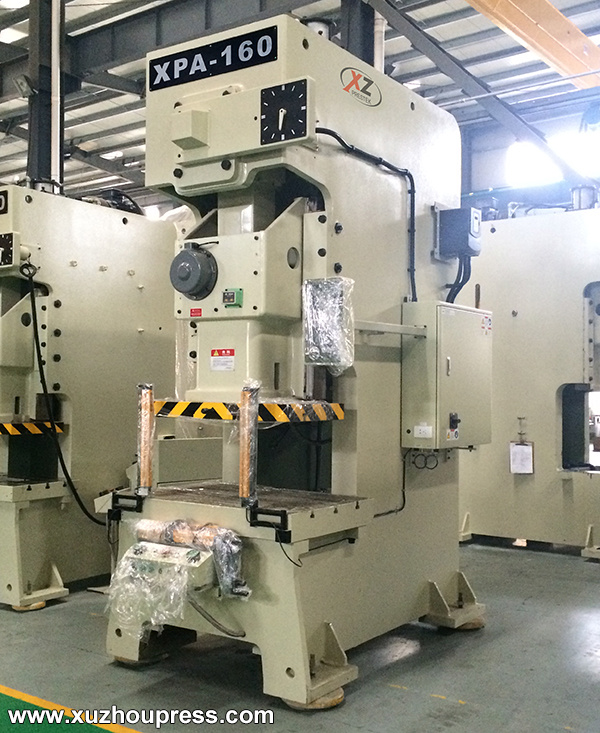

Item | XPA-80 | XPA-110 | XPA-160 | XPA-200 |
Model | V | H | V | H | V | H | V | H |
Capacity | Ton | 80 | 110 | 160 | 200 |
Rated tonnage point | mm | 4 | 2 | 6 | 3 | 6 | 3 | 6 | 3 |
Speed changing | s.p.m | 35-80 | 80-120 | 30-60 | 60-90 | 20-50 | 40-70 | 20-50 | 50-70 |
Stable speed | s.p.m | 65 | 50 | 35 | 35 |
Stroke | mm | 150 | 70 | 180 | 80 | 200 | 90 | 200 | 100 |
Die height | mm | 340 | 380 | 360 | 410 | 400 | 450 | 460 | 510 |
Slide adjustment | mm | 80 | 80 | 100 | 110 |
Slide area | mm | 560x420x70 | 650x470x80 | 700x550x90 | 850x550x90 |
Bolster area | mm | 1000x550x90 | 1150x600x110 | 1250x800x140 | 1350x820x140 |
Shank hole | mm | Φ50 | Φ50 | Φ65 | Φ65 |
Main motor | kw.p | 7.5x4 | 11x4 | 15x4 | 18x4 |
Slide adjust device | HP | Electrial driving |
Air pressure | kg/cm2 | 6 | 6 | 6 | 6 |
Presses precision | | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class | GB(JIS)1 class |
Presses dimension | mm | 1800x1180x2980 | 1900x1300x3200 | 2420x1390x3465 | 2420x1490x3612 |
Presses weight | Tons | 6.5 | 9.6 | 14 | 16 |
Die cushion Optional | Capacity | Ton | 3.6 | 6.3 | 10 | 10 |
Stroke | mm | 70 | 80 | 80 | 80 |
Die cushion effective area | mm2 | 450x310 | 500x350 | 650x420 | 650x420 |
3) 260ton ~315ton Parameters
Name | XPA-260 | XPA-315 |
Model | V | H | V | H |
Capacity | 260 | 315 |
Rated tonnage point | 6 | 3 | 7 | 3.5 |
Speed changing | 20-50 | 50-70 | 20-35 | 35-50 |
Stable speed | 30 | 30 |
Stroke | 200 | 100 | 250 | 150 |
Die height | 460 | 550 | 500 | 550 |
Slide adjustment | 120 | 120 |
Slide area | 850x630x90 | 950x700x100 |
Bolster area | 1400x820x160 | 1600x900x200 |
Shank hole | Φ65 | Φ65 |
Main motor | 22x4 | 30x4 |
Slide adjust device | Electrical Driven |
Air pressure | 6 | 6 |
Presses precision | GB(JIS)1 class | GB(JIS)1 class |
Presses dimension | 2735x1780x4070 | 2845x1950x4500 |
Presses weight | 22 | 33 |
Die cushion capacity | 14 | 14 |
Stroke | 100 | 100 |
Die cushion effective area | 710x480 | 810x480 |
Product Features :
* With high rigidity rack design, they are welded with the use of high- quality steel plates, through relieving of internal stresses, so that stability and reliability of the whole machine in precision are enhanced.
* Consistent driving center and machine center to guarantee accurate and stable punching.
* In order to guarantee relative stationarity of machine operation, it is necessary to equip with two balancers.
* Moulding-adjustment precision is as high as 0.1mm, safe, speedy, and reliable.
* Through hard oxidation and grinding, such parts as bent axles, gear sets, and connecting rods possess higher combination property and tolerance.
* Adopt highly sensitive and reliable clutch/brake and internationally top duplex magnetic valve, as well as overload protection devices, to guarantee precision and safety for operation and stop of press rams.
* Machine's structural design shall be reasonable, for the convenience of realizing automatic production, reducing cost, and improving efficiency.
* Possess advanced design concepts, low noise, low consumption, and energy saving.
Standard configuration :
* Inverter
* Hydraulic over-load protector
* Slide adjuster (60Tons and below)
* Slide adjust device (80Tons and above)
* Die height indicator (60Tons and below)
* Die height indicator (60Tons and above)
* Balance device
* Rotary cam switch
* Misfeed detection consent
* Power supply
* Crank angle indicator
* Electrical stroke counter
* Air source connector
* Against over-run safety device
* Air ejector
* Maintenance tool box
* Operation manual
Optional Configuration :
* High performance wet clutch & brake
* Electrical automatic lubrication system
* Pneumatic die cushion device
* Foot switch
* Quick die change device (die lifter, clamp and die arm sepjes)
* Slide knock-out device
* Anti-vibration press mount
* Photo-electronic safety device
* Feeder
* Uncoiler
* Leveler
* Mechanism hand
* Die room light
* Touch pad (preset total counter)
* PAC 100 counter system
* Human-computer control system
