Product Description

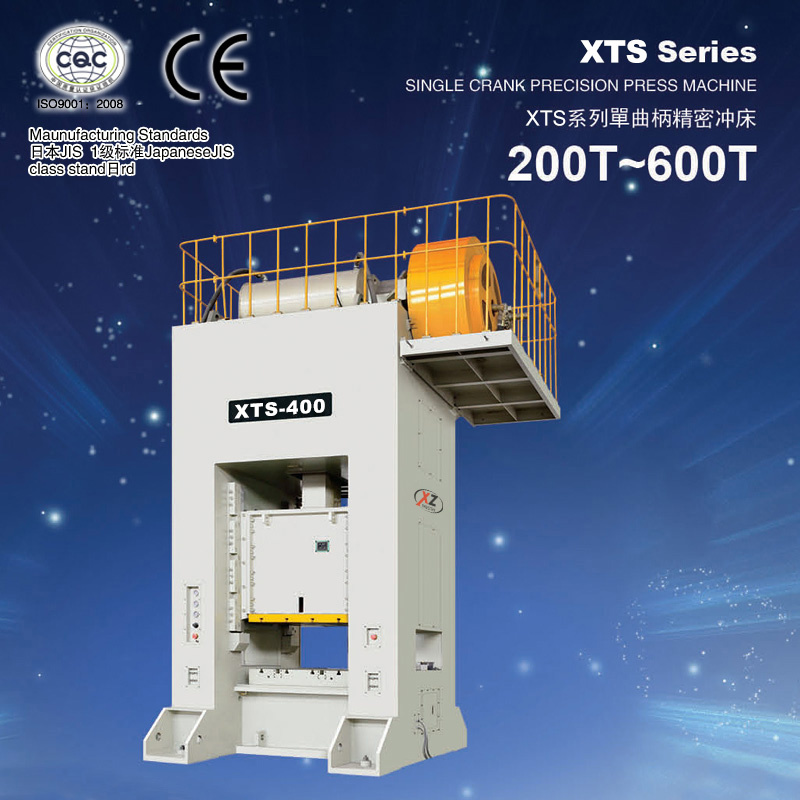

XTS Straight Side Single Crank Heavy Duty Mechanical Power Press (200ton-600ton) Manufacturing Standards: ISO/CE/Japanese JIS 1 Class
* Provide Customized Personalized Service
1. Parameters 1) 200ton -- 300ton Parameters
Name
Unit
XTS-200
XTS-250
XTS-300
Capacity
ton
200
200
250
250
300
300
Rated tonnage point
mm
4
7
4
7
9
7
Stroke
mm
40
250
40
250
300
250
Speed changing
s.p.m
60-130
20-40
50-110
20-40
20-35
20-35
Die height
mm
350
550
380
550
650
550
Maximum
kg
1000
1200
800
800
1500
1500
counterbalancer
capacity
Slide adjustment
mm
100
150
100
150
150
150
Slide area
mm
900x800
900x800
900x800
900x800
1000x900
1000x900
Bolster area
mm
1000x900
1000x900
1000x900
1000x900
1100x1000
1100x1000
Bolster thickness
mm
170
170
180
180
200
200
Side opening
mm
400x400
400x400
400x400
400x400
400x500
400x500
Height of the top surface of bed from floor level
mm
850
850
850
850
850
850
Work energy
kgxm
800
1500
1000
2000
3000
2500
Main Motor
Hpxp
30x4
30x4
30x4
30x4
30x4
30x4
Slide adjusting moter
kwxp
2x4
2x4
2x4
2x4
2x4
2x4
Frame structure
one piece frame
2) 400ton -- 600ton Parameters
Name
Unit
XTS-400
XTS-500
XTS-600
Capacity
ton
400
400
500
500
600
600
Rated tonnage point
mm
9
7
13
7
7
13
Stroke
mm
300
200
350
250
250
350
Speed changing
s.p.m
15-30
20-35
10-25
15-30
15-25
15-20
Die height
mm
600
650
650
700
700
650
Maximum
kg
1500
1500
1500
1500
1500
1500
counterbalancer
capacity
Slide adjustment
mm
150
150
150
150
150
150
Slide area
mm
1100x1100
1100x1100
1200x1200
1200x1200
1200x1200
1200x1200
Bolster area
mm
1200x1200
1200x1200
1300x1200
1300x1200
1300x1200
1300x1200
Bolster thickness
mm
200
200
220
220
240
240
Side opening
mm
400x500
400x500
500x650
500x650
500x650
500x650
Height of the top surface of bed from floor level
mm
1090
1090
1200
1200
1350
1350
Work energy
kgxm
3600
2800
7000
3800
5000
8000
Main Motor
Hpxp
30x4
30x4
30x4
30x4
30x4
30x4
Slide adjusting moter
kwxp
2x4
2x4
3x4
3x4
3x4
3x4
Frame structure
tie rod type
2. Technical Descriptions :

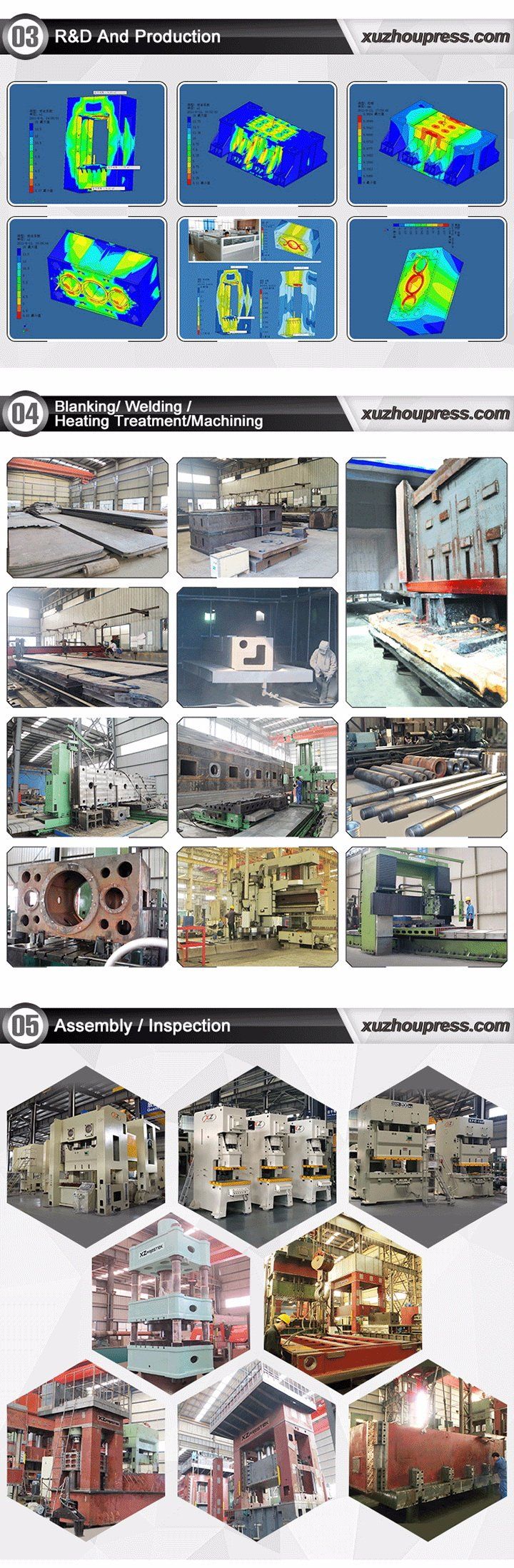

Product Features: 1) Combined with European, American, and Japanese advanced technologies/adopt functional structure/ CAE dynamic simulation optimization design 2) High-rigidity and high-quality steel welding or whole frame casting for tempering/ vibration stress processing 3) High-standard fabrication processing for key parts of gears and bent axles for hard chrome plating/nitriding/grinding 4) High-performance configurations such as controllers/drive parts/electromagnetic clutches/pneumatic elements and bearings 5) Technical grade of international stamping equipment and high inspection index. 6) High-response multi-functional superposition expansion/high-quality industrial control processor 7) High-memory module/individual design franchised software compilation 8) High-compatibility multi-axial variable speed drive/automation equipment onboard expansion 9) High-intelligent human-computer interface/high-frequency real-time control/Ethernet & USB interface

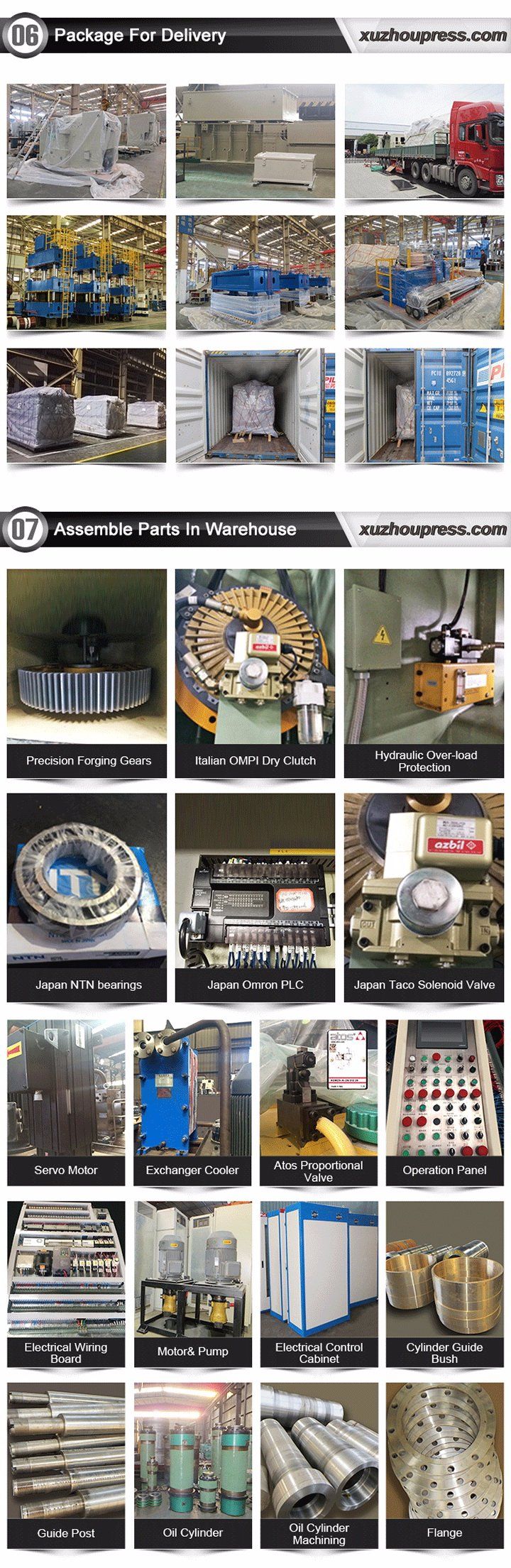

Standard Configuration: > Hydraulic overload protector > Electric slider adjusting device > Digital moulding-height indicator(unit: 0.1 mm) > Slider and mould balancing device > Rotary cam switch > Crank angle indicator > Circulation centralization lubrication oil feeding device >Electromagnetic strokecounter > Over-run safety device > Programmable controller > Moveable T-type operating floor > Air source connector > Independent electric control cabinet > Maintenance tool and tool box
Optional Configuration: > Die cushion > Upper slider knock out device > Die Light > Main motor inversion device > Photo-electric safety device > Safety groove and safety pin > Pre-set counter (6 digits) > Loading inspection device > Misfeed detection consent > Frequency converter > Basic bolt and soleplate > Anti-vibration foot > Safety shelf and safety ladder > Power socket > Quick die change device
