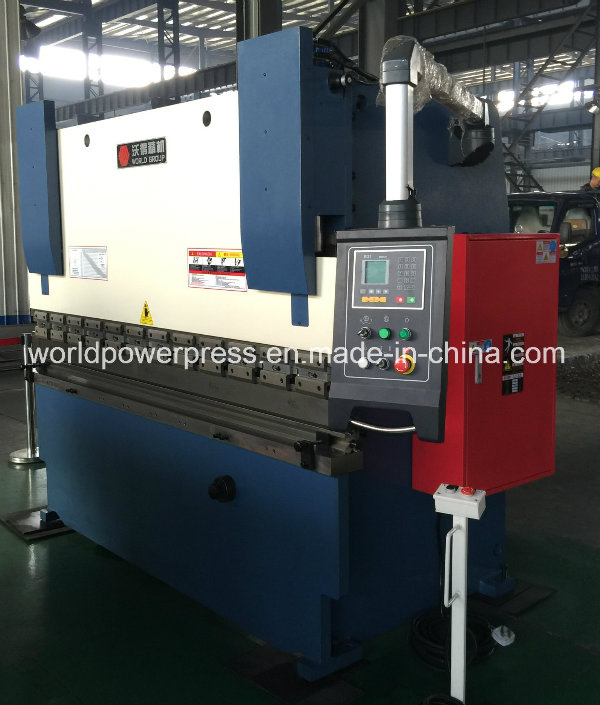

160ton Power 3m Table Metal Sheet Bending Machine

Name: 160ton Power 3m Table Metal Sheet Bending Machine
Brand: tool-buy.com
SKU: 750632645
Availability: InStock
Rating: 4.7 (135 reviews)

Price:	US $ 10000-20000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	WC67Y-160/3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Bending Machine:	Hydraulic Press Brake
Capacity Range:	160ton
Table Length:	3200mm
Backgauge Range:	600-1000mm
Power:	380V/50Hz/3phase
Hydraulic System:	Chinese Brand
Application:	Machinery & Hardware
Type For Fold-Bending Machine:	Hydraulic Fold-Bend Machine

Product Description

sheet bending machine

Features:

1) A fully welded steel construction with full strength and rigidity.
2) Hydraulic down-stroke construction.
3) Synchronizing mechanism of the RAM adopting torque-tube and mechanical stop unit, stable and reliable.
4) Deflection-compensating mechanism of wedge construction.
5) Power fast adjustment, manual fine adjustment and counter-showing for the RAM stroke.

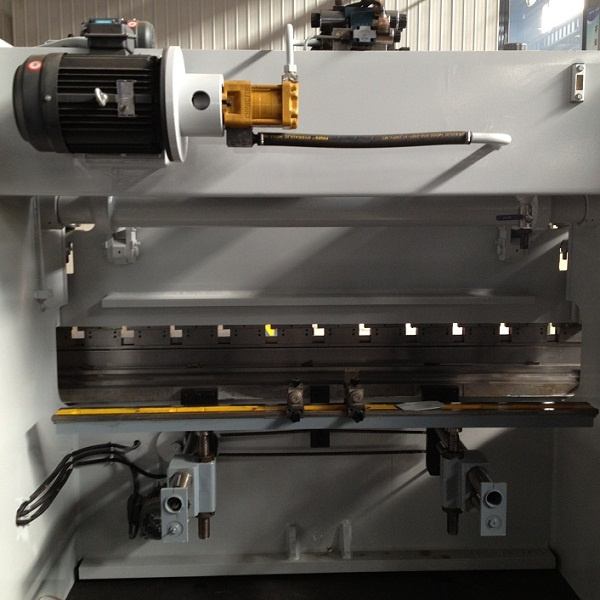

6) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.

Details:

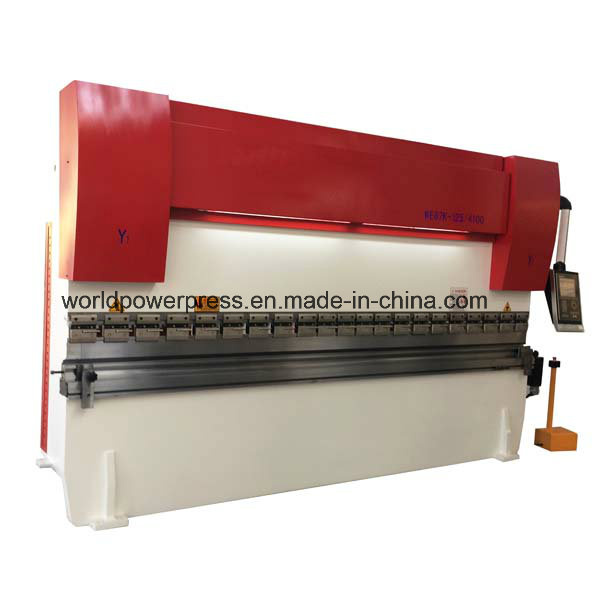

Plate Bending Hydraulic Press Brake (WC67Y)

Items	unit	63/2500	63/3200	100/2500	100/3200	100/4000	125/2500	125/3200	125/4000
Nominal pressure	kN	630	630	1000	1000	1000	1250	1250	1250
Length of table	mm	2500	3200	2500	3200	4000	2500	3200	4000
Distance between uprights	mm	2050	2600	2050	2600	3300	2050	2600	3200
Throat depth	mm	250	250	320	320	320	320	320	320
Ram stroke	mm	100	100	150	150	150	150	150	150
Max. open height between ram and table	mm	345	345	415	415	415	415	415	415
Adjustment of Ram stroke	mm	75	75	120	120	120	120	120	120
Approach speed	mm/s	90	90	120	120	120	110	110	110
Bend speed	mm/s	8	8	13	13	13	10	10	10
Return speed	mm/s	66	66	115	115	115	100	100	100
Main motor	kW	5.5	5.5	7.5	7.5	7.5	11	11	11
Overall dimension ( LxWxH )	mm	2560	3260	2650	3350	4150	2650	3350	4150
		1725	1725	1785	1785	1785	1785	1785	1785
		2280	2280	2460	2510	2560	2540	2560	2610
Weight	kg	4400	5200	6100	7000	79000	6600	7300	8800
Items	unit	160/2500	160/3200	160/4000	200/3200	200/4000	250/3200	250/4000	300/3200
Nominal pressure	kN	1600	1600	1600	2000	2000	2500	2500	3000
Length of table	mm	2500	3200	4000	3200	4000	3200	4000	3200
Distance between uprights	mm	2050	2600	3400	2600	3700	2600	3200	2600
Throat depth	mm	320	320	320	320	320	400	400	400
Ram stroke	mm	200	200	200	200	200	250	250	250
Max. open height between ram and table	mm	470	470	470	520	520	560	560	560
Adjustment of Ram stroke	mm	160	160	160	160	160	200	200	200
Approach speed	mm/s	100	100	100	90	90	100	100	90
Bend speed	mm/s	9.5	9.5	9.5	8.5	8.5	9.5	9.5	9
Return speed	mm/s	95	95	95	85	85	110	110	120
Main motor	kW	11	11	11	15	15	18.5	18.5	22
Overall dimension ( LxWxH )	mm	2560	3260	4060	3500	4150	3350	4150	3300
		1940	1940	1940	1940	1940	2000	2000	2100
		2660	2660	2660	2660	2900	2900	2970	3100
Weight	kg	9000	9600	11800	12000	14800	14000	16000	18500
Items	unit	300/4000	400/3200	400/4000	400/5000	500/4000	500/5000
Nominal pressure	kN	3000	4000	4000	4000	5000	5000
Length of table	mm	4000	3200	4000	5000	4000	5000
Distance between uprights	mm	3200	2600	3200	4000	3200	4000
Throat depth	mm	400	400	400	400	400	400
Ram stroke	mm	250	300	300	300	300	300
Max. open height between ram and table	mm	560	630	630	630	630	630
Adjustment of Ram stroke	mm	200	250	250	250	250	250
Approach speed	mm/s	90	90	90	90	80	80
Bend speed	mm/s	9	8	8	8	7	7
Return speed	mm/s	120	85	85	85	70	70
Main motor	kW	22	30	30	30	37	37
Overall dimension ( LxWxH )	mm	4150	3300	4150	5150	4150	5150
		2100	2260	2260	2260	2400	2400
		3150	3200	3400	3600	3600	3800
Weight	kg	22000	23000	29000	35000	40000	57000

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
