| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,FCA |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | 5.2.1.4 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 7 Inch |
| Usage: | Stone Cutting |
| Manufacturing Arts: | Welding |

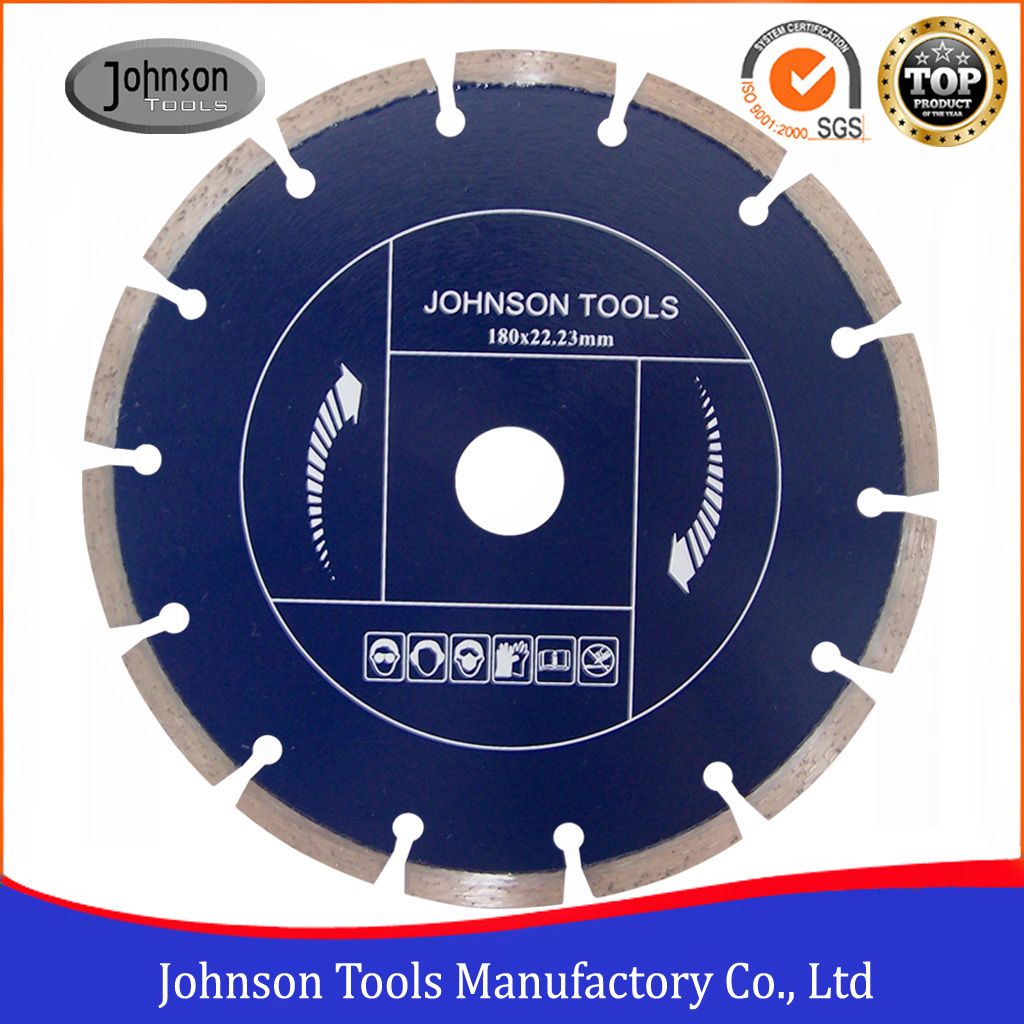

| Kind: | Diamond Laser Saw Blade |
| Saw Blade External Diameter: | 180mm |
1. Processing technology: Laser welded.
2. Specially used for stone cutting, such as marble, granite, gritstone, limestone, basalt, silestone, quartz, etc.
3. Professional, premium, standard quality grade available.
4. Various protection segment prevent abrasive materials from wearing and tearing steel core.
5. Maximum cutting performance and long life via tough wear-resistant segments.
6. Suitable for hand-held saws.
| Diameter | Segment Thickness | Segment Height | Hole |
| 180mm | 2.4mm | 7/8/10mm | 16/20/22.23/25.4mm |
| Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/8/10 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/8/10 | 9 |
| 5" | 125 | 31 | 2.2 | 7/8/10 | 10 |
| 6" | 150 | 34 | 2.2 | 7/8/10 | 11 |
| 7" | 180 | 34 | 2.4 | 7/8/10 | 14 |
| 8" | 200 | 40 | 2.4 | 7/8/10 | 13 |
| 9" | 230 | 37 | 2.6 | 7/8/10 | 16 |
| 10" | 250 | 40 | 2.6 | 7/8/10 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Proforma Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
9. Our Certification:
10. Our exhibition:
11.Sales Teams:
