| Prod Model: |
KET-XLCT Series |
| Maximum Pressure: |
700 Bar |
| Product Name: |
1852-18521 Nm Heaxgon Cassette Hydraulic Torque Wr |
| Max. Torque (Nm): |
2323-41882nm |
| Weight: |
2.3-18 Kg |
| Min. Torque: |
232-4188n.M |
| Bolt Size: |
16-36 to 76-115mm |
| Nut Size: |
24-55 to 110-165nm |
| OEM: |
Yes |
| Warranty: |
One Year |
| Delivery Time: |
5-15 Days After Receive Payment |
| Type: |
Torque Wrench |
| Material: |
Alloy Steel |
| Standard: |
European Type |
| Surface Treatment: |
Titanizing |
| Feature: |
Anti-Explosion |
| Brand: |
Kiet |
| Handle Color: |
Customized |
Product Description

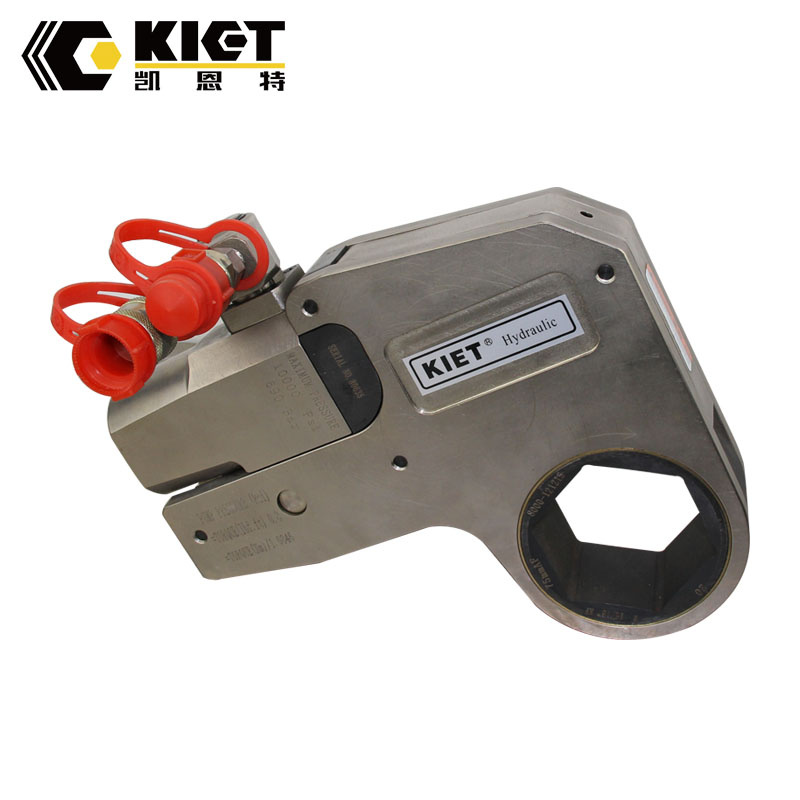

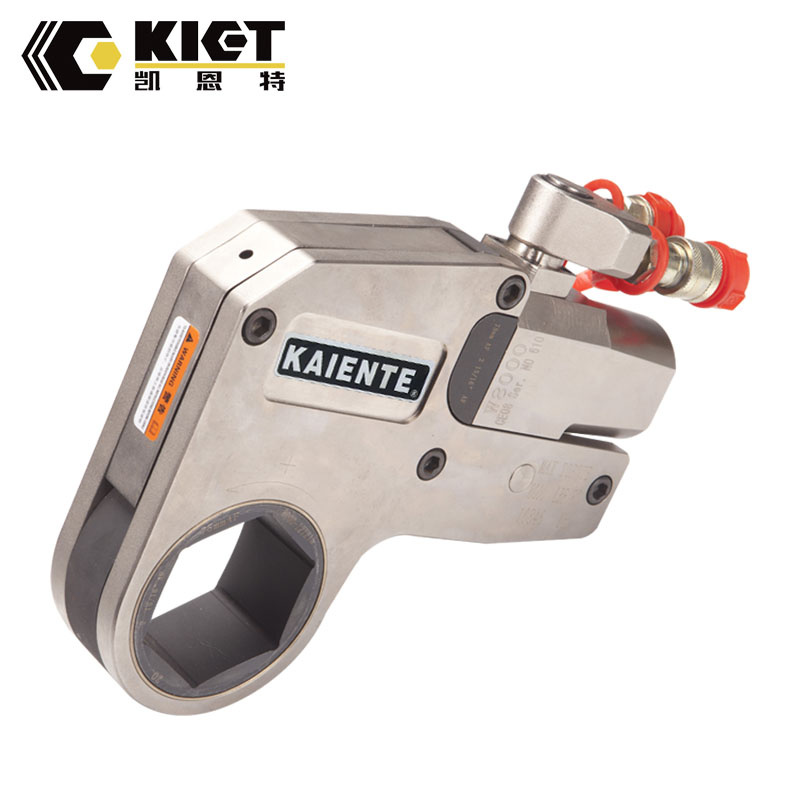

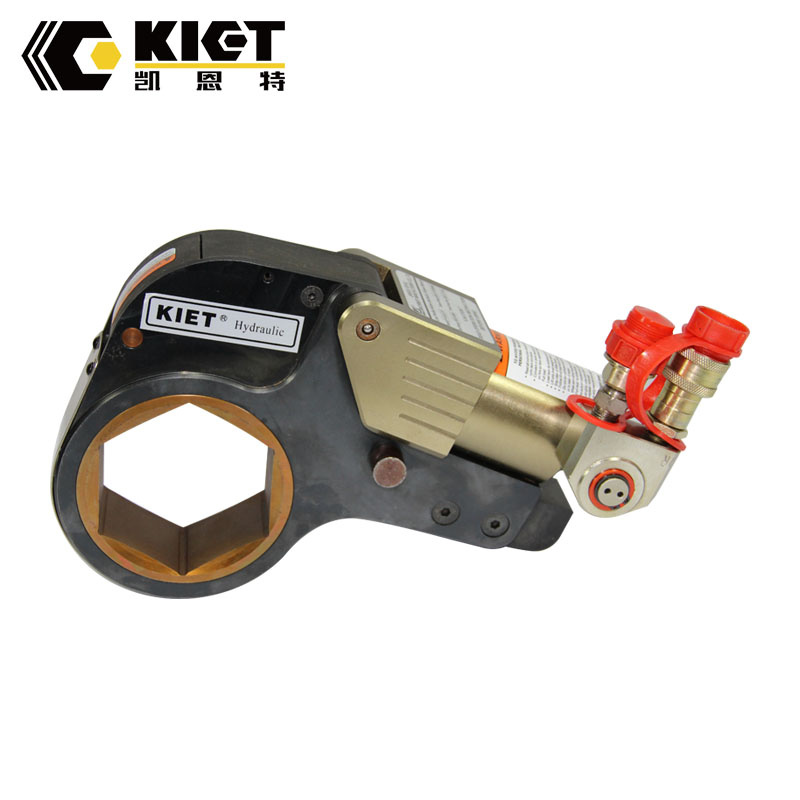

1852-18521 Nm Heaxgon Cassette Hydraulic Torque Wrench
1. The innovative wrench structure without pin joint matches with rapid unloading hydraulic piston and automatic crank
2. The 360º × 180º Rotating hose coupling has no limitation in used space, convenient to operate.
3. The hydraulic piston and power head have small shape, with light weight, compact structure and small operating radius.
4. The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
5. The reactive force is on one straight line, which can decrease the inner torque abrasion
6. The constant torque output provides the high precision for wrench in the whole working process.
7. The maintenance is simple and does not need the special tools.
8. The torque wrench surface has a good corrosion resistant performance after the nickel plating treatment.
9. All the hollow hydraulic wrenches have copper lining to ensure that the ratchet wheel does not contact with the wall, which can extend the working life.
10. You can select the various kinds of reduction sleeves to extend the application range.

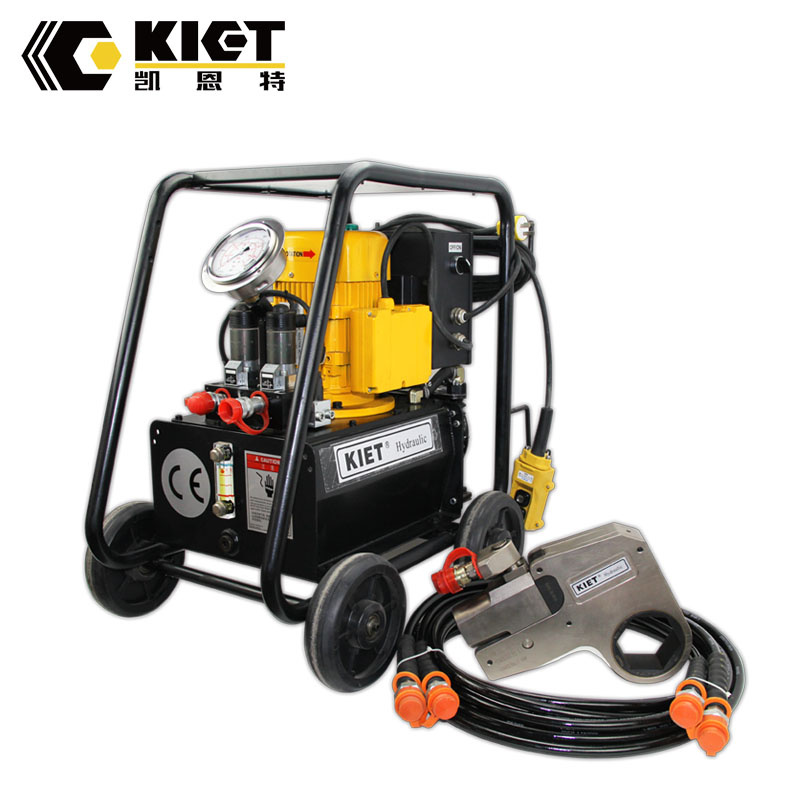

Accessories Available (extra charge):
Hoses
High quality hydraulic hoses to ensure the integrity of your system, refer to our hydraulic hose.
Manual hydraulic pumps
Single acting cylinder pump is the quickest and easiest way to start working right away
Optimum match of individual components
All sets are ready-for-use
Cooperation Terms
1) Our warranty
We guarantee our product for 1 year and we will also provide 1% free parts.
2) Delivery time: 15-30 days after deposit received.
3) Payment Terms: 30% T/T, Balance before shipment.
4) MOQ: 1 set.
About our factory:
Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
For more information about the products please contact me as below:
Aaron (sales Director)
Tel: +86-523 81569666
Mob: +86-18052610078
Web: http://www.chinakiet.com/EN/
Welcome to visit our Factory!
| Model | KET-2XLCT | KET-4XLCT | KET-8XLCT | KET-14XLCT | KET-30XLCT |
| Torque Nm | 232~2328 | 585~5858 | 1094~ 10941 | 1852~ 18521 | 4188~ 41882 |
| Bolt diameterM(mm) | 16-36 | 24-42 | 30-64 | 33-76 | 76-115 |
| ScrewS(mm) | 24-55 | 36~65 | 46~95 | 50~110 | 110~165 |
| Rotary head Model | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 30XLCT |
| Working head model | 2XLCTA-50 | 4XLCTA-65 | 8XLCTA-90 | 14XLCTA-115 | 30XLCTA- |
| Weight(kg) | 2.4 | 5.0 | 9.3 | 16.9 | 30.9 |
| L(mm) | 196.4 | 245 | 300 | 361 | 430 |
| H1(mm) | 125.9 | 177 | 207 | 239 | 303 |
| H2(mm) | 102.3 | 135.7 | 170 | 203 | 272 |
| W1(mm) | 32 | 42 | 53 | 64 | 85 |
| W2(mm) | 51 | 66 | 83 | 99 | 131 |
