| Prod Model: |
14F1, 14A1, 3F1, 3A1, 6A2, 11V9, 1A1R |
| Markets: |
North America,South America |
| Material: |
Diamond |
| Abrasive: |
Superabrasive |
| Shapes: |
Edge Shape |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Tool Grinding |
Product Description

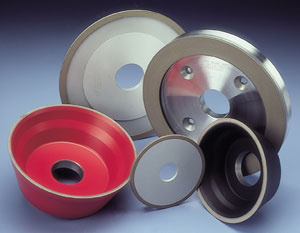

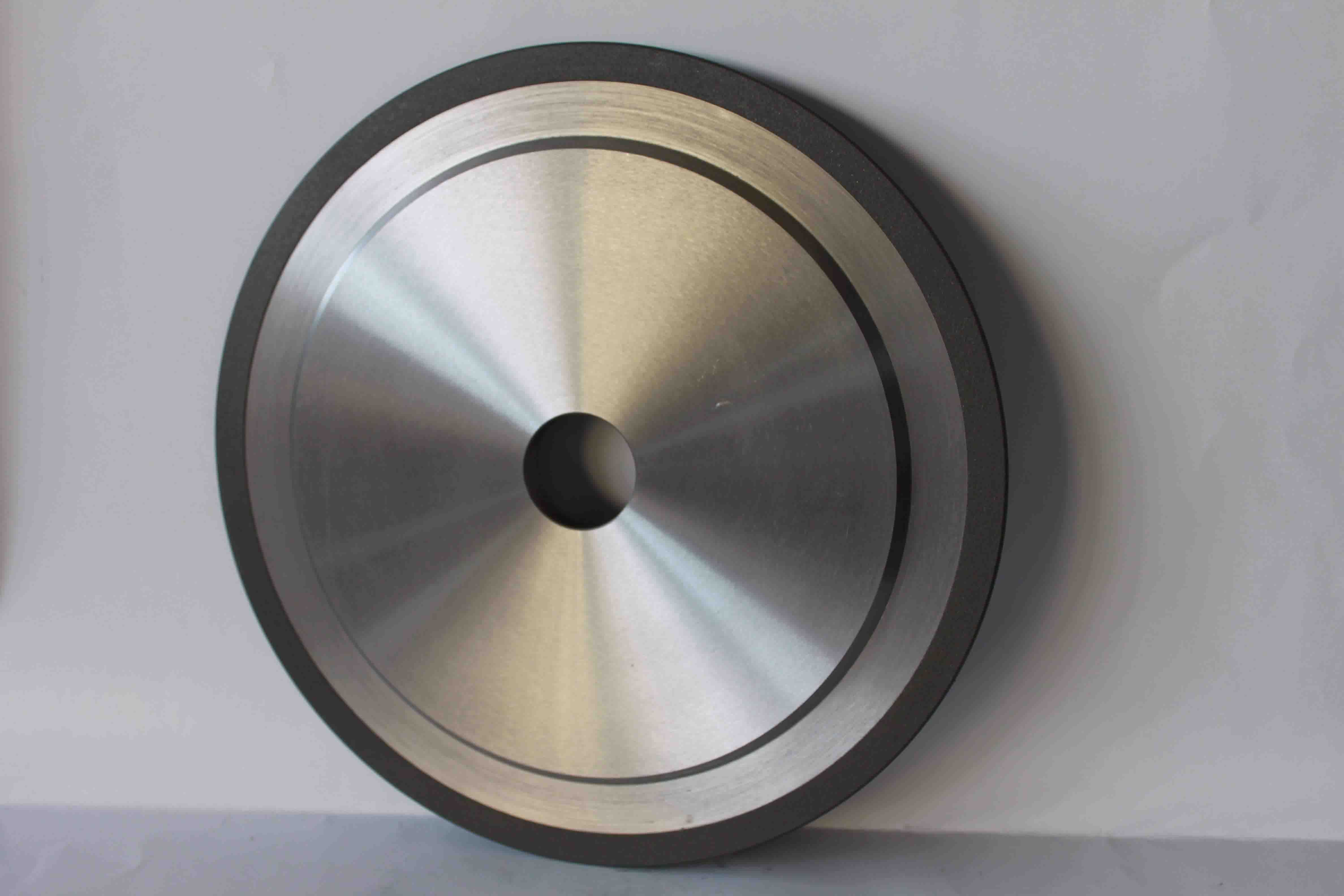

We specialise in the production of high quality profile grinding wheels, diamond & CBN Wheels for wood working industry, metal working industry. For example
Diamond Cutting wheels
Wheel for Wood working industry
Diamond wheel with Bakelite Body
Diamond / CBN wheel for Centerless Grinding
Vitrifed CBN points for internal Grinding
Diamond and CBN profile wheels offer aggressive material removal rates combined with superior finish. Available for all manual and CNC profile grinders using synthetic or oil coolant.
· Machines: Weinig, UT.MA, Schneeberger, Walter, Wadkin, Foley, SCMI, United, Tigra, Andi, Nielson
· Applications: Diamond for carbide or inlaid carbide/steel (Bak-Pak); CBN for HSS, Jonalloy, or Stellite
· Styles: 14F1R, 14A1R, 1F1R, 1A1R
Face Grind - Vollmer
FACE GRINDING WHEELS FOR VOLLMER EQUIPMENT
D4A2 115mm x 11mm x 32mm D 280 R 100 B 1/8 W=1/8
B4A2 125mm x 3/8 x 32mm CBN 180 R 75 B 1/16 W=1/8
D4V2 125mm x 11mm x 32mm D 280 R 100 B 2mm W=4mm
B4V2 125mm x 13mm x 32mm CBN 180 R 75 B 2mm W=4mm
D12V9 125mm x 12mm x 32mm D 240 R 100 B 1/16 S=20°
B12V9 120mm x 12mm x 32mm CBN 180 R 100 B 1/4 S=30°
Top Grind Vollmer
TOP GRINDING WHEELS FOR VOLLMER EQUIPMENT
D6A2 125mm x 18mm x 32mm D 180 R 100 B 1/4 W=3/16
B6A9 115mm x 18mm x 32mm CBN 150 R 75 B 1/8 U=1/4
D6A2 125mm x 21mm x 32mm D 180/400 R 100/75 B 3/8 W=5mm
B6A2 115mm x 18mm x 32mm CBN 120/220 R 100 B 1/4 W=5mm
Taizhou Sumeng Grinding Wheel Co., Ltd. (including Jiangsu Subei Grinding Wheel Factory Co. Ltd, Bondflex Abrasives Co Ltd, SUZHOU SAILI PRECISION TOOLS CO Ltd) is leading factory specialized in manufacturing bonded abrasive products and Superabrasives tool, large O. D. Reinforced Cutting Wheels, Crankshaft Grinding Wheels, Cutting and Grinding Discs, Diamond & CBN Wheels, TCT Saw Blades, Diamond Tools etc.
