| Prod Model: |
1A1, 11V9, 12V9, 1V1, 14A1 |
| Markets: |
North America,South America,Western Europe |
| Material: |
Diamond |
| Abrasive: |
Superabrasive |
| Shapes: |
Edge Shape |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Cutting |
Product Description

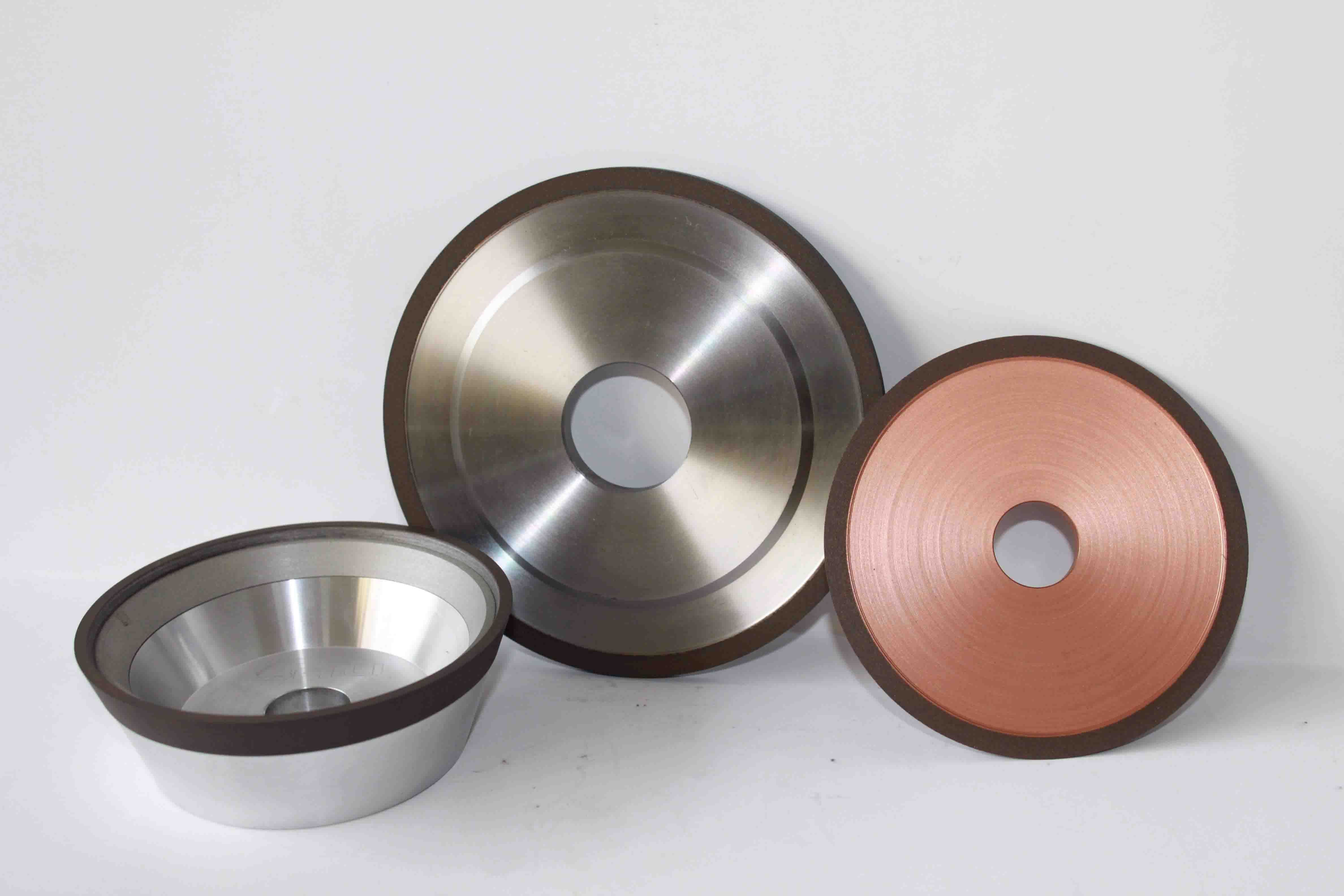

Diamond / CBN wheels for CNC Grinder
Resin bond, high quality diamond, special technology, used on 5-axis CNC grinders for the grinding of tungsten carbide or HSS alloy steel tools
Diamond / CBN Wheel for Profile Grinding
Profile diamond and CBN wheels for different materials such as hardened steels, tungsten carbide. Sharpness and accuracy, excellent form holding
Diamond / CBN Wheels with Ceramic Body
Resin diamond / cbn wheel with ceramic body, mainly for die industry, excellent heat resistance, deep feed and high stock removal

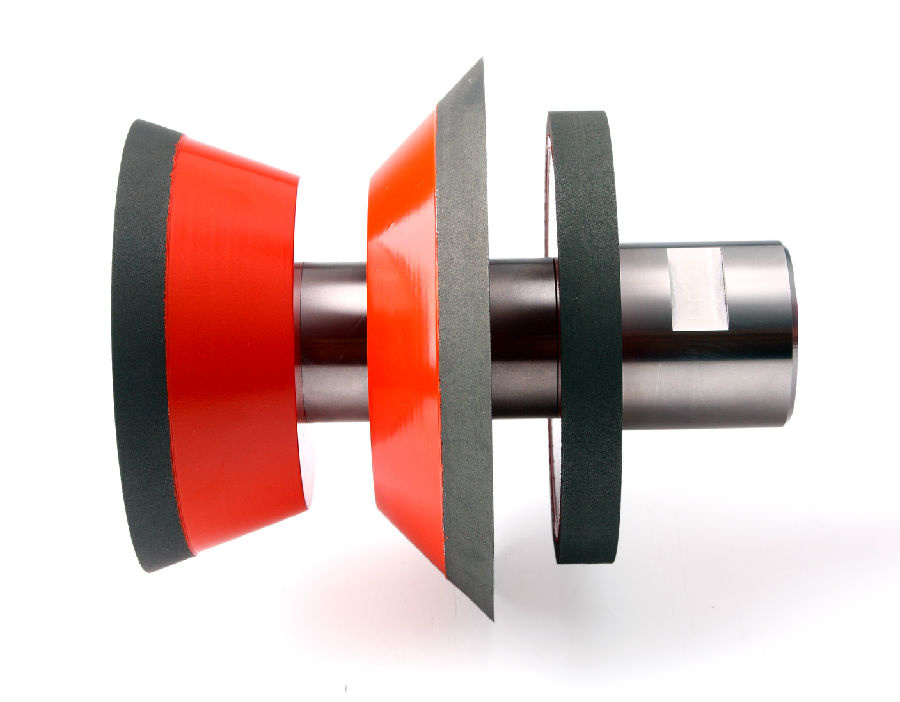

CBN Double Grinding Disc
CBN double-disc surface grinding wheel for bearing, gears, compressor parts, washer, oil pump parts, Automobile parts etc

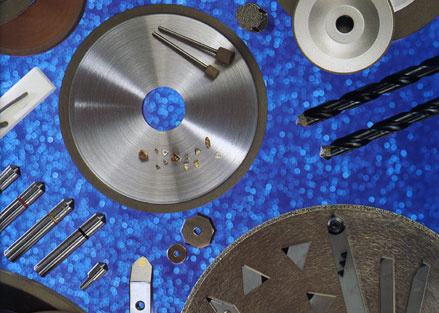

Surface and Cylindrical Grinding
Diamond & CBN wheels for precision surface and cylindrical grinding with advanced grindability and long life
Diamond /CBN wheels for Die industry
PG grinding wheel, mainly die industry, Slotting and grooving of metal or nonmetal materials, optical curve grinding. JV Grinding and some other precision grinding
Diamond Wheels with Bakelite Body
Diamond wheel with Bakelite body with good elasticity, used in woodworking industry, free cutting and long life

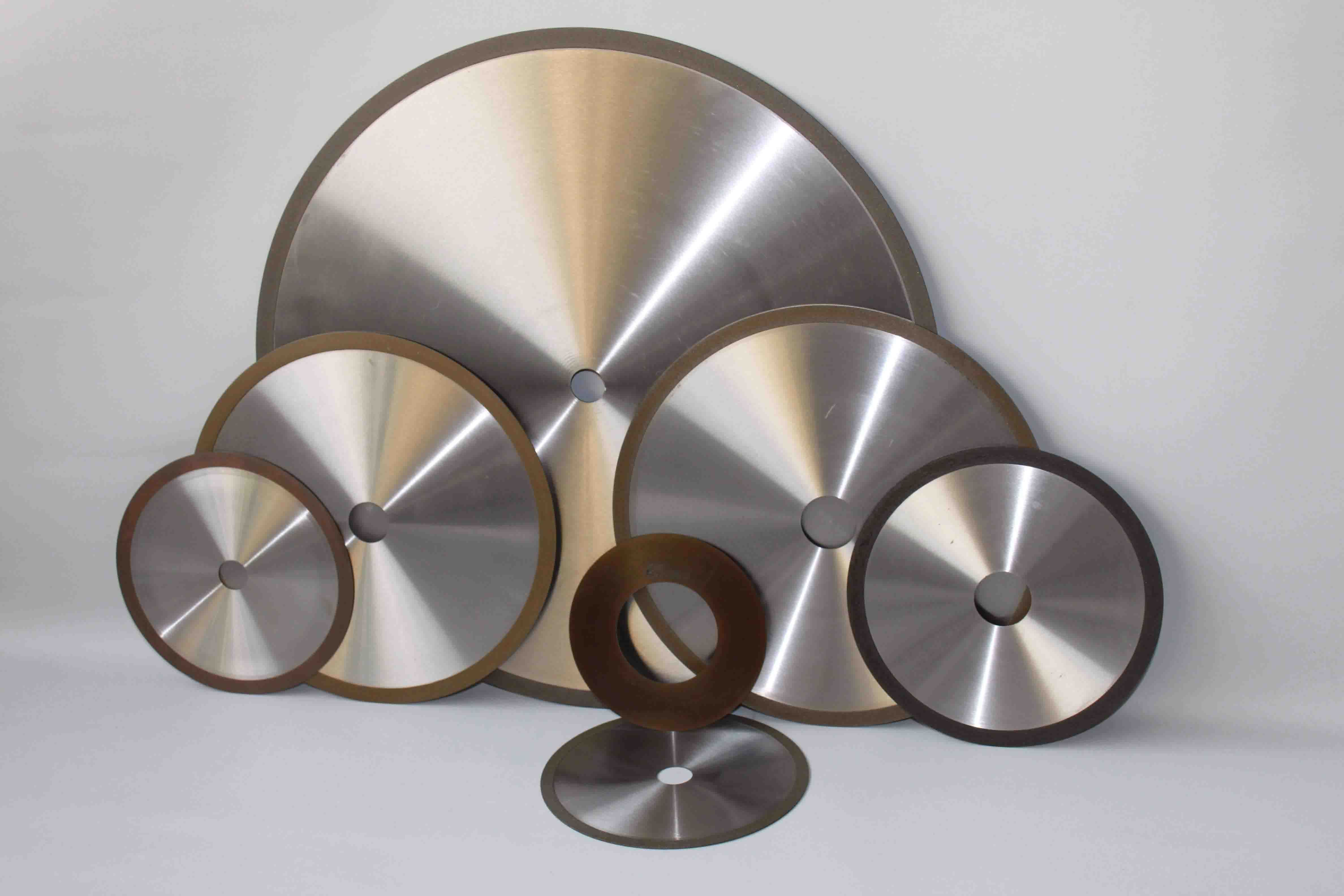

Diamond Cutting wheels
Diamond cutting wheel for tungsten carbide, alloys, quartz, ceramics, glasses, carbon fibre composites, fiberglass etc
CBN wheels for Paper industry
CBN wheels for the grinding of blades used on paper manufactring industry, HSS, hardened steel, alloy steel etc
Wheel for Wood working industry
Fluting Wheels
D1A1R 5 x 1/2 x 1-1/4 D 280 R 125 B 3/8
B1A1R 4 x 3/8 x 38mm CBN 220 R 100 B 1/4
D1FF1R 5 x 3/16 x 1-1/4 D 240 R 125 B 1/4
B1FF1R 6 x 3/16 x 2 CBN 180 R 100 B 1/4
D1V1R 5 x 1/2 x 1-1/4 D 280 R 125 B 1/4 30°
B1V1R 4 x 3/8 x 2 CBN 220 R 100 B 1/4 45°
D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°
B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°
Gashing Wheels
FLUTE GRINDING DIAMOND & GASHING WHEELS
D1V1R 5 x 1/2 x 1-1/4 D 280 R 125 B 1/4 30°
B1V1R 4 x 3/8 x 2 CBN 220 R 100 B 1/4 45°
BALL NOSE FLUTE GRINDING & GASHING WHEELS
D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°
B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°
Drill Pointing Wheels
BALL NOSE FLUTE GRINDING & GASHING WHEELS
D1V1SP 5 x 1/2 x 1-1/4 D 220 R 125 B 1/4 30°
B1V1SP 4 x 3/8 x 2 CBN 180 R 100 B 1/4 45°
DRILL POINTING AND STEP TOOL WHEELS
D11V2 5 x 1-1/4 x 1-1/4 D 280 R 100 B 1/4 W=1/2
B11C9 5 x 3/4 x 1-1/4 CBN 220 R 100 B 1/8 W=1/2
O. D. Clearance
D11V2 4 x 1-1/4 x 1-1/4 D 320 R 100 B 1/4 W=1/4 5°
B11V5 4 x 1-1/2 x 1-1/4 CBN 220 R 100 B 1/4 W=1/4 10°
D11V5 4 x 1-1/2 x 1-1/4 D 320 R 100 B 1/4 W=1/4 30°
B11V5 4 x 1-1/2 x 1-1/4 CBN 220 R 100 B 1/4 W=1/4 30°
CUTTER DIAMOND GRINDING WHEELS
D11V9 4 x 1-1/2 x 1-1/4 D 280 R 100 B 1/8
B11V9 5 x 1-3/4 x 2 CBN 180 R 100 B 1/8
D11V9 4 x 1-1/2 x 1-1/4 D 280 R 100 B 1/8 - REINFORCED CORE
B11V9 5 x 1-3/4 x 2 CBN 180 R 100 B 1/8 - REINFORCED CORE
D12V9 4 x 7/8 x 20mm D 320 R 125 B 1/16 U=3/8 45°
B12V9 6 x 3/4 x 2 CBN 240 R 100 B 1/8 U=3/8 30°
Taizhou Sumeng Grinding Wheel Co., Ltd. (including Jiangsu Subei Grinding Wheel Factory Co. Ltd, Bondflex Abrasives Co Ltd, SUZHOU SAILI PRECISION TOOLS CO Ltd) is leading factory specialized in manufacturing bonded abrasive products and Superabrasives tool, large O. D. Reinforced Cutting Wheels, Crankshaft Grinding Wheels, Cutting and Grinding Discs, Diamond & CBN Wheels, TCT Saw Blades, Diamond Tools etc.
