2-144 Cores Outdoor Singlemode G652D ADSS Aerial Fiber Optic Cable
| Price: |
US $ 1.99-2.5/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Outdoor G652D ADSS Aerial Fiber Optic Cable |
| Number Of Fiber: |
2cores to 144cores |
| Filling Rope: |
2-0 |
| Moisture Barrier: |
Water Blocking System |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
According to Customers Request |
| Sheath Material: |
PE/HDPE |
Product Description
2-144 Cores Outdoor Singlemode G652D ADSS All Dielectric self-supporting
Aerial Fiber Optic Cable
Cable Description

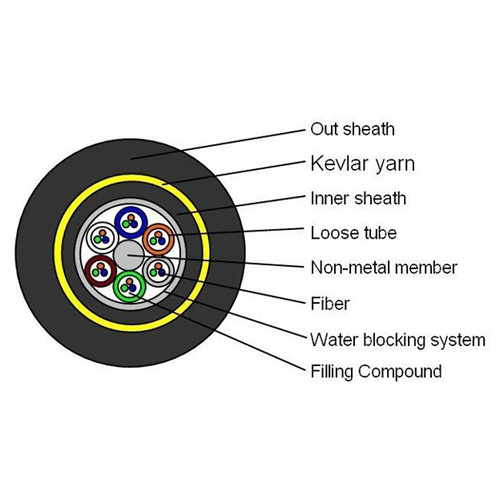

ADSS cable is loose tube stranded. Fibers,are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath. Application- The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
- For overhead power lines under 110kV, PE outer sheath is applied.
- For power lines equal to or over 110kV, AT outer sheath is applied.
- The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Characteristics- Can be installed without shutting off the power
- Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
- Large span lengths and the largest span is over 1000m
- Good performance of tensile strength and temperature
- The design life span is 30 years
Features:
Fiber Allocation Scheme| Fiber number | Tube number | Fiber per tube | Fiber type |
| 2-144 | 1-12 | 2-12 F/Tube | OS1 OS2
OM1,OM2, OM3,OM4 |
Cable construction details| Items | Description |
| Number of fiber | 2cores to 144cores |
| Filling rope | 2-0 |
| Moisture Barrier | Water blocking system |
| Central strength member | Material | FRP/FRP with PE |
| diameter | 2.1mm |
| Inner sheath | Material | PE |
| Loose tube | material | PBT |
| diameter | Ф2.0(outer/inner) |
| Tube-filling | material | Tube filling compound |
| filler | material | PP tube/ PVC tube |
| Cable filling | material | Cable filling compound |
| Outer sheath | material | PE/HDPE |
| diameter | 1.7+/-0.2mm |
Standard color of fiber and tube
The color code of the tubes and the individual fibers, shall be in accordance with the table as below:
| Standard Colour Identification |
|
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Mechanical characteristic
| Items | Cable diameter | Net Weight |
| 2cores to 60cores | 12±0.5mm | 140±5kg/km |
| 72cores | 13±0.5mm | 190±5kg/km |
| 96cores | 14.5±0.5mm | 220±5kg/km |
| 144core | 16.5±0.5mm | 240±10kg/km |
| Installation Temperature range | -15--+60 |
| Operation and transport temperature | -40-+70 |
| Rec.daily max working tension | 88kn |
| Max. Allowable working tension | 32.7kn |
| Modulus of elasticity | 37kn/mm2 |
| Min Bending Radius(mm) | operation | 240mm |
| installation | 390mm |
| Extra load | 0.5%-0.7% |
| Ice | 5mm |
| Wind speed | 35m/s |
Requirement for Order:- Fiber sort: Single mode G652,G655,G657, Multi mode 50/125,62.5/125,OM3,OM4.
- Fiber brand: YOFC, Corning, Fiberhome Fujikura, OFS etc.
- Sheath material: PE,LSZH( can be required).
- Sheath color: Black ,can be required.
- The fiber and tube color: according to stranded color, can be required.
- The cable Size: shall be in accordance with the table, can be required.
- Length of cable: generally is 2KM, can be required.
- Other requirement:can be negotiated.
Fiber characteristic| Fiber style | Unit | SM
G652D | MM
50/125 | MM 62.5/125 |
| condition | nm | 1310/1550 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤0.34/0.22 | ≤3.0/1.0 | ≤3.0/1.0 |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ..... | ..... |
| 1550nm | Ps/(nm*km) | ≤22 | ..... | ..... |
| Bandwidth | 850nm | MHZ. KM | ..... | >=400 | >=160 |
| 1300nm | MHZ. KM | ..... | >=800 | >=500 |
| Zero dispersion wavelength | nm | >=1302,
≤1322 | ..... | ..... |
| Zero dispersion slope | nm | ≤0.091 | ..... | ..... |
| PMD Maximum Individual Fiber | | ≤0.2 | ..... | ..... |
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ..... | ..... |
| Fiber cutoff wavelength λc | nm | >=1180,≤1330 | ..... | ..... |
| Cable cutoff wavelength λcc | nm | ≤1260 | ..... | ..... |
| MFD | 1310nm | um | 9.2±0.4 | ..... | ..... |
| 1550nm | um | 10.4±0.8 | ..... | ..... |
| Numerical Aperture(NA) | | ...... | 0.200±0.015 | 0.275±0.015 |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.10 | ≤0.10 |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.10 | ≤0.10 |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.08 | ≤0.10 |
| Attenuation uniformity | dB/km | ≤0.01 | ....... | ....... |
| Core diameter | um | ...... | 50±1.0 | 62.5±2.5 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding concentricity error | um | ≤0.6 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ..... | ..... |
Cable marking and cable reel marking
Cable marking
The cable sheath shall be marked with white characters at intervals of one meter with following information:
- Purchaser's name
- Cable type
- Fiber type and counts
- Year of manufacture
- Length marking
Notice: cable mark is available if requested by customer.
Cable reel:
Details given below shall be marked with a weather materials on both outer sides of the reel flange :
- Cable type and fiber counts
- Length of cable in meters
- Year of manufacture
Notice: shipping mark is available if requested by customer
Packing Informations - Packing material: Wooden drum
- Cable end protecting material: Block water cap.
- Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer
Our certificates :
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Testing Lab: | No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion ,Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
Fiber Optic Cable Mechanical Performance Testing Laboratory- Main Testing Type: Precision Test and Mechanical Test.
- Precision Testing Machine: EXFO OTDR, EG&G PMD-440,CD-400.
- Mechanical Performance Testing : Temperature, Impact, Tensile, Bending, Torsion, Flexing, Winding, Vibration, Water Penetration, Fusion Splicer, Water Penetration.
So a comprehensive test are available.
Our advantages: - Professional cable manufacturer.
- About 10 years experiences in cable industry.
- MOQ just 1Km.
- ISO, UL , ROSH,REACH...certifications.
- Can be customized production of fiber optic cable.
- Independent Lab with full set of testing machines.
- OEM for 3M , TYCO more than 5 years.
- Supply to Thai telecom, Doha airport, Doha telecom, Dubai telecom, Dubai telecom ,Slovenia telecom and Yemen telecom and other big projects.
