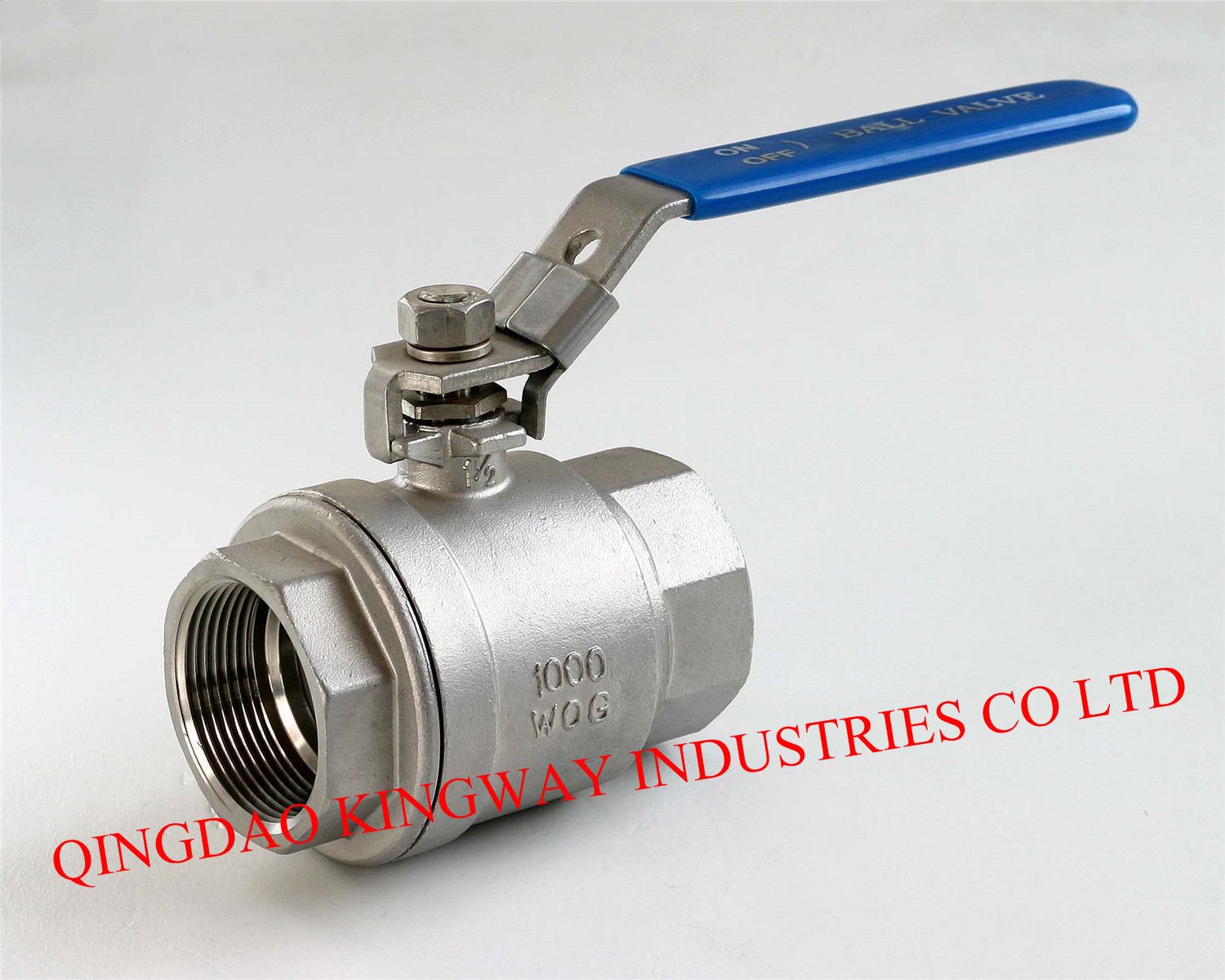

| Prod Model: |
RV-2A |
| Size: |
1/4"-2" |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
Product Description
FEARURES:
1.2000PSI/PN125
2.Reduce Port
3.Investment Casting
4.Blow-out Proof Stem
5.Sanitary Design
6.PED97/23/EC(c∈ 0035)Approved
7.Casting Approved AD2000-W0
8.Thread: ANSI B2.1 BS21. DIN2999/259,
ISO228-1, JIS B 0203, ISO7/1
9.Inspection Testing:API598, EN12266
MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL | QTY |
| 1 | BODY | CF8M | 1 |
| 2 | BALL SEAT | R-PTFE | 2 |
| 3 | BALL | CF8M | 1 |
| 4 | BODY GASKET | PTFE | 1 |
| 5 | CAP | CF8M | 1 |
| 6 | STEM | SS316 | 1 |
| 7 | THRUST WASHER | PTFE | 1 |
| 8 | STEM PACKING | PTFE | 2 |
| 9 | GLAND NUT | SS304 | 1 |
| 10 | HANDLE | SS304 | 1 |
| 11 | WASHER | SS304 | 1 |
| 12 | NUT | SS304 | 1 |
| 13 | LOCK DEVICE | SS304 | 1 |
| 14 | HANDLE COVER | PLASTIC | 1 |
DIMENSION TABLE
| SIZE | d | L | H | W | N.M | KGS |
| 1/4" | 9.5 | 54.0 | 41.5 | 110 | 4 | 0.24 |
| 3/8" | 9.5 | 55.0 | 43.0 | 110 | 4 | 0.22 |
| 1/2" | 12.7 | 63.0 | 46.5 | 110 | 5 | 0.32 |
| 3/4" | 17.5 | 72.0 | 56 | 151 | 8 | 0.60 |
| 1" | 22.2 | 86.7 | 62 | 151 | 10 | 0.89 |
| 1.1/4" | 25.4 | 93.0 | 66 | 170 | 14 | 1.21 |
| 1.1/2" | 31.7 | 102.5 | 75 | 188 | 18 | 1.75 |
| 2" | 38.1 | 119.0 | 80 | 188 | 25 | 2.68 |
Qingdao kingway Industries Co., Ltd. is one of the experienced manufacturerS & exporters
specialized in producing and exporting kinds of stainless steel valves as per international
standards such as API,ANSI,BS,DIN with the materials of CF8M,CF8,CF3,CF3M & WCB under
the quality system of ISO9001:200
