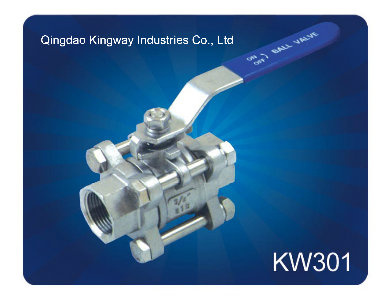

| Prod Model: |
KW301 |
| Size: |
1/4"-4" |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Flexible Ball Valve |
| Application: |
Household Usage |
Product Description
FEARURES:
1.1000PSI/PN63
2.Full Port
3.Investment Casting
4.Blow-out Proof Stem
5.Locking Device Handle(Option)
6.PED97/23/EC(c∈ 0035)Approved
7.Casting Approved AD2000-W0
8.Thread: ASME B1.20.1 ANSI B2.1 BS21. DIN2999/259,
ISO228-1, JIS B 0203, ISO7/1
9.Inspection Testing:API598, EN12266

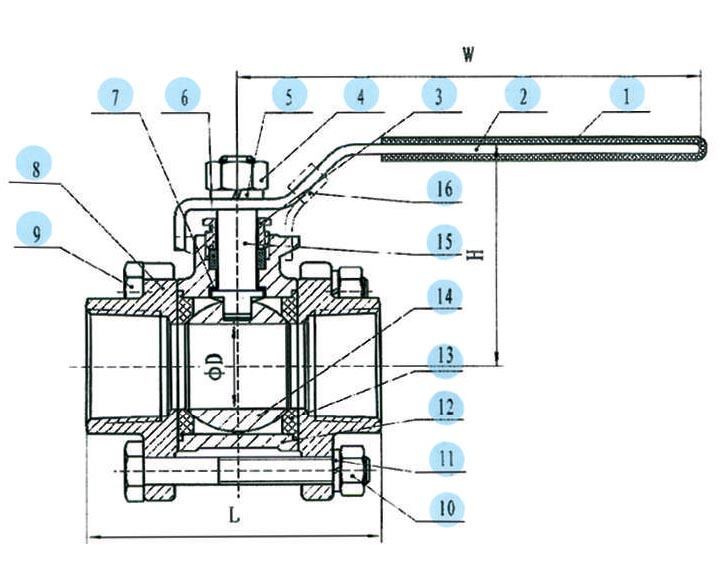

MATERIAL LIST
| ITEM | DESIGNATION | MATERIAL |
| 1 | PLASTIC COVER | PLASTIC |
| 2 | HANDLE | 304 |
| 3 | GLAND NUT | 304 |
| 4 | STEM NUT | 304 |
| 5 | THRUST WASHER | 304 |
| 6 | STEM PACKING | PTFE |
| 7 | THRUST WASHER | PTFE |
| 8 | CAP | CF8/CF8M |
| 9 | BODY | 304 |
| 10 | NUT | 304 |
| 11 | THRUST WASHER | 304 |
| 12 | BODY | CF8/CF8M |
| 13 | SEAT | RPTFE |
| 14 | BALL | CF8/CF8M |
| 15 | STEM | 304 |
| 16 | LOCKING | 304 |
DIMENSION TABLE
| ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" | 2.1/2" | 3" | 4" |
| D | 12.5 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| L | 72 | 72 | 80 | 80 | 85 | 105 | 113 | 132 | 170 | 186 | 220 |
| H | 45 | 45 | 50 | 52 | 65 | 70 | 85 | 93 | 116 | 125 | 180 |
| W | 105 | 105 | 126 | 126 | 144 | 144 | 189 | 189 | 224 | 224 | 251 |
Qingdao kingway Industries Co., Ltd. is one of the experienced manufacturerS & exporters
specialized in producing and exporting kinds of stainless steel valves as per international
standards such as API,ANSI,BS,DIN with the materials of CF8M,CF8 & WCB under
the quality system of ISO9001:2008.
Our advantage
1.We have more than 20 years experience in import and export
2.We Have Own Export License
3.We can do OEM and ODM products
4.The stable delivery time in 1-2 month
5.We market our products around the world---Canada,USA, Australia, Middle East, Southeast Asia
,Europe, South Africa and so on
6.Our price and quality is really competitive
