| Prod Model: |
ZS SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Zs Series: |
3/8''~2'' & Flange Type |
| Type: |
Direct Acting |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Application: |
Household Usage |
| Connection Form: |
Thread & Flange |
| Power Supply: |
AC & DC Solenoid Valve |
Product Description
Solenoid Valve

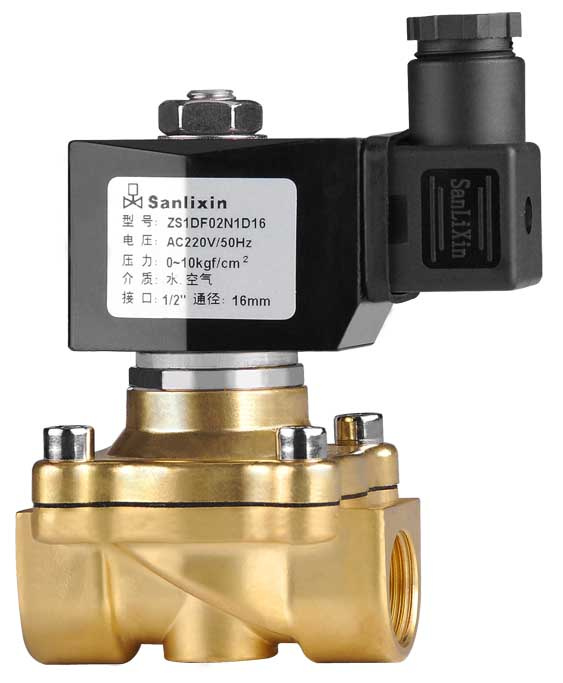

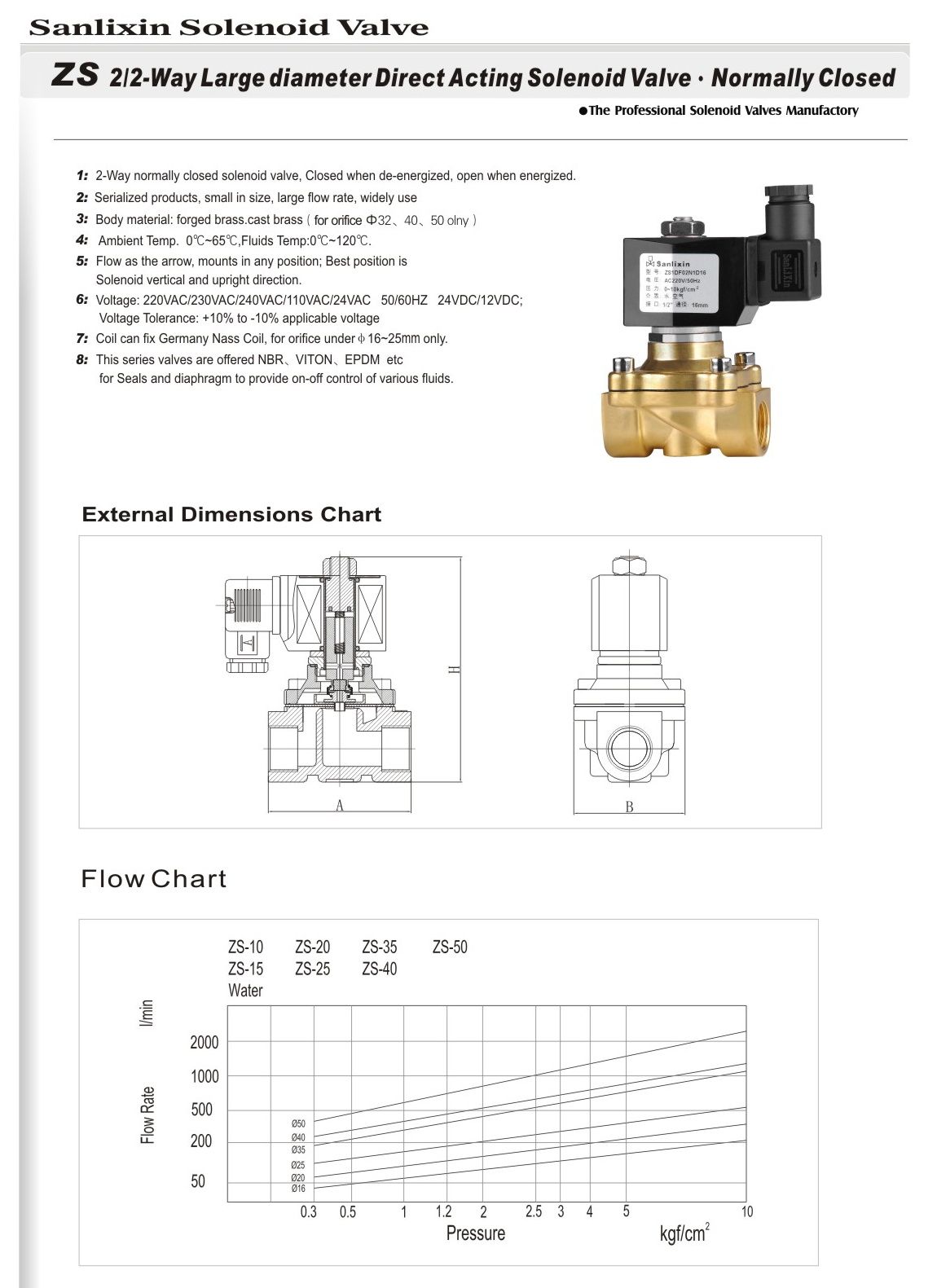

ZS Brass Series 2/2-way Zero Press Differential Solenoid Valve. Normally Closed
Body Material: Forged Brass\Cast Brass
Orifice: 16mm~50mm
Pipe Size: 3/8"~2"
Fluid Media: Water\Hot Water\Air\Gas\Oil etc.

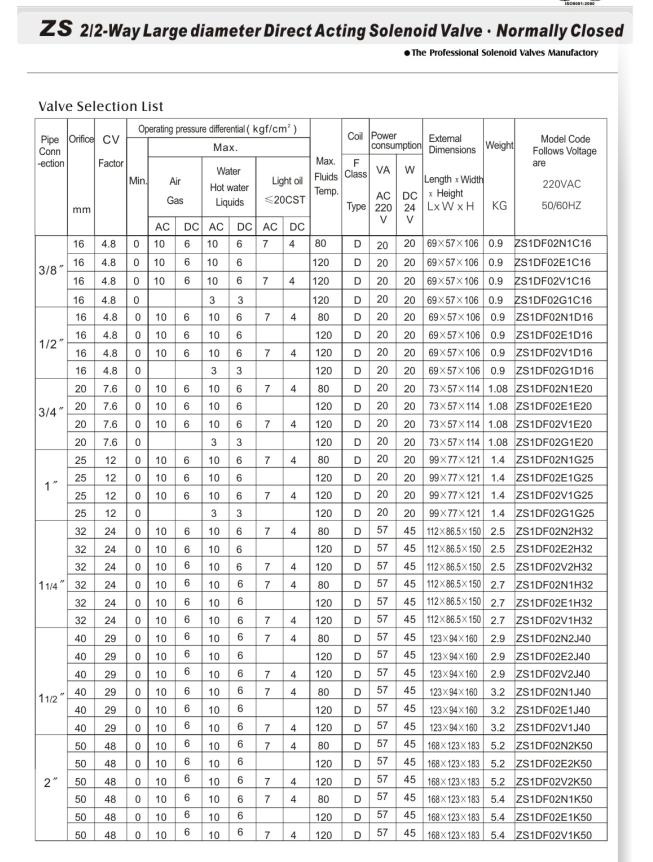

New | Pipe | Orifice | Pressure | Seals | Body |
| Model code | Size | (mm) | (bar) | Material |
| ZS1DF02N1C16 | 3/8 | 16 | 0~10 | NBR | forged brass |
| ZS1DF02N1D16 | 1/2 | 16 | 0~10 | NBR | forged brass |
| ZS1DF02N1E20 | 3/4 | 20 | 0~10 | NBR | forged brass |
| ZS1DF02N1G25 | 1 | 25 | 0~10 | NBR | forged brass |
| ZS1DF02N2H32 | 1 1/4 | 32 | 0~10 | NBR | cast brass |
| ZS1DF02N1H35 | 1 1/4 | 32 | 0~10 | NBR | forged brass |
| ZS1DF02N2J40 | 1 1/2 | 40 | 0~10 | NBR | cast brass |
| ZS1DF02N1J40 | 1 1/2 | 40 | 0~10 | NBR | forged brass |
| ZS1DF02N2K50 | 2 | 50 | 0~10 | NBR | cast brass |
| ZS1DF02N1K50 | 2 | 50 | 0~10 | NBR | forged brass |
Sanlixin since 1993, specializes in designing and manufacturing all kinds of fluid solenoid valve, We paicipate in the drafting of the national industrial fluid solenoid valve safety standards and have numbers of patents.
Media: Water, hot water, air, steam, gas, oil and acid alkali
Pipe Size: DN1.0 to DN300
Working pressure: Max. 450bar.
Fluid temperature: From ultra-low temp. To 300° C
Valve body: Brass, SS304, SS316, PP, PA6+, PTFE, Aluminum, Cast Iron Seals: NBR, EPDM, VITON, SILICA GEL, TEFLON, PEEK, HNBR
Our company has more than 50 series and passed 1509001: 2008 TUV, CE, NSF, Ex approval.
