| Prod Model: |
ZS 3/8''~2'' |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Application: |
Household Usage |
| Power Supply: |
AC or DC Solenoid Valve |
| Usage: |
on and off |
Product Description

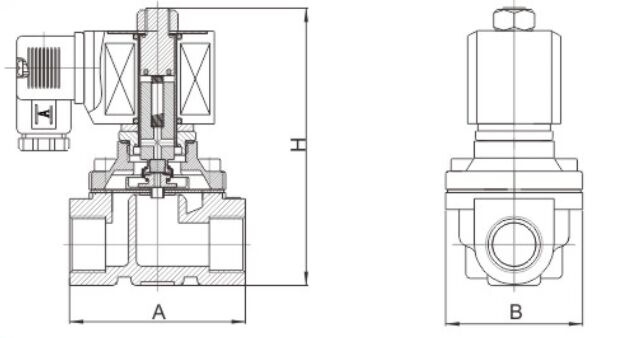

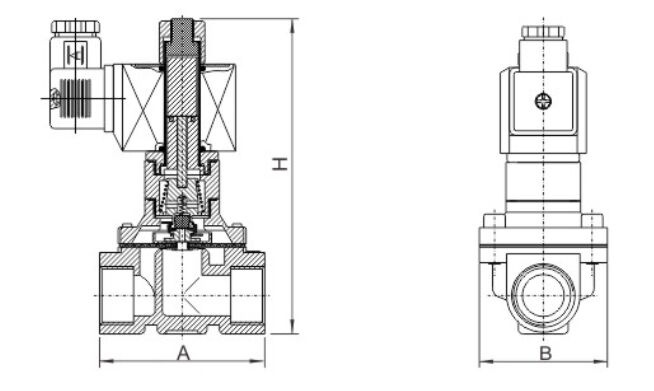

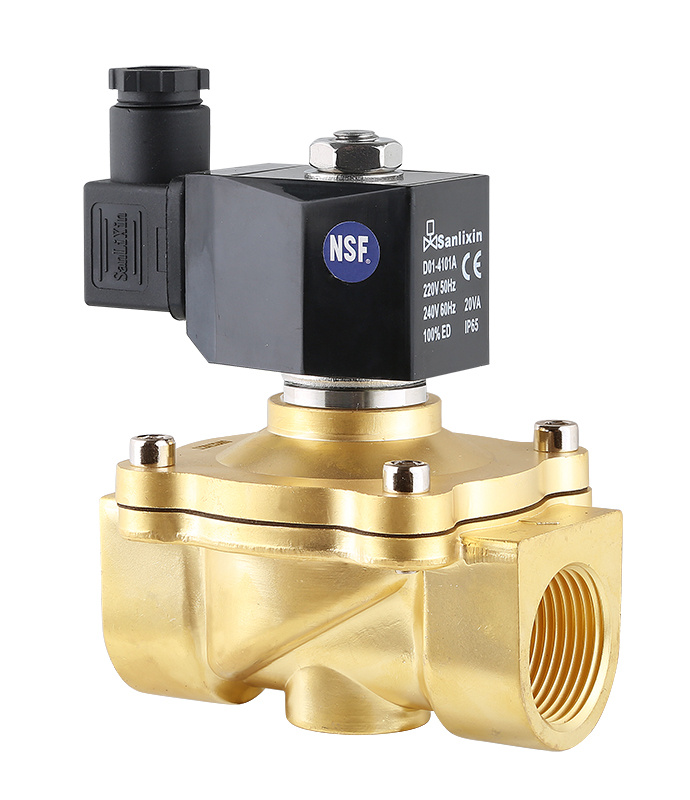

ZS DIRECT ACTING BRASS SOLENOID VALVE -- NSF certificate
NORMALLY CLOSED and NORMALLY OPEN
Temperaute: 120ºC
Voltage: AC220V,AC110V,AC24V,DC24V,DC12V, Other voltage ask our company
Pressure: AC: 0~10BAR DC: 0~6BAR Normally closed
AC & DC: 0~5BAR Normally open
Diaphragm: EPDM
Thread: NPT
Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.

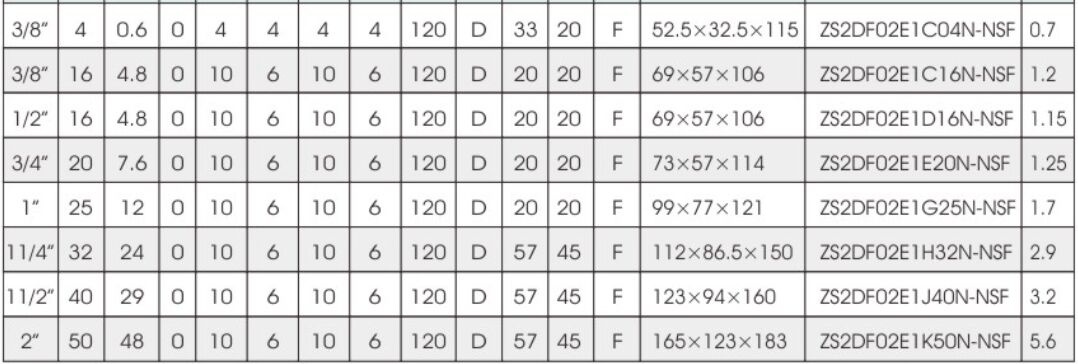

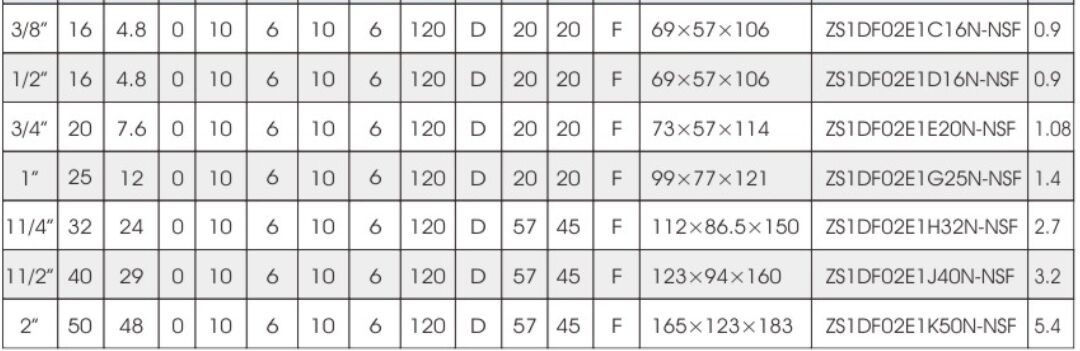

PIPE Orifice CV MIN MAX (AC & DC) Temp. Coil POWER Class size
Pressure ºC W (mm)
(bar) AC220V DC24V
Sanlixin since 1993, specializes in designing and manufacturing all kinds of fluid solenoid valve, We paicipate in the drafting of the national industrial fluid solenoid valve safety standards and have numbers of patents.
Media: Water, hot water, air, steam, gas, oil and acid alkali
Pipe Size: DN1.0 to DN300
Working pressure: Max. 450bar.
Fluid temperature: From ultra-low temp. To 300° C
Valve body: Brass, SS304, SS316, PP, PA6+, PTFE, Aluminum, Cast Iron Seals: NBR, EPDM, VITON, SILICA GEL, TEFLON, PEEK, HNBR
Our company has more than 50 series and passed 1509001: 2008 TUV, CE, NSF, Ex approval.
