| Prod Model: |
XY-200F |
| Weight: |
1950kg |
| Warranty: |
12months |
| Application: |
Various Soft and Hard Rock, Water Well Drilling Ri |
Product Description

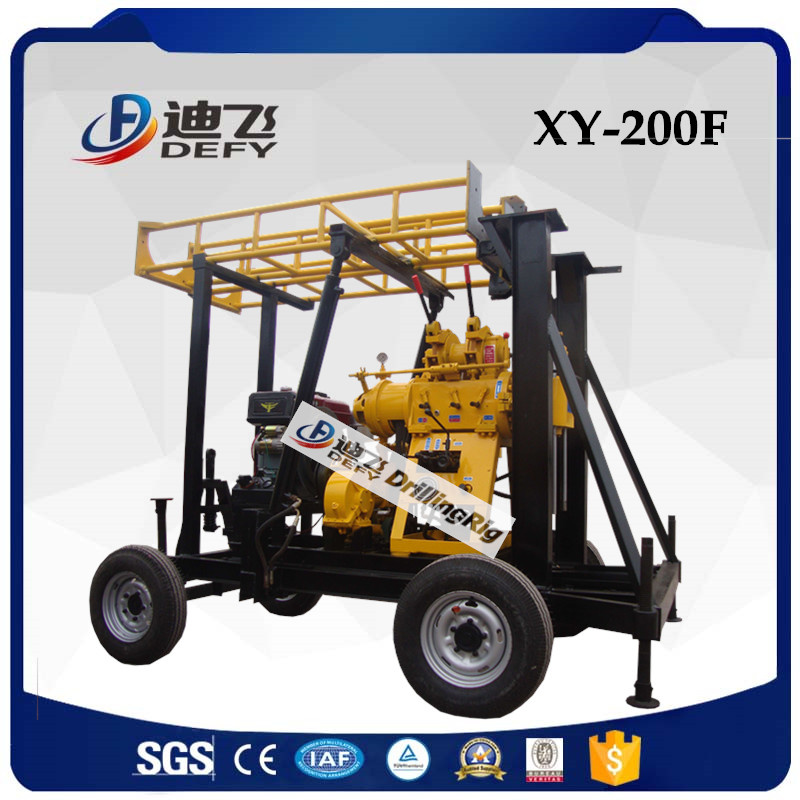

Hot sale 200m XY-200F portable hydraulic boring machines for sale
*BW~160 Independent mud pump, more powerful;
*Drill tower integrated on drilling rig, compact structure, no need to install tower separately;
*Four hydraulic stabilizer legs for working stability;
*Can drill up to 200m with 400-75mm caliber in mud, soil, clay, granite, hard rock sand so on;
* Widely for water well project, irrigation well, big water conservancy, coring, soil test, etc.
* Three wing bit for soil , sand layer, alloy bit for soft rocks, PDC diamond bit and Tricone bit for hard rocks.
* Trailer type, crawler type, tractor type for your choice.
Main Features
(1) With integrative hydraulic drilling tower, supported by two high strength oil cylinder
(2) The chassis used trailer type, has wheels and traction, can be pulled directly by a tractor or truck
(3) Chassis have four high strength thread legs (or hydraulic legs) ,quick and convenient to install
(4) Uses the electric-start diesel engine, greatly reduces the labor intensity of operators
(5) The machine is equipped with a complete set of independent BW - 160 mud pump
Technical Parameter
| 1,Main parameter | |
| Drilling depth | 200m |
| Maximum borehole caliber | 400mm |
| Minimum borehole caliber | 75mm |
| Diameter of Drill pipe | 42,50,60mm |
| Drilling angle | 90°~75° |
| Weight(Not include power) | 810kg |
| Unity machine dimension | 2750*950*1600mm |
| 2.Vertical Spindle | |
| Spindle rotating speed | 64,128,287,557r/min |
| Spindle stroke | 450mm |
| 3.Hoist | |
| Max. single line lifting capacity | 1600kgf |
| Reel lifting speed | 17,35,75,151m/s |
| Steel wire rope diameter | 12mm |
| Steel wire rope volume | 26mm |
| Hug floodgate diameter | 245mm |
| Hug floodgate belt width | 70mm |
| Movable distance | 400mm |
| 4. Mud pump | |
| Type | BW-160 |
| Type | Horizontal Single Cylinder with 2 purpose |
Max. Discharge | Diesel engine:160L/min |
| Electrical Motor:140L/min |
| Max. Pressure | 1.2MPa |
| Work Pressure | 0.7MPa |
| 5. Power | |
| Diesel engine | 22HP |
| Electric | 15KW |
| 6. Drilling tower | |
| Type | Integrated on drilling rig |
| Control system | Hydraulic |
| 7. Trailer chassis | |
| Type | 4 wheels |
| Support legs | Mechanical or hydraulic type |
Work site
Certifications
Our Service
Pre-Sales Service
*We have QC department, before shipping, goods will be strictly checked.
After-Sales Service
*24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;
