| Price: | US $ 10-13/Piece |
|---|---|
| Trade Terms: | FOB,FCA |
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 3.2.3.1.7 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 8 Inch |
| Manufacturing Arts: | Welding |
| Kind: | Diamond Laser Saw Blade |
| Usage: | Concrete Cutting |
| Saw Blade External Diameter: | 200mm |

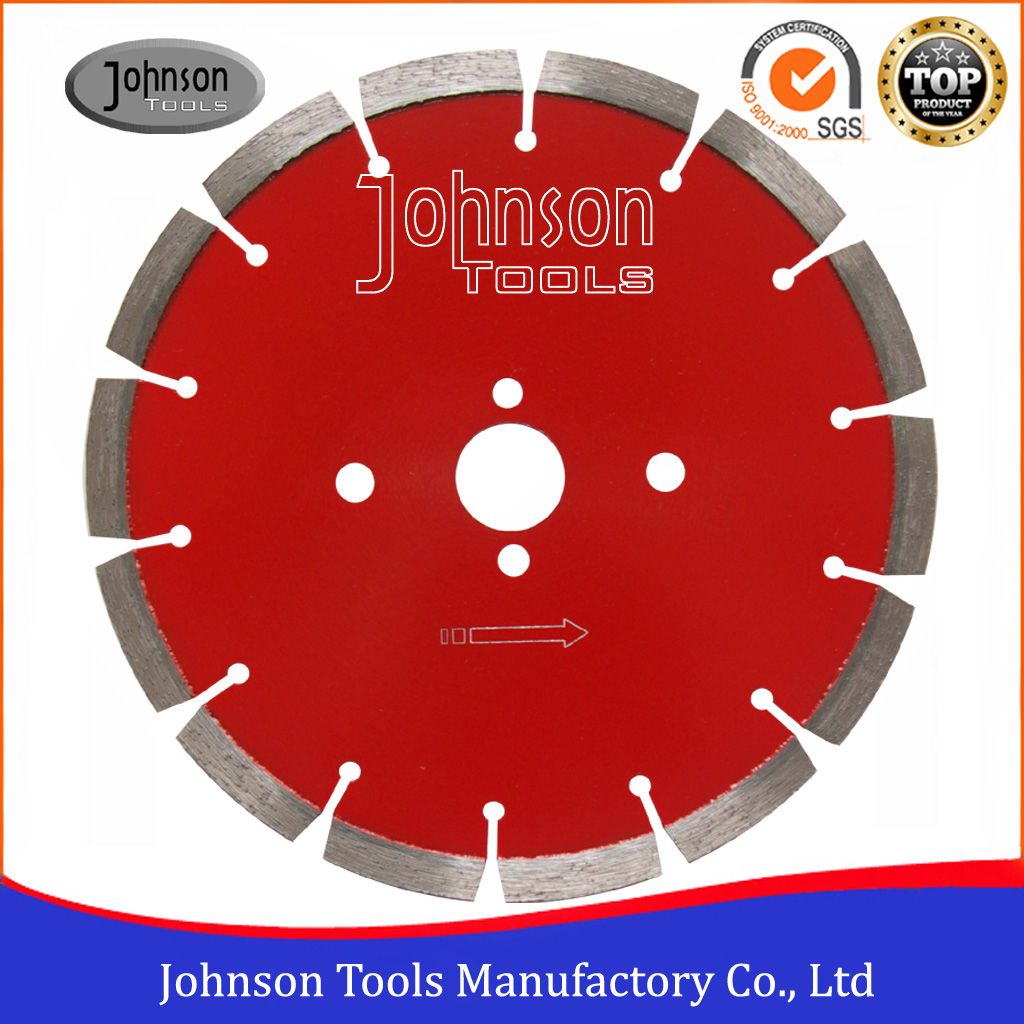

200mm Diamond Saw Blades for Fast Cutting Reinforced Concrete

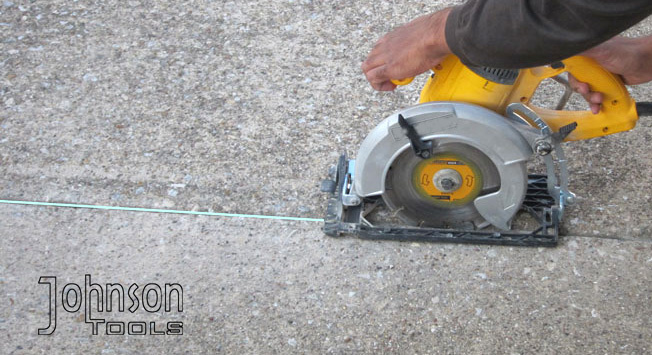

8" Laser welded Diamond Blade designed for low and high horse high speed hand held saws and Angle grinders.
Wet or dry cutting for reinforcement concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers and so on.
Undercut protection to prevent segment loss during cutting. Maximum cutting performance and longer life via tough wear-resistant segments.
1) High precision and speed for cutting reinforced concrete
2) Cutting reinforced concrete is not restricted by the construction site, environmental protection, duration, and other conditions for safety reasons, to break the traditional construction method after removal of gas cutting picks or directional blasting, which does not affect the surrounding normal traffic, short construction period, safety factor advantages.
| Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
| 8" | 200 | 40 | 2.4 | 7/10/12 | 13 |
| Inch | Diameter (mm) | Teeth length (mm) | Teeth thickness (mm) | Teeth height (mm) | Teeth number (nos) |
| 4" | 105 | 32 | 2.2 | 7/10/12 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12 | 9 |
| 5" | 125 | 31 | 2.2 | 7/10/12 | 10 |
| 6" | 150 | 34 | 2.2 | 7/10/12 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12 | 14 |
| 9" | 230 | 37 | 2.6 | 7/10/12 | 16 |
| 10" | 250 | 40 | 2.6 | 10/12/15 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 26" | 650 | 40 | 4.4 | 10/12/15 | 42 |
| 28" | 700 | 40 | 5.0 | 10/12/15 | 40 |
Each laser saw blade is packed in white box, then 50pcs put in an export standard carton, gross weight per carton is limited within 23kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Client Feedback

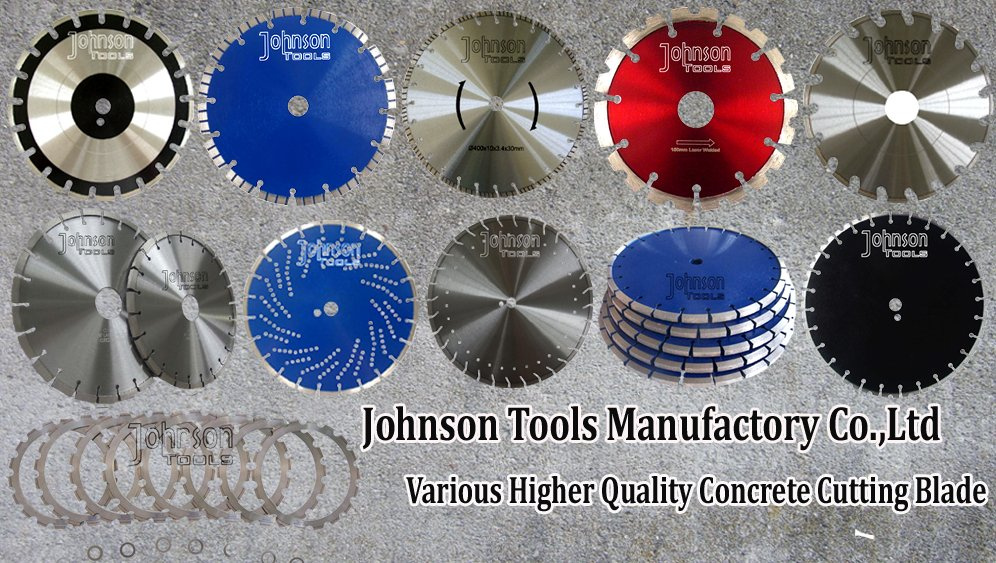

7. Our Related Products
8. Certification
9. Our Exhibition
10. FAQ
Q: How to place order to your company?
1.Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2.Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3.Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4.Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5.After-Sale Service: Track the goods, learn the products' performance.
6.Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
More information about our products, welcome to visit our website www.johnsontoolscn.com and www.diamondsaw-blade.com, you will get more than you can see.
