| Price: | US $ 38/Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Meter |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | HUAZUAN111 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: | Wire Saw for Cutting Granite Marble Concrete |
| Hardness: | Soft, Middle, Hard |
| Cutting Speed: | 10-40 |
| Wire Speed(M/S): | 30-40 |
| Technology: | Sintered, Electroplated, Vacuum Brazed |
| Certification: | ISO9001:2000, SGS |
| Beads Diameter: | 7.2-11.5mm |
| Price: | Competitive |
| Grade: | a |
| Production Processes: | More Than 70 Processes, 100% Quality Testing |
| Saw Type: | Chain Saw |
| Application: | Granite,Marble,Concrete |
| Type: | Fixed |
| Power Source: | Hydraulic |
| Brand: | Huazuan |
New Arrival High Precision Diamond Wire Saw For Granite Marble Profiling
| Application | 1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting 2.For Cutting Reinforce Concrete |
| Diameter Of Wire Saw | 7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
| Technology | Sintered,Electroplated,Vaccum Brazed |
| Coating Fix Injection | Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring |
| Beads/Meter | 40/37/33/28/26pcs |
| Attention | l. Checking the saw regularly and adjust timely. 2.Checking the pearl abrade regularly,Avoid the eccentric wear 3. Checking the joint regularly and adjust timely. 4. The tension of ropes is 250-300kg(Φ4-5mm ropes) 5.Water supply is around 15-25L/min |
| Feature | 1.Very less breakage ratio when using therefore increase working lifetime. 2.Automatic production ensures stable quality performance. 3.Safe, high efficiency and environment protecting. |

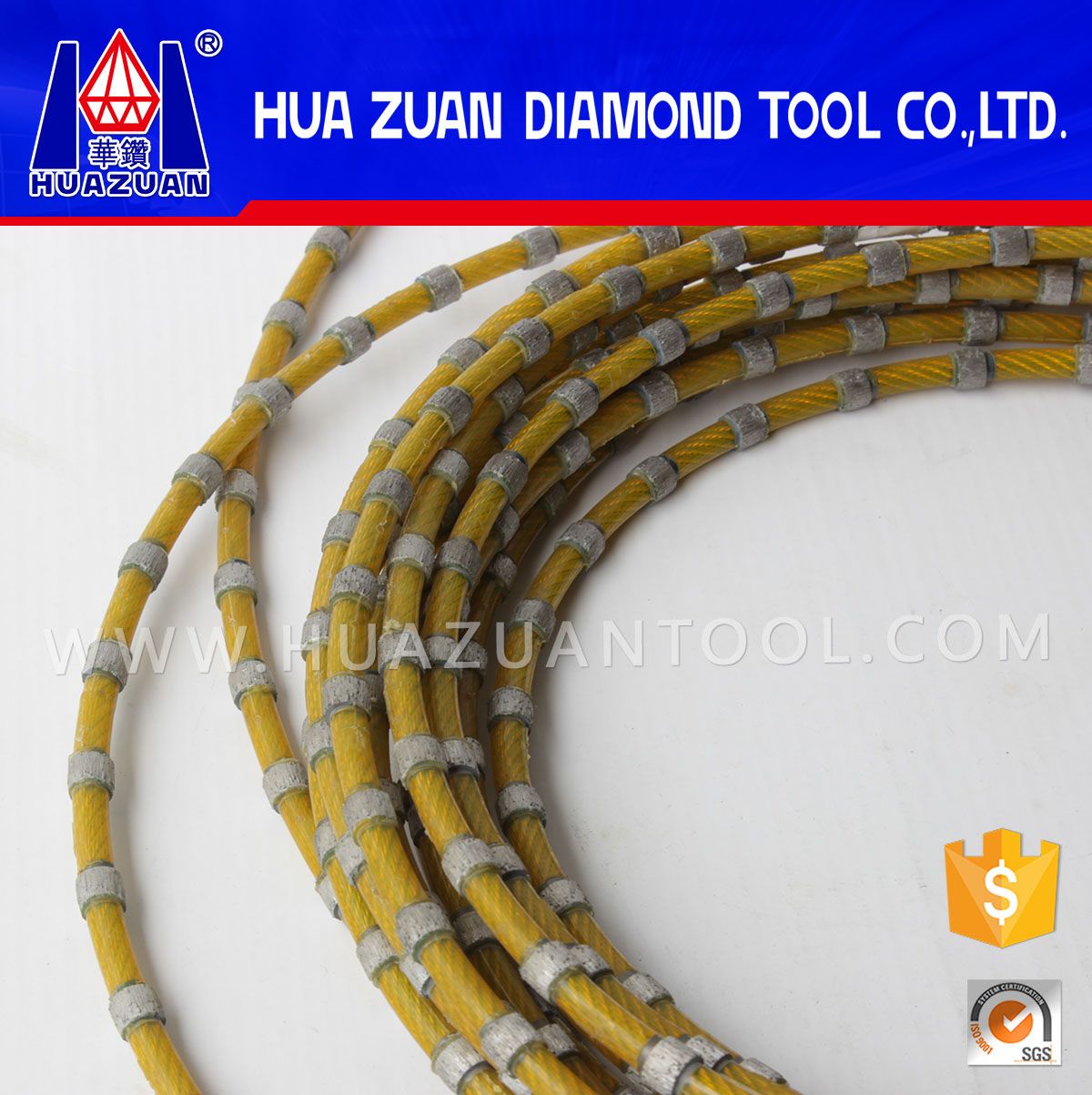

Product photo:

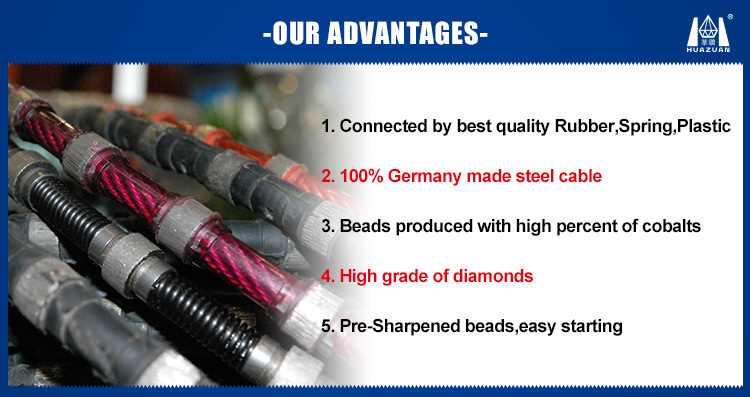

Our Advantage:
There are some parameter for your reference:
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
| Φ7.2mm Φ8.8mm Φ9.0mm | 37 | Rubber | Soft | 25-30 | 10-15 | 14-20 |
| Middle | 22-25 | 5-10 | 8-12 | |||
| Hard | 18-22 | 4-8 | 6-10 | |||
| Φ7.2mm Φ8.8mm Φ9.0mm | Plastic | Soft | 25-30 | 10-15 | 14-20 | |
| Middle | 22-25 | 5-10 | 8-12 | |||
| Soft | 18-22 | 4-8 | 6-10 |
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
| Φ8.8mm Φ11mm Φ11.5mm | 33 | Plastic Plastic + Spring | Soft | 35-40 | 20-36 | 42-60 |
| Middle | 30-35 | 16-26 | 36-54 | |||
| Hard | 28-30 | 12-20 | 18-24 |
*Other specifications are available upon request.
Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.
We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients,suppliers and staffs.In recent years,company make and practice a strategic plan to reinforce a high quality production system,create a consultant service team" and reached great success.
At present,China diamond tool constantly embody the competitiveness in the world ,we expect to contribute ourselves to change the poor quality image of China diamond tool in the world with our effect.
Contact Us:
Fujian Quanzhou Huazuan Diamond Tools Co., ltd.
Address:Miaoxia, Fengzhou, Nanan, Quanzhou, Fujian province, China 362333
Phone:0595-86780371
Fax number:0595-86780372
Mobile: 0086 15905012436
Your inquiry will be answered within 24hours, wishing to be your long term partner.
Please do not hesitate to contact with me, we will do our best for you.
