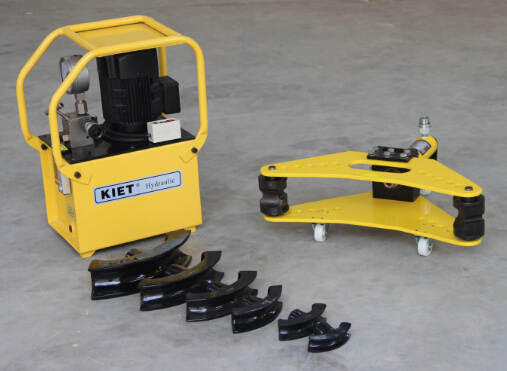

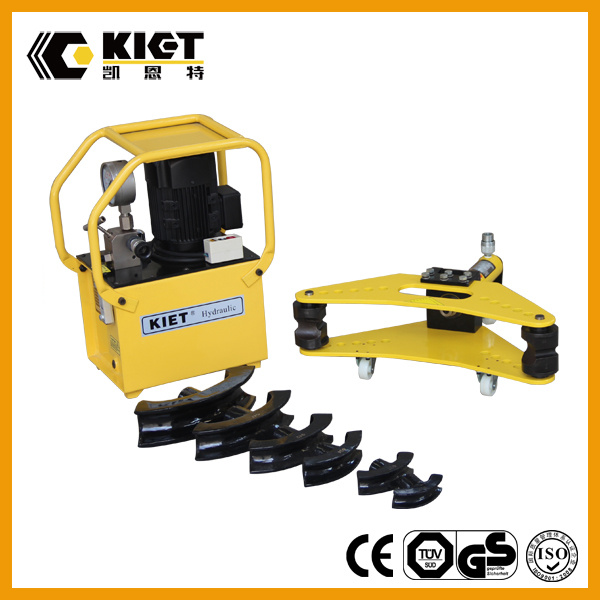

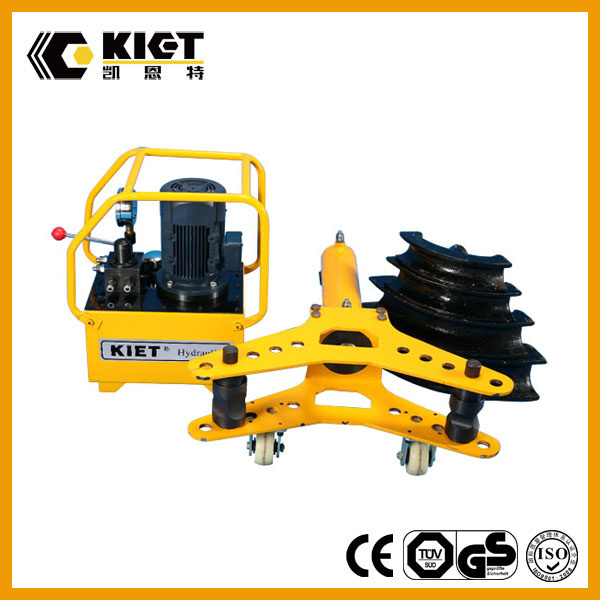

2017 Customized Split Type Electric Hydraulic Pipe Bender Machine
Price: |
US $ 500-1000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
KET-DWG |
Application: |
Pipe Bending |
Color And Size: |
Customized |
Warranty: |
1 Year |
Power: |
Hydraulic |
Plating: |
Anti-Corrosion Hard Cr |
Product Capacity: |
1000pieces/Month |
Working Pressure: |
70MPa |
Feature: |
Efficiency |
Bendind Range: |
20-60-76-159mm |
Bending Radius: |
4xpipe Diameter |
Product Description
2017 Customized Split Type Electric Hydraulic Pipe Bender MachineProduct Features1. A whole set includes Hydraulic Pipe Bend, Electric hydraulic Pump, Hydraulic Hose, Models, Fixed Plung-pin.
2. Double acting Hydraulic Cylinder, quickly reset, improving the bending efficiency.
3. Piston plated hard Cr to prevent scartches and corrosion, surface painted to improve the resistance and corrosion.
4. Lightweight heat-trated steel molds and steel frame make bendind pipe smooth wrinkle-free.
5. Size 4"-6" Electric Hydraulic Pipe Bender, equipped with Double Acting Hydraulic Cylinder which reset quickly, works more efficiently with Electric Pump.
Parts of the parameterModel Number | Bend Ranger (mm) | Bend Radius (mm) | Thickness (mm) | Capacity (KN) | Motor Power (KW) |
KET-DWG-60 | 22-60 | 4 X Radius | ≤ 4 | | 0.75 |
2 pcs Die,2 pcsPin, Bend tires: 22 27 34 42 48 60 |
KET-DWG-76 | 27-76 | 4 X Radius | ≤ 10 | | 0.75 |
2 pcs Die,2 pcsPin, Bend tires:27 34 42 48 60 76 |
KET-DWG-108 | 27-108 | 4 X Radius | ≤ 10 | | 2.2 |
2 pcs Die,2 pcsPin, Bend tires: 27 42 48 60 76 89 108 |
KET-DWG-159 | 76-159 | 4 X Radius | ≤ 10 | | 2.2 |
2pcs Iron mat,2 pcs Die,2 pcsPin, Bend tires: 76 89 108 133 159 |
Company Information

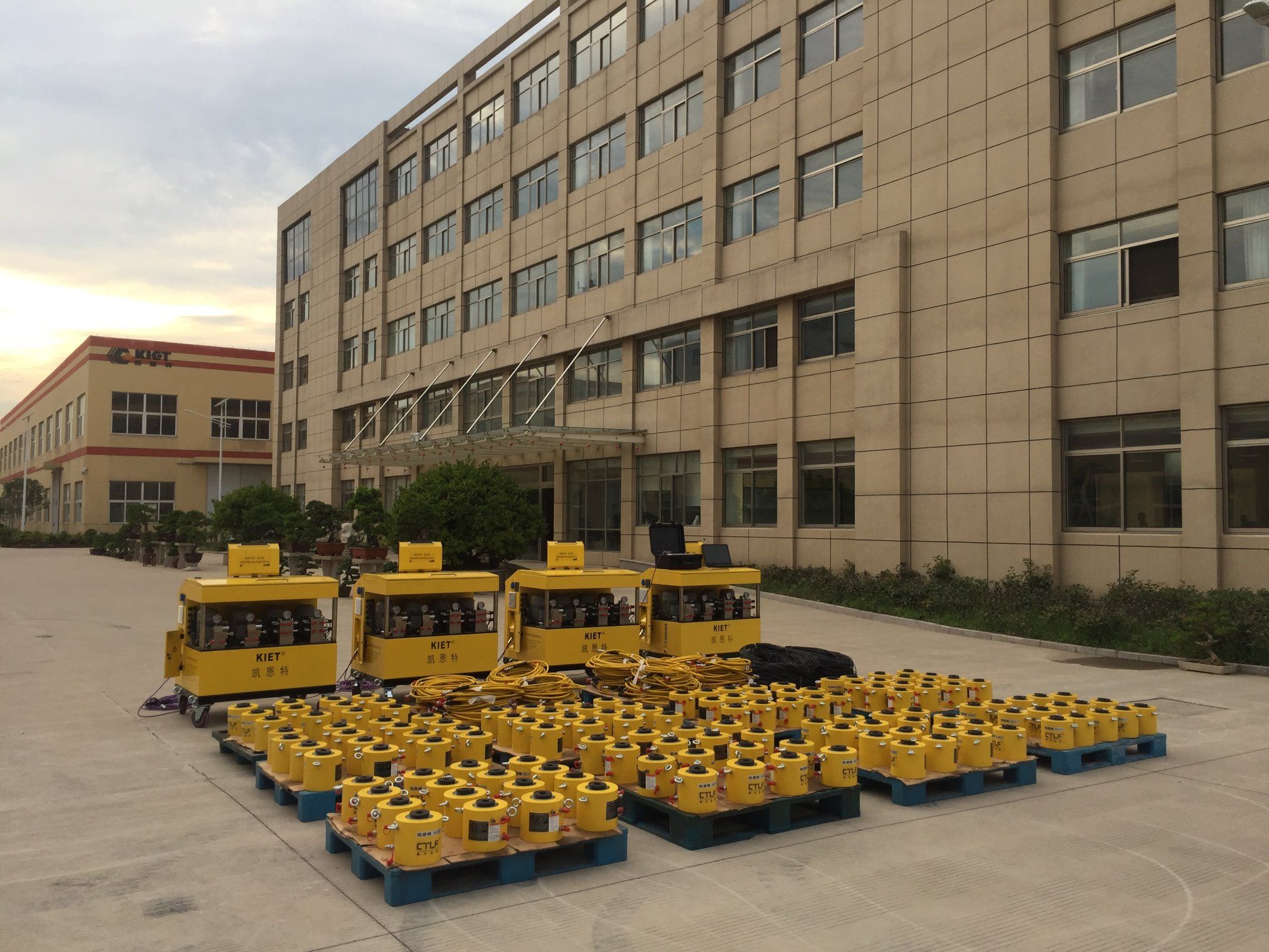

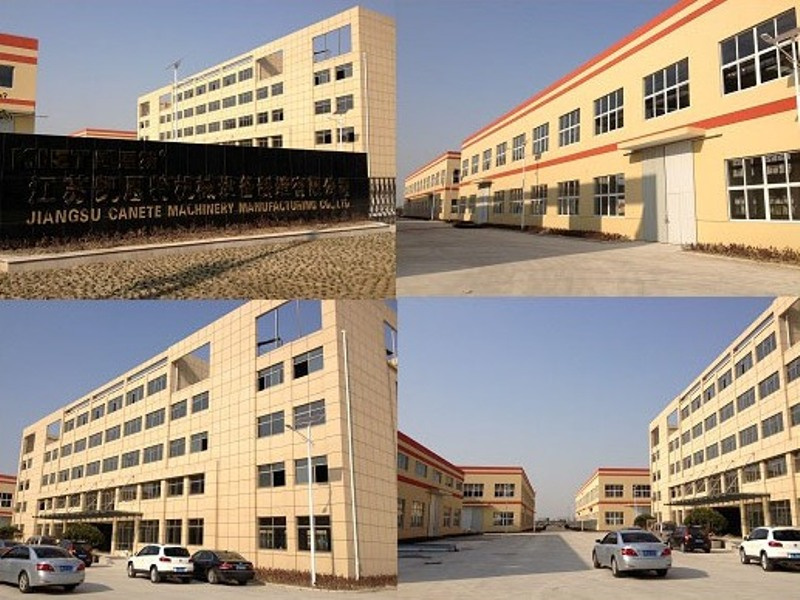

Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Packaging & Shipping:
We provide Aluminum Alloy Lightweight Box , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.
FAQ
Q1: How can contact sales?
A1: Please call: +86-021-68565866 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.Certification
Contact Person: Handy Han
Mobile: +86 1800-5263-911
Office: +86-523-81569666
Fax: + 86-523-86186999/8618338
Website:www.kaientehydraulic.com
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
