| Price: | US $ 15000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | JBP920H |
|---|---|
| Drill Deep: | 25-30m |
| Drill Hole Dia.: | 80-125mm |
| Rock Rigidity: | F=6-20 |
| Rotary Speed: | 0-70rpm/Min |
| Engine: | Yc4d(58kw 2200r/Min) |
2017 Hot Sales -Compressor driven DTH Crawler Pneumatic Drilling Machine JBP920H

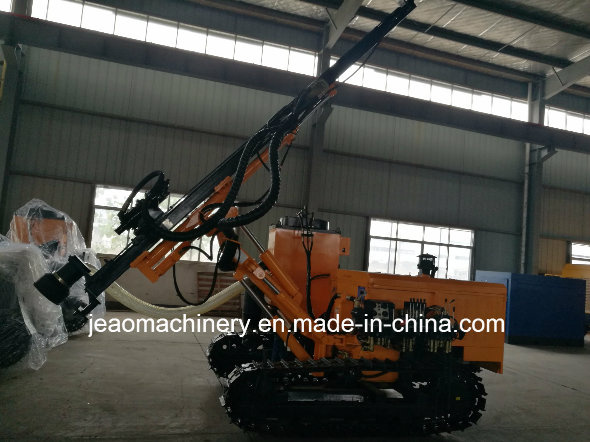

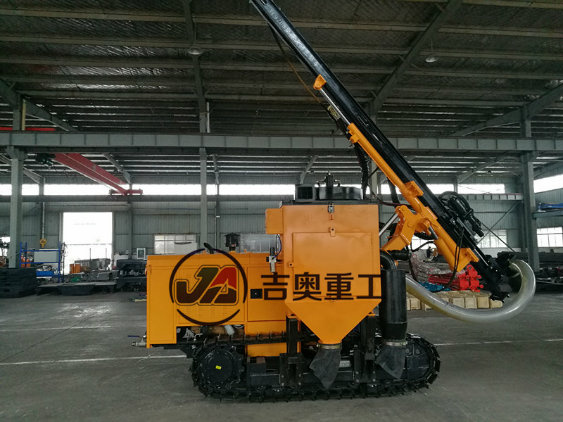

PHOTO SHOW CASE :

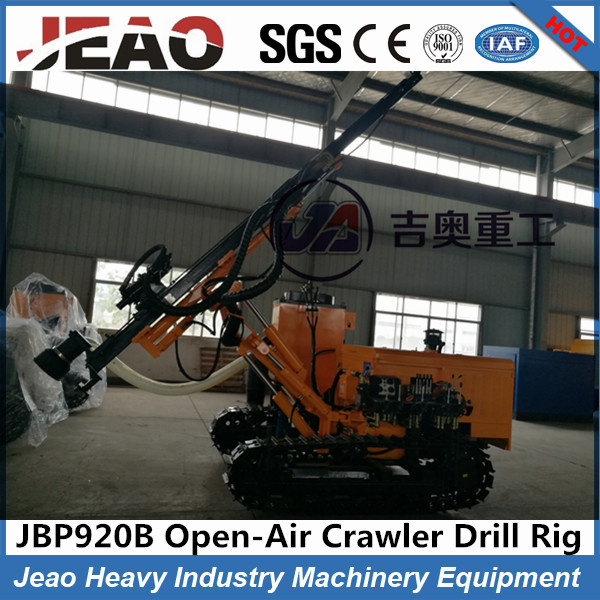

The Usage of JBP920B Crawle Drill Machine
1. This series machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.
2. This series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .
Specification of JBP920B Crawle portable drill machine
| Model | JBP920H |
| Rock rigidity | f=6-20 |
| Dia. Of Hole | φ80-125mm |
| Drilling depth | 25m |
| Rotation speed | 107RPM |
| Rotation torque | 1400Nm |
| Lifting capacity | 15000N |
| Feeding method | Oil cylinder&chain |
| Feeding distance | 3000mm |
| Traveling speed | 0-1.8KM/H |
| Climb ability | 30° |
| Ground clearance | 290mm |
| Total Weight | 4200KG |
| Dimension (mm) | 4400x2200x2050 |
| Sliding carriage pitch angle | UP:5° DOWN:135° |
| Sliding carriage swing angle | L.:100° R.:45° |
| Drill boom(arm) pitch angle | UP:25° DOWN:50° |
| Drill boom(arm) swing angle | L.:44° R.:45° |
| Carriage Compensation | 900mm |
| Engine | YC4D(58KW 2200r/min) |
| Drill rod specification | φ64*3000mm |
| Working pressure | 1.0-1.7 Mpa |
| Air consumption | 9-16 M3/min |

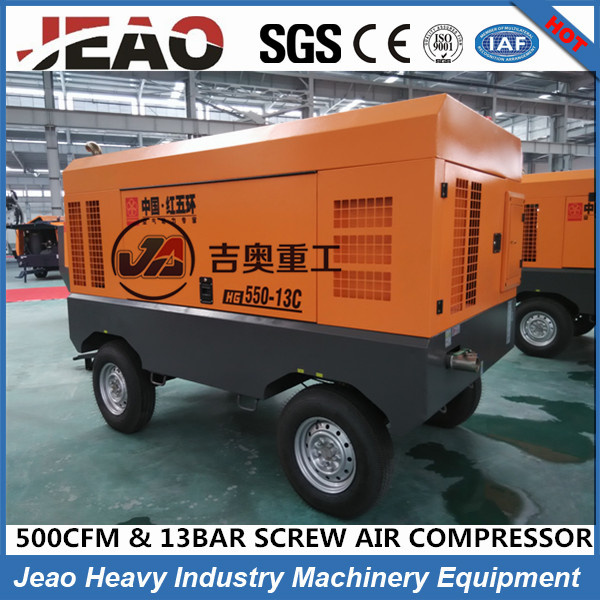

Air Compressor For JBP920H Portable Crawler Drilling Machine
Model : HG550M-13
Capacity : 15m3/min
Pressure Work : 13mbar
Drive Way :Direct drive coupling, diesel engine
Diesel Engine : CUMMINS brand 6BTA5.9

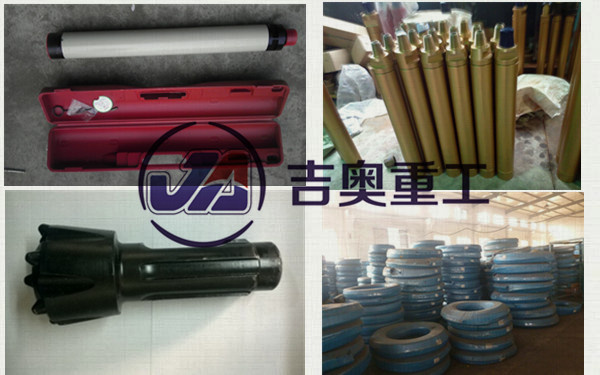

Parts for JBP150A Crawle portable drill machine
JEAO MACHINERY currently manufactures a wide range of machineries, such as all kinds of piston air compressors, screw air compressors, pneumatic rock drills, pneumatic and hydraulic down hole drills, breakers, drilling wagons etc., more than 300 varies of items in 8 product lines. The annual production capacity is over 200,000 units. Having implemented a name brand strategy that emphasizes growing our trademark globally, we have built up extensive sales, service and promotion networks. We have over 800 wholesalers around China as well as overseas market, which have exported products to Europe, South America, Middle East, Southeast Asia, South Africa etc.
JEAO COMPANY ---- GLAD TO SERVES FOR YOU
