| Price: | US $ 850-1500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | HD65A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | DTH Hammer |
| Machinery Type: | Drilling Tool |
| Use: | Ore Mining |

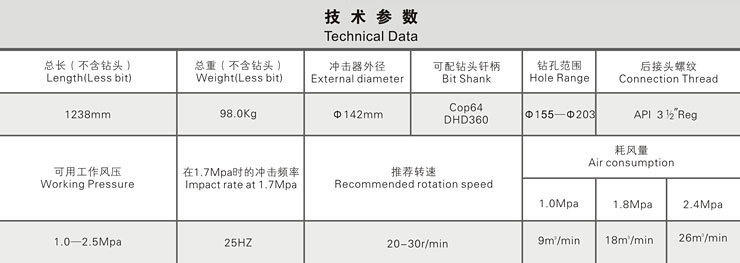

| Air Pressure: | 10-24bar |
| Air Capacity: | 9-26m3/Min |
| Matched Bit: | Ql60,DHD360,SD6 Shank Type |
| Outer Diameter: | 142mm |
| Top Sub Thread: | API 3 1/2" Reg Pin |
| Hole Diameter: | 152-203mm |
| Length Without Bit: | 1238mm |
Product Description
Introduction:
It is a kind of high air pressure dth hammer without footvale,our newest design.It is also one of the most advanced DTH Hammers in the world.
Application:
Using mining industry, energy, metallurgy, geology, coal, water conservancy, chemical industry and road construction.
Our Advantages:
1.WE CAN PROVIDE THE COMPLETE SOLUTION ( DTH drill bit, DTH hammer, DTH Drill Rod, Air Compressor, DTH Drilling rig and added value services)
2.Lower energy consumption and higher impact frequency.the drilling speed is 15%~30% higher than other series DTH Hammer.

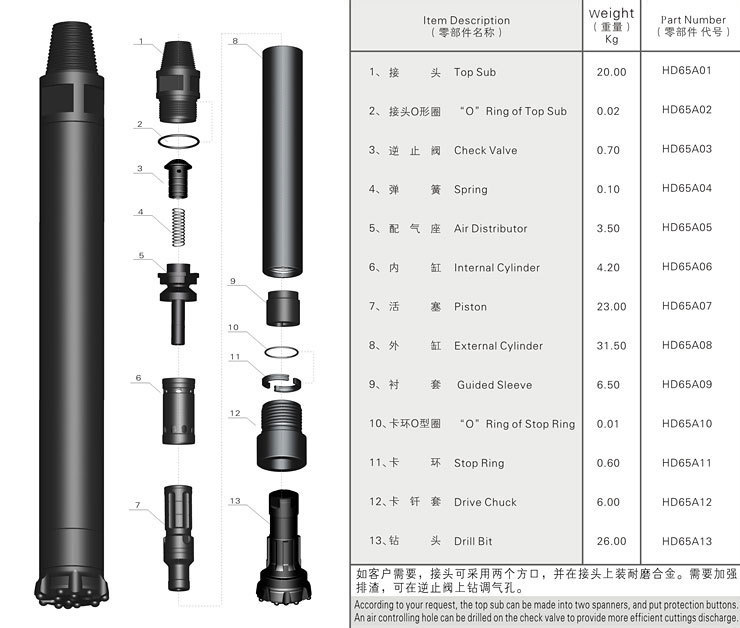

3.Simple structure,reliable parts,long life,easy and cheap maintenance.
4.Lower air and oil consumption.The oil consumption is about 10% lower than the one with foot valve.
5.The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.
DTH hammer:
3'' DTH hammer: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH (down-the-hole) hammer: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH (down-the-hole) hammer: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH (down-the-hole) hammer: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH (down-the-hole) hammer: DHD380, QL80, SD8, MISSION80
DTH hammer bits:
3" DTH hammer bits (90-105mm), shanks: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH hammer bits (105-130mm), shanks: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH hammer bits (130-152mm), shanks: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH hammer bits (152-171mm), shanks: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH hammer bits (200-305mm), shanks: DHD380, QL80, SD8, MISSION80
DTH rod range:
Drill rods diameter range: 60mm,64mm 76mm, 89mm, 102mm, 114mm, 127mm
Length: 1000mm, 1500mm, 2000mm, 3000mm, 4500mm, 6000mm, 7620mm, 8100mm, 9140mm, 10670mm
Thread: API IF2 3/8", API REG2 3/8", API IF2 7/8", API REG2 7/8", API IF3 1/2", API REG3 1/2"
