| Price: | US $ 8-10/Meter |
|---|---|
| Min Order: | 1000/Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | jjy-pipe-21 |
|---|---|
| Feature: | Anti UV, Eco Friendly, Waterproof, Anti-Corrosive |
| Working Life: | 50years Min |
| Application: | Potable Water Lines;Sanitary Sewag etc. |
| Working Temp: | -40 To200 Degree |
| Pressure: | 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.0MPa, 2.5MPa |
| Stiffness: | 2500, 5000, 10000 |
| Connection Type: | Socket |

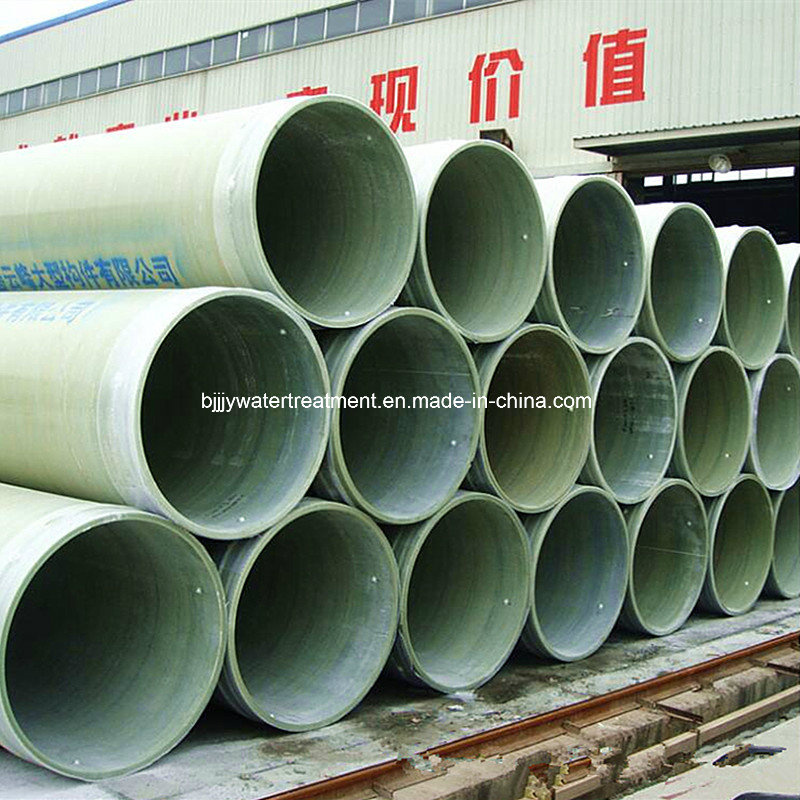

| Product Name: | FRP/GRP Fiberglass Composite Polyester Water Treat |
| Keywords: | FRP/GRP Pipe |
| Technique: | Filament Winding |
1.Diameter:DN50mm-DN4500mm
2.Pressure:0.25MPa,0.6MPa,1.0MPa,1.6MPa,2.0MPa,2.5MPa
3.Single length:3m,6m,9m,12m
4.Stiffness:2500,5000,10000
5.manufacturing process:Using CNC mechanical winding technology.
Note:also can according to users required to produced the different diameter and pressure and stiffness pipe.
Main raw material
1.Resin:can according to different operating requirements choose different property resin
2.Continuous fiberglass
3.Quartz sand
4.Fiberglass mat

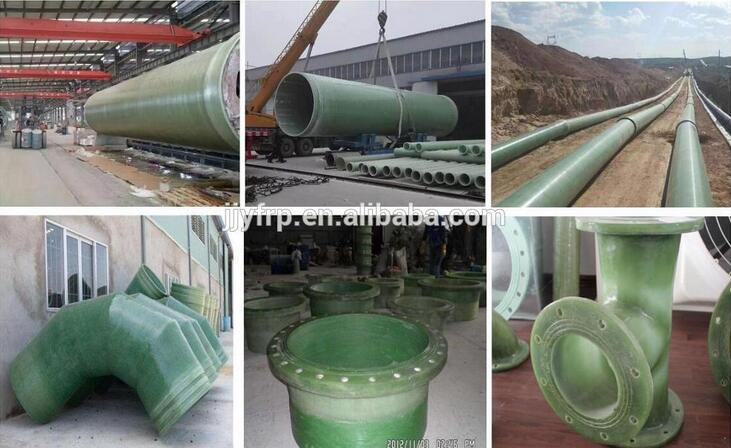

Applications :
1 Oil or gas transportation lines;
2 Chemical treatment and sewage pipelines;
3 Fluid transportation lines of high, medium and low pressures;
4 Oily water injection lines;
5 Injection lines for tertiary recovery(Injection of polymer, CO2 , NaOH etc.);
6 Tubing for oil producers, tubing for injectors of salty, chemical or oily water, CO2 and polymer etc.

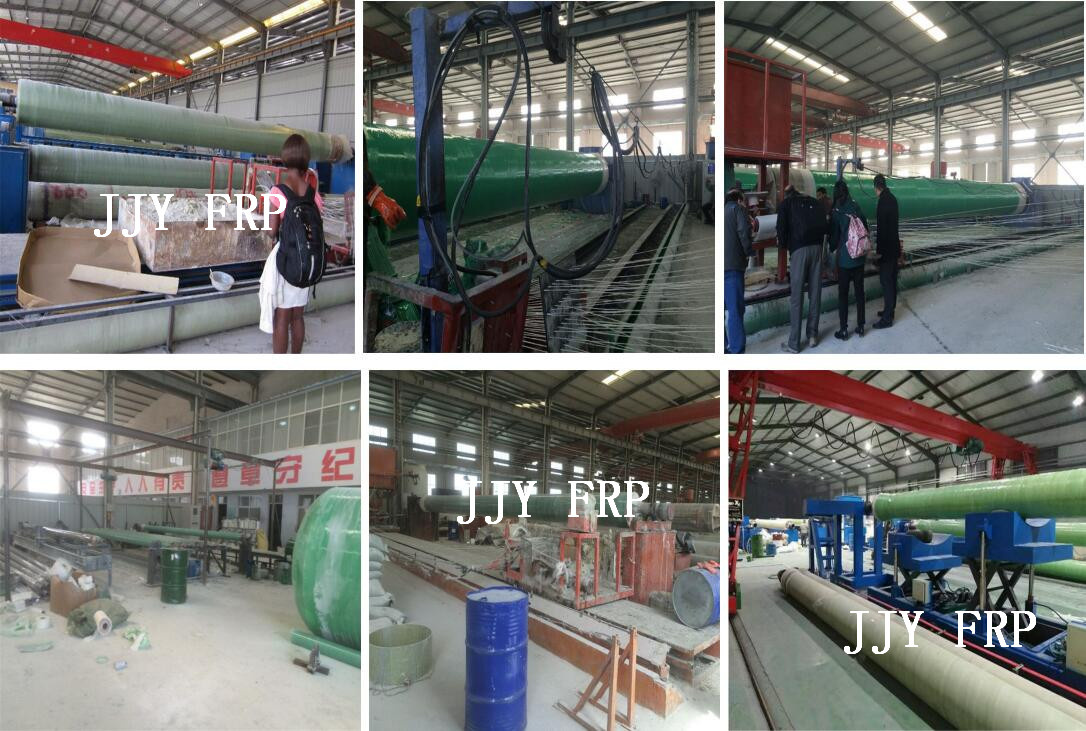

Main forming process
Our company use international advanced level computer control continuous fiberglass winding
forming process,according to design procedure on the mold make inner layer,inner structure
layer,resin mortar layer,outer structure layer,outer protection layer in turn,and then through the

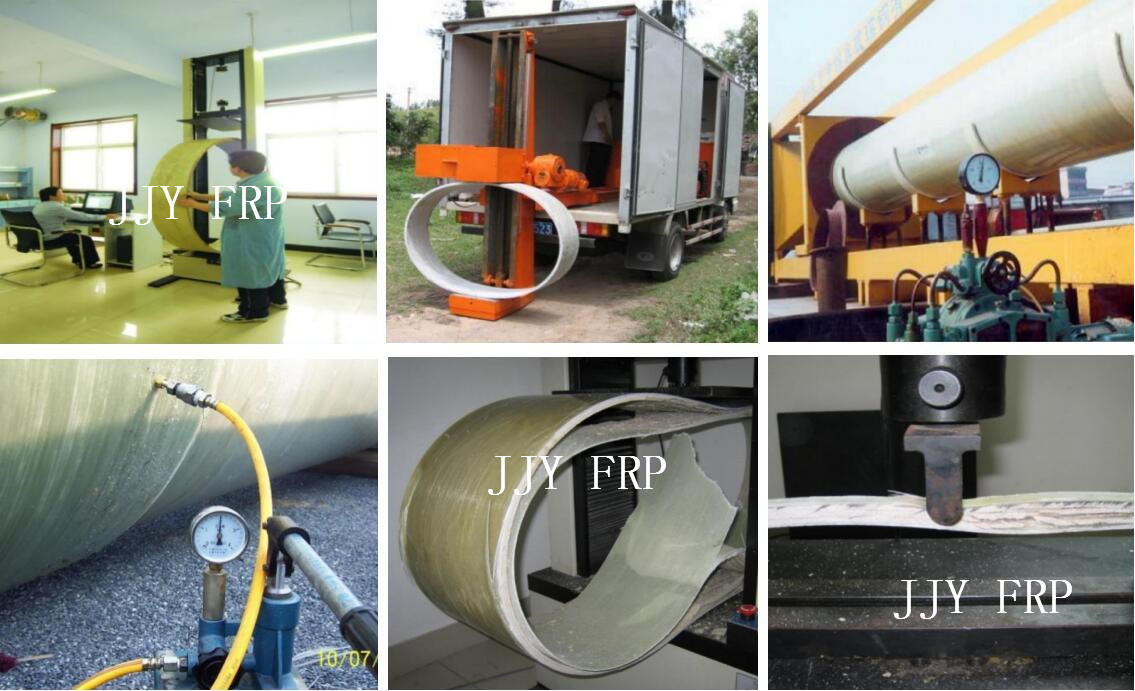

far infrared baking sheet do heat treatment,after curing according to the standard do hydrostatic test.
