| Price: | US $ 6-10/Meter |
|---|---|
| Min Order: | 100/Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | jjy-pipe-40 |
|---|---|
| Working Life: | 50years Min |
| Feature: | Anti UV, Eco Friendly, Waterproof, Anti-Corrosive |
| Application: | Potable Water Lines;Sanitary Sewag etc. |
| Working Temp: | -40 To200 Degree |
| Pressure: | 0.25MPa, 0.6MPa, 1.0MPa, 1.6MPa, 2.0MPa, 2.5MPa |
| Stiffness: | 2500, 5000, 10000 |
| Connection Type: | Socket |
| Length: | 6m/12m |
| Technique: | Filament Winding |
1.Diameter:DN50mm-DN4500mm
2.Pressure:0.25MPa,0.6MPa,1.0MPa,1.6MPa,2.0MPa,2.5MPa
3.Single length:3m,6m,9m,12m
4.Stiffness:2500,5000,10000
5.manufacturing process:Using CNC mechanical winding technology.
Note:also can according to users required to produced the different diameter and pressure and stiffness pipe.
Main raw material
1.Resin:can according to different operating requirements choose different property resin
2.Continuous fiberglass
3.Quartz sand
4.Fiberglass mat
Main forming process
Our company use international advanced level computer control continuous fiberglass winding
forming process,according to design procedure on the mold make inner layer,inner structure
layer,resin mortar layer,outer structure layer,outer protection layer in turn,and then through the
far infrared baking sheet do heat treatment,after curing according to the standard do hydrostatic test.

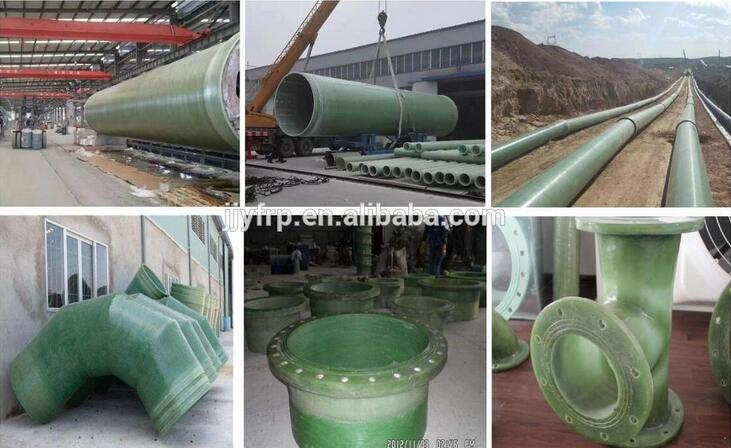

Detailed Images
Product Features :
Good mechanical property
Good hydraulics property
Good designable,use for wide range
Avoid pollution,non-poisonous
Less connection joint,good sealing
Light weight,easy to transportation and installation
1Antifouling, anti-moth, non-rust, keeping water from pollution; It also apply to carry the polluted water, slurry and seawater;
2 The ability of water resistance and corrosion resistance can prolong product service life;
3 The connection of insert makes airproof excellent; project cost can be reduced without building concrete protect layer;
4 Few joint and various of joint methods not only reduce water resistance but also project cost;
5 Good insulation, heat resistance, Combustion resistance; No distortion in high temperature of 80-100 degree;
6 With light weight, high strength, the hoisting cost can be decreased, also expedite installation proceeding;
7 Low maintenance expense: no need for antirust, anti-pollution, insulation, heat preservation and the relative examination and repair; cathode protection free also can save the project maintenance cost.
Applications :
1 Oil or gas transportation lines;
2 Chemical treatment and sewage pipelines;
3 Fluid transportation lines of high, medium and low pressures;
4 Oily water injection lines;
5 Injection lines for tertiary recovery(Injection of polymer, CO2 , NaOH etc.);
6 Tubing for oil producers, tubing for injectors of salty, chemical or oily water, CO2 and polymer etc.

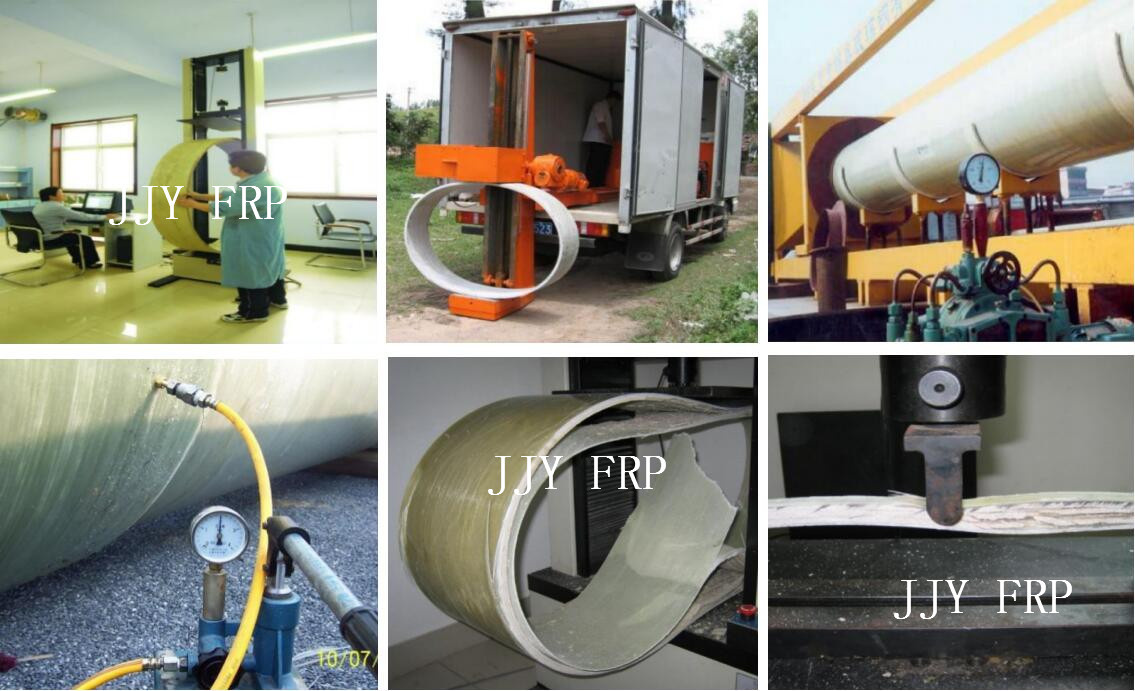

Inspection

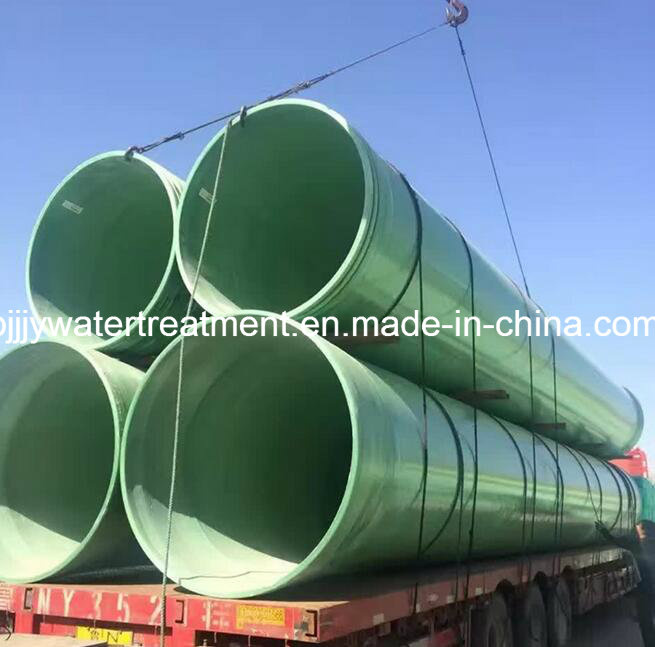

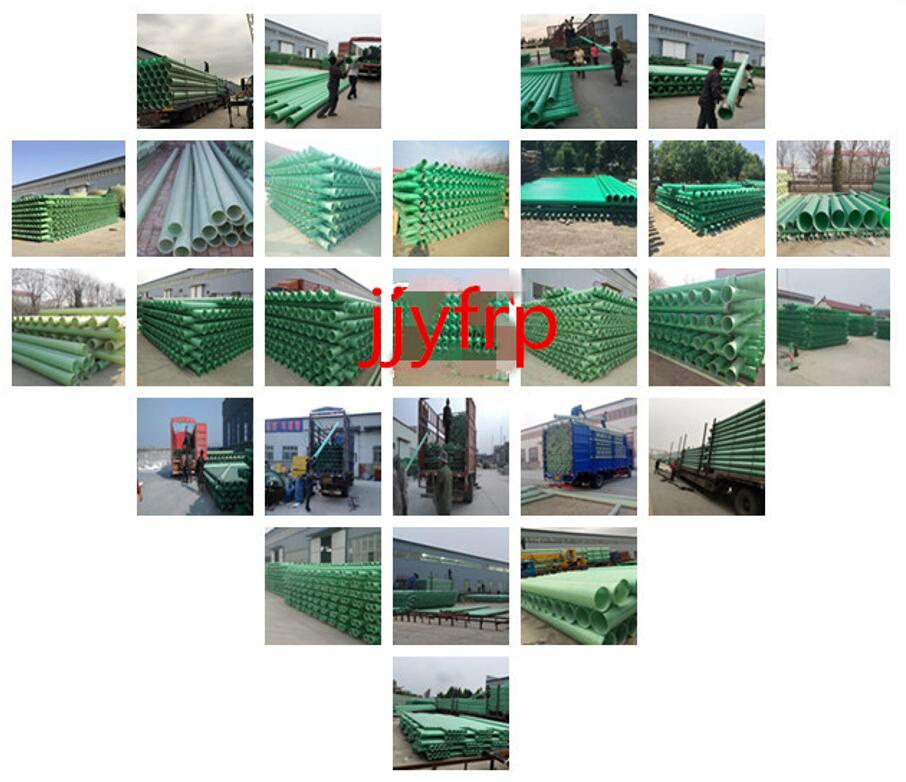

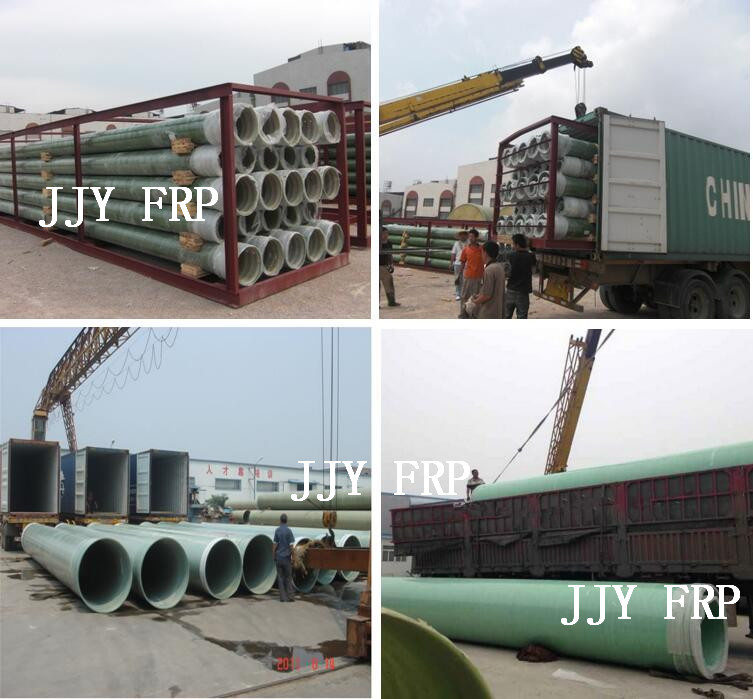

Packing and Delivery

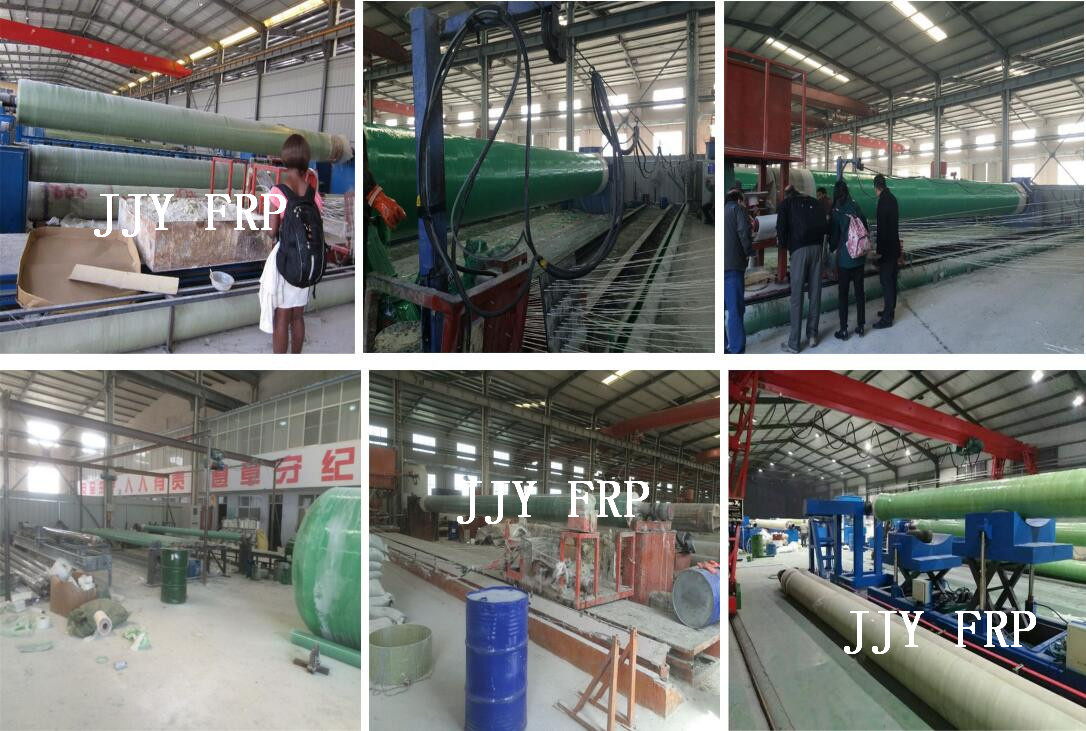

Working Shop
Certificates
