2017 New Smart Hotel Wooden Door Lock
| Price: |
US $ 29.8-32.5/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
RF-INV201A6-SS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
76*285mm |
| Color: |
Ss-Silver |
| Mortise: |
5 Latch, 2# Lock Body( ANSI Standard) |
| Type: |
Electronic |
| Shape: |
Mortise Door Lock |
| Anti-theft Standard: |
B |
| Part: |
Lock |
| Backset: |
60mm |
| Lock Cylinder Length: |
65mm |
| Usage: |
Hotel, Apartment, School, Bath Place |
| Material: |
Stainless Steel |
| Style: |
American |
| Door Thickness Fits: |
30~70mm |
Product Description
Production Parameters:
Door lock name: RF-INV2016A-SS
Lock Panel Material: Stainless SteelLock Handle Material: Stainless SteelLock Mortise Type: America StandardDoor lock delivery: 15 days after payment Door lock logo: Customize available Door Depth: 38~70mmLock system : Free ,support multi-computers to work together .Card Reader: Needed, works with lock management softwareCard Limitation: No limitationMinimum order quantity : 10pcs Reading Time: <1sReading Range: <3cmSensor Frequency: 125KhzWorking Voltage: DC 6V, powered by 4pcs 5#AA batteriesStatic Current: <15 uADynamic Current: <120 mALow Voltage Alarm: <4.8V, can still unlock about 200 timesWorking Temperature: -20ºC~50ºCWorking Humidity: 20%~90%Suitable Door: Wooden Door/ Steel DoorINV company specializes in designing and manufacturing high-teck and stable electronic locks since 1998. We provide mature standalone hotel lock system to help hotels gain security and high management effeciency.
The INV hotel lock system composed of high quality RF locks, RF cards, encoder, data gather and hotel management software which is provided to customers for free. Other accessories for hotel rooms such as power-saving switches (usually called saver for short), bedside control panel, touch-screen room no. (doorplate) and doorbell also provided.
The hotel locks we provided are mainly made by Zinc Alloy, copper forging or Stainless Steel, which is strong enough to protect the system from any considerable outside impact and durable. The locks are powered by four high-capacity alkaline AA batteries that can last up to 20, 000 unlocking activities.
The hotel management system is easy to use with detailed user guide, hotels can perform essential management tasks quickly and easily without training.
Technical Parameter
| No. | Items | Technical Parameters |
| 1 | Number of registration cards | unlimited |
| 2 | Reading time | <1s |
| 3 | Reading range | ≤3cm |
| 4 | Sensor frequency | 125KHz(T5557 / EM4305 /RFID) ~ 13.56MHz (Mifare 1) |
| 5 | Working voltage | DC 6V (4pcs 1.5V alkaline batteries) |
| 6 | Static current | <15μA |
| 7 | Dynamic current | <120mA |
| 8 | Low voltage alarm | <4.8V (can still be opened around 200 times) |
| 9 | Working temperature | -20ºC~50ºC |
| 10 | Working humidity | 20%~90% |
| 11 | Material | Zinc alloy |
| 12 | Door thickness | 35mm-70mm (other size can customized) |
| 13 | Card type | T5557, EM4305, Mifare 1, RFID
|

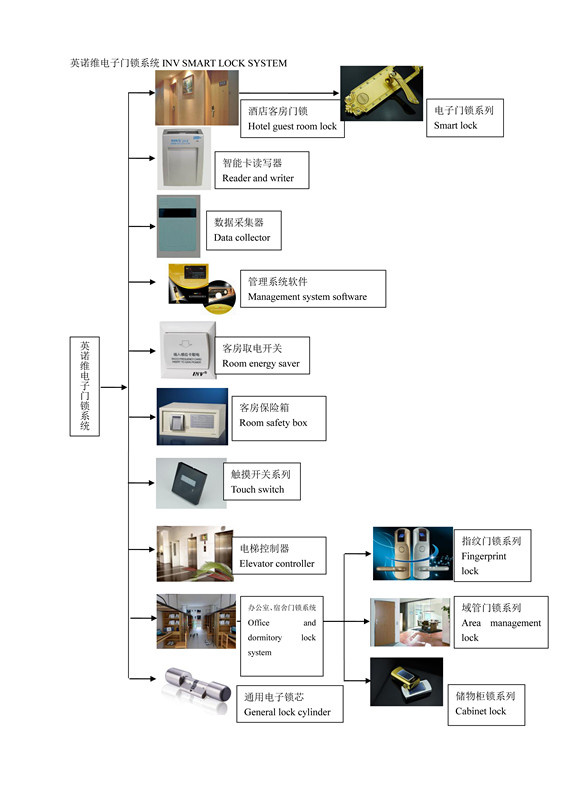

INV door lock system

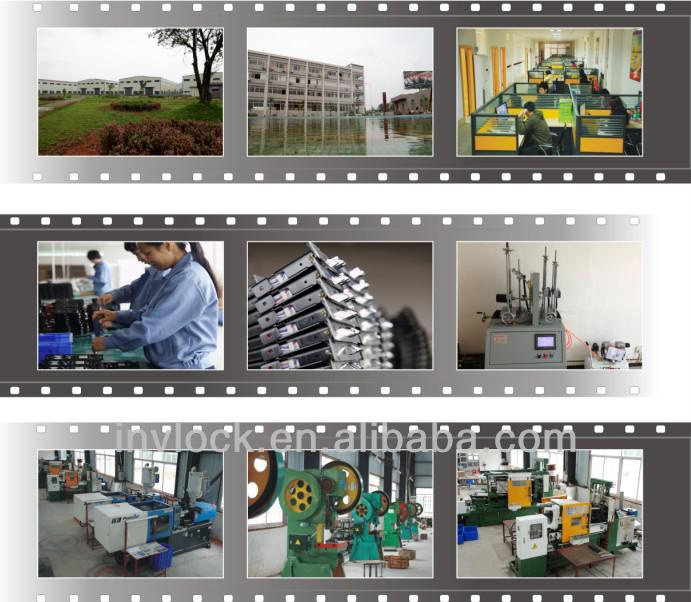

Factory workshop
Shaoguan Innovate Technology Equipment Co., Ltd. (INV) is a high-tech company that centers on designing, researching and developing products. It provides production, sales, training and service together. INV is located in the section A, Industry Transfer Area Zhenjiang District, Shaoguan city. It covers an area of 4000 m2, have its own hardware department, assembly department, storehouse and office. Since founded in 2007, INV has been committed to smart chip applications products and corresponding management software development and manufacturing. With strong technical advantage, INV is now one of the leaders in smart lock industry, and honored "INV" as the top ten brand of lock in China. So far, INV owns more than 20 domestic patents, including invention patents, utility model patents and design patents. It also owns an international patent (PCT). The company is wholly owner of the INV Brand.
INV has strong technical force and strong technology development capability. It has a group of senior professionals engaged in software development and electronic product development. INV strictly enforce Q/WBK02-2003 enterprise standards for production. Thus, its products are with high performance and stability. INV's products have passed through the testing of National Testing Center For Quanlity of Security & Safety Alarm System Products, and obtain the production of qualified registered ratifications, CE, Swiss SGS certification. INV not only pay attention to improve the products quality, but also focus on product innovation. Thus, constantly develops new products to meet market needs. So far the company has developed a series of products with high stability and strong viability, such as QR code, fingerprint, RF card lock series. INV is the pioneer in the QR code intelligent lock development because we are the first one in the world to use QR code technology in locks. The main products of INV company includes QR code lock, RF card smart lock, fingerprint lock, sauna cabinet locks, energy saving switch, touch screen switches and so on. These products are widely used in hotels, guest houses, villas, offices, senior apartments, home and other places. With high quality products and perfect service, INV has won good market awareness. Its products are only sold nationwide but also exported to many countries and regions, such as France, Turkey, India, Iran, Thailand, Saudi Arabia, Hong Kong and Taiwan.
For the good quality of products, ahead innovation and prefect service, INV has won many praises and trust of our customers. INV is looking forward to establishing long-term business relationship with you in the near future.
