2017 New Ysdz0502 3 Functions Orthopedic Drill System Orthopedic Drill

Name: 2017 New Ysdz0502 3 Functions Orthopedic Drill System Orthopedic Drill
Brand: tool-buy.com
SKU: 819438045
Availability: InStock
Rating: 4.7 (104 reviews)

Price:	Negotiableset/sets,electric drill
Min Order:	1set/sets,electric drill
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Guangzhou Yueshen Medical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	YSDZ0502
Hand Piece:	Working Voltage 7.2 V
Hand Piece Output Power:	≥50W
Sterilized:	≤135°c
Battery Voltage:	7.2 V
Charging Time:	2 Hours or More
Charger Input Power:	30 W
Charger Output Power:	7.2V 900mA
Charger Input Voltage:	AC 110V-240V 50Hz-60Hz
Product Name:	Electric Drill
Application:	Orthopedic Drill
Material:	Steel
Feature:	Reusable
Certification:	Electric Drill
Type:	Drill
Group:	All

Product Description

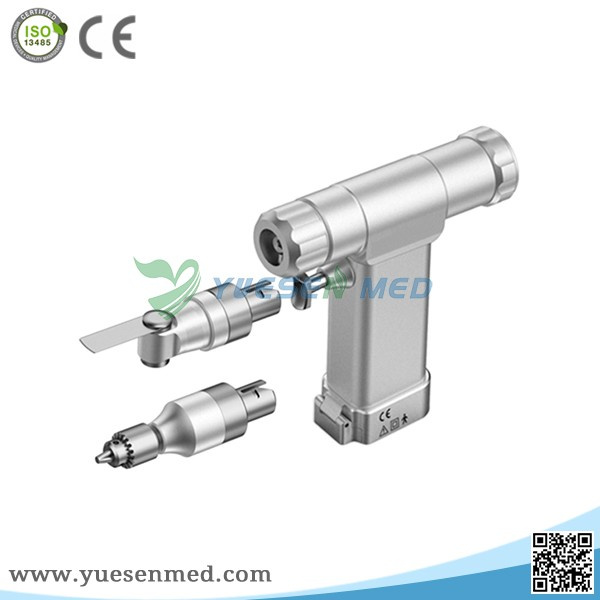

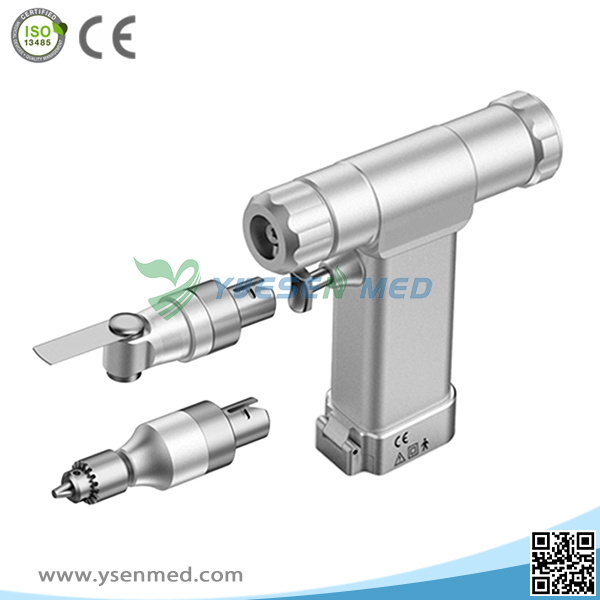

2017 New Ysdz0502 3 functions orthopedic drill system orthopedic drill

With a comprehensive range of quick change attachments assembled in one full functional handpiece,afford surgeon a convenient option.

Application:

For application in drilling hole for plate and screw during trauma surgery.
Normally used for small bone surgery, such as animal surgery, hand and foot surgery.

1:Technial Data

Hand Piece	Working Voltage	14.4V
	Output Power	≥20W
	Unit rise in temperature	≤25°C
Charger	Input Power	AC 220V,50Hz
	Output Power	14.4V,900mA
	Input Power	30VA
Battery	Voltage	14.4V
Battery	Charging time	About 3 hours

Non-loading drill speed: ≥1100r/min

Non-loading oscillating saw frequency: 18000rpm

Non-loading noise: ≤ 75dB(A)

Radial run-out: ≤ 0.5mm

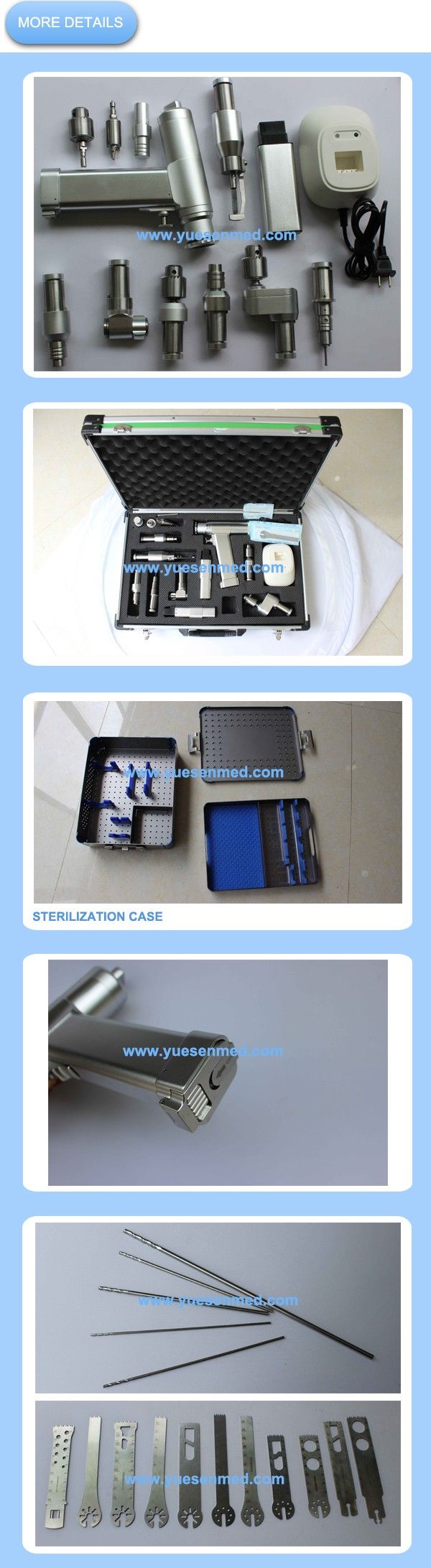

2:Standard Configuration

One hand piece

One bone drill adapter (canulated)

One oscillating saw adapter

One small AO adapter

One K wire adapter(optional)

One charger

Two 7.2V batteries

Two aspetic battery transfer rings

Two oscillating saw blades

One drill chuck key

One Aluminum case
