| Prod Model: |
KET-S Series |
| Maximum Torque: |
1898-34079nm |
| Working Pressure: |
700bar |
| Square Drive: |
3/4 or 2-1/2 Inch |
| Socket Size: |
27-55 to 60-255mm |
| OEM: |
Yes |
| Material: |
Steel |
| Payment: |
T/T |
| Product Name: |
3/4'' to 2 1/2'' Steel Torque Wrench |
| Place Of Origin: |
Jiangsu(Mainland), China |
| Delivery Time: |
3-10 Days After Receive Payment |
Product Description

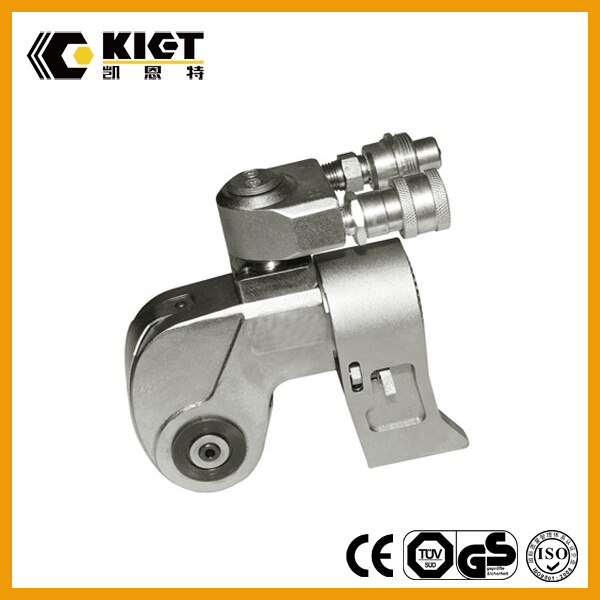

Steel Material Square Driven Hydraulic Torque Wrench Features: 1.The 360º×180º rotatory oil connection has no limitation in used space and is convenient to be operated.
2.The torque release is used for the actuating shaft, which can fast switch the tightening and dismantling condition.
3.The hydraulic piston and power head have a smart design, light weight, compact structure and small operating space.
4.The output socket rotation angle in single operation which is large and the hydraulic piston has a quick return stroke, high efficiency...
5.The reactive force is on one straight line, which can decrease the inner torque abrasion.
6.The constant torque output provides the high precision for wrench in the whole working process.
7.Simple and easy maintenance, no need special tools for maintenance
8.All the surfaces of the torque wrenches have through the nickel plating treatment, with good corrosion resistant performance
Parameter:
Model | Nut Size
(mm) | Square Drive(In) | Max Nm under 700bar |
| KET-S1500 | 27-55 | 3/4" | 1898 |
| KET-S3000 | 30-75 | 1 | 4339 |
| KET-S6000 | 30-85 | 1 1/2" | 8144 |
| KET-S11000 | 41-105 | 1 1/2" | 14914 |
| KET-S25000 | 60-255 | 2 1/2" | 34079 |

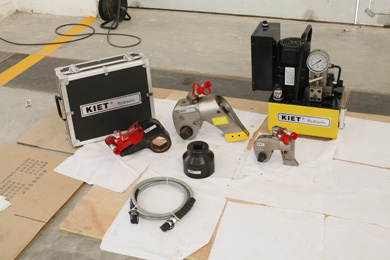

Photos:

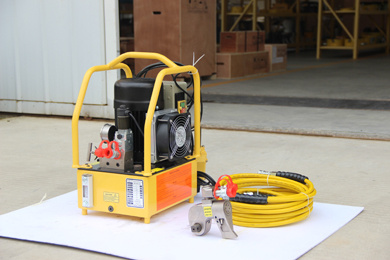

Power Unit:| Model | Flow(L/min) | Power Motor(kw) | Voltage(V) | Oil Capacity(L) | Working Pressure(MPa) |
| KET-EPC-220 | 2 | 2.2 | 220 | 16 | 70 |
Packing and Shipping:Outer Package:wooden case;
Inner Package:aluminum alloy case;
Shipping:By sea,air,express,according to customer request.
Company Information:

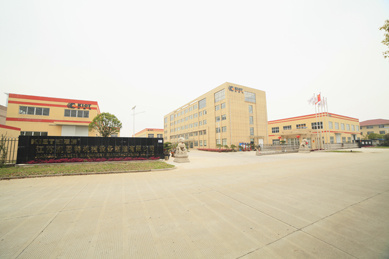

Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Certificate:
CE&ISO9000:2008
Contact Information:Contact Person: Handy Han Mobile: +86 1800-5263-911Office: +86-523-81569666 Fax: +86-523-86186999/ 86183388
Website:www.kaientehydraulic.com Welcome to visit our factory!
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
