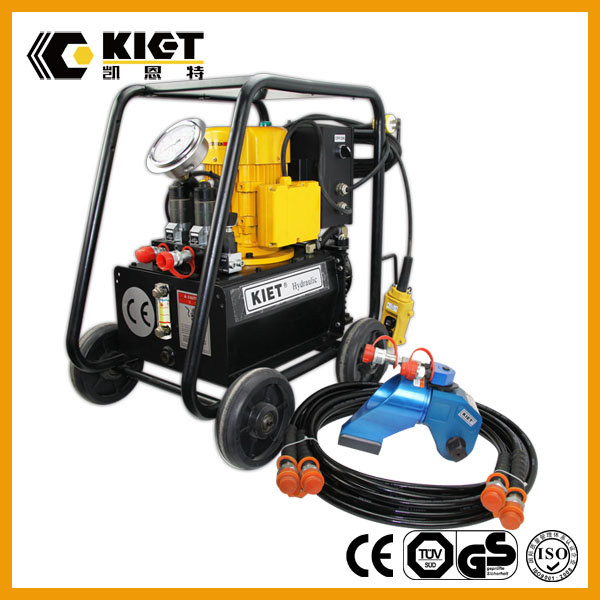

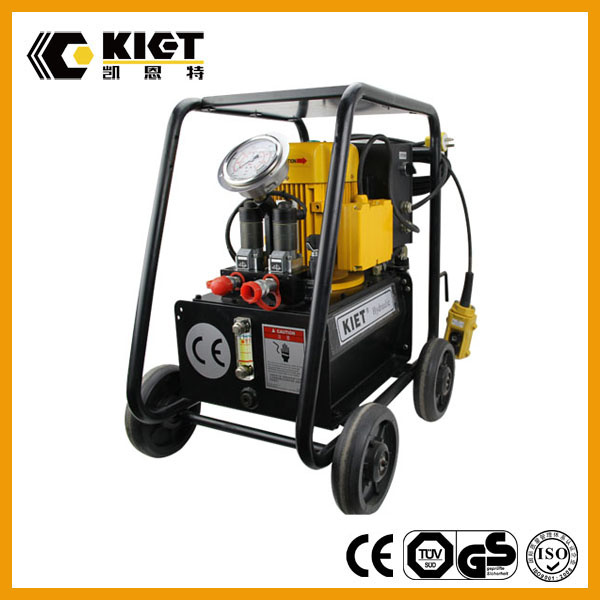

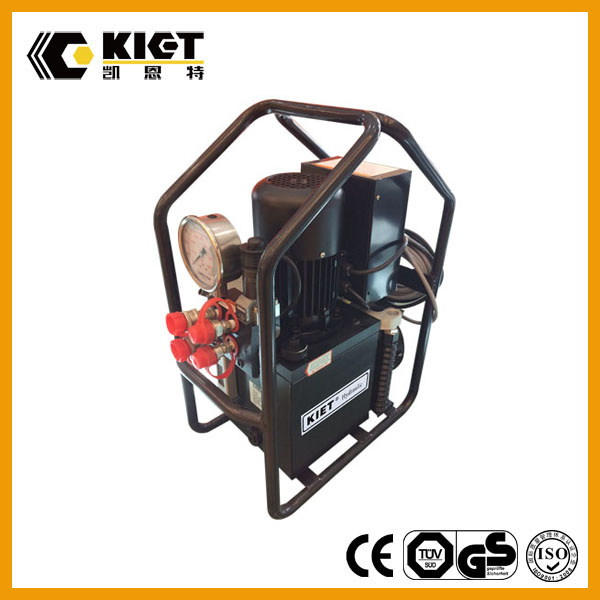

2017 Special Dual Motor Electric Hydraulic Pump for Torque Wrench
| Price: |
US $ 500-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
KET-SDW; SDY |
| Application: |
Support Power |
| Color And Size: |
Standed |
| Power: |
Electric |
| Material: |
Steel |
| Performance: |
High Precision |
| Warranty: |
1 Year |
| Advantage: |
Maintenance-Free |
| Tank Capacity: |
20L |
| Motor Power: |
1.1-2kw |
| Working Pressure: |
70MPa |
Product Description
2017 Special Dual Motor Electric Hydraulic Pump for Torque WrenchProduct Features:1. Special dual electric hydraulic pump for torque wrench uses a unique dual motor design, greater driving power, faster and compact structure;
2. High power brushless motor, maintenance free and long service life;
3. High performance cooler, fan will start automatically at the temperature of 35 to ensure the long operating time;
4. Four synchronous operations, suitable for high load working of equipment bolts synchronous tightening;
5. Easy to use with wheel and frame arm.
Parts of the parameter| Model | Tank Capacity (L) | Motor Power (KW) | Voltage | Flow (L/min) | |
| KET-SDW-2 | 20 | 1.1-2 | 220V/50Z Single- phase | 16L(0-6.5MPa) 3.6L(6.5-32MPa) 1.7L(32-70MPa) | |
| KET-SDY-2 | 20 | 1.1-2 | 220V/50Z Single- phase | 16L(0»6.5MPa) 3.6L(6.5-32MPa) 1.7L(32-70MPa) | |
| KET-SDW-4 | 20 | 1.1-2 | 220V/50Z Single- phase | 16L(0-6.5MPa) 3.6L(6.5-32MPa) 1.7L(32-70MPa) | |
| KET-SDY-4 | 20 | 1.1-2 | 220V/50Z Single- phase | 16L(0-6.5MPa) 3.6L(6.5-32MPa) 1.7L(32-70MPa) | |
| | | | | | |
| Working Pressure (MPa) | Dimensions (LxWxH) (mm) | Standard Length of Remote Line (m) | Weight (kg) | Oil Distributing Valve | Automatic Heating |
| 70 | 400X350X 400 | 6 | 45 | 2 | 1 |
| 70 | 400 X 350 X 400 | 6 | 45 | 2 | Yes |
| 70 | 400X350X 400 | 6 | 45 | 4 | / |
| 70 | 400X350X 400 | 6 | 45 | 4 | Yes |
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
FAQ
Q1: How can contact sales?
A1: Please call: +86-021-68565866 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-0 days. If it is customized, not our standard products, it will take 20-45 days to produce.Certification
Contact Person: Handy Han
Mobile: +86 1800-5263-911
Office: +86-523-81569666
Fax:86-523-86186999/86183388
Website:www.kaientehydraulic.com
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
