2017 Special Electric Hydraulic Pump for Engineering Hydraulic Cylinder
| Price: |
US $ 1000-20000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
KET-DBZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
7-15 Days After Receive Payment |
| Working Pressure: |
31.5MPa |
| Flow: |
3-144L |
| Motor Speed: |
1470; 1480 R/Min |
| Oil Capacity: |
51-1594L |
| Weight: |
104-2048kg |
| Color And Size: |
Customized |
| Warranty: |
1 Year |
| After Sale: |
Technical Support |
| Application: |
Support Power |
| Structure: |
Radial Plunger Pump |
| Cylinder Number: |
Multi Cylinder |
| Drive Mode: |
Hydraulic Driven Reciprocating Pump |
| Pump Shaft Position: |
Vertical |
| Type: |
Radial |
| Power: |
Hydraulic |

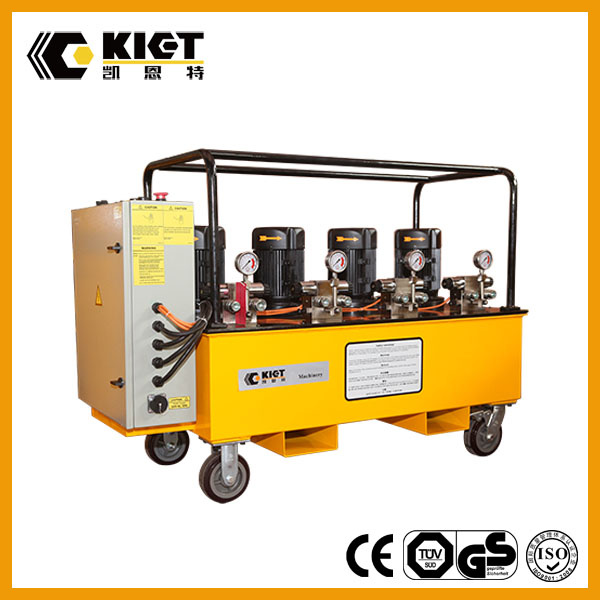

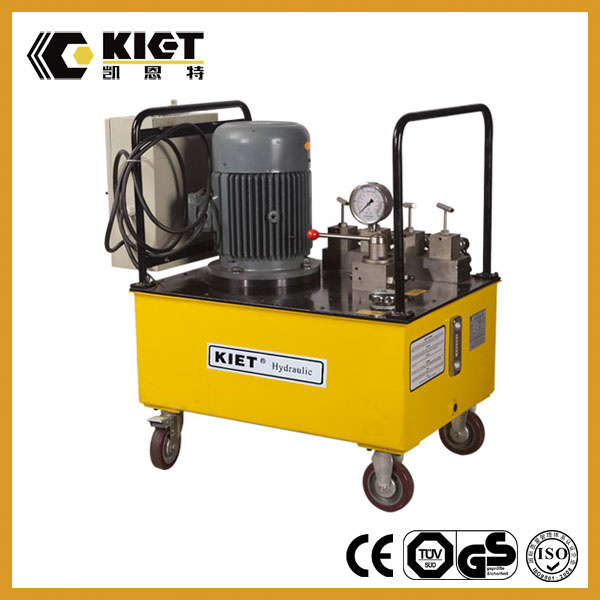

Product Description
Electric Hydraulic Pump For Engineering Hydraulic CylinderProduct Features:1. With pray coating, anti-corrosion, pollution-resistant, durable.
2. Lightweight and compact design make it easy to be moved.
3. Double seep pump design, witn the high flow in the low pressure.
4.The actuator can be fast moved on no-load status.
5. Internal precise high and low pressure automatic reversing valve and external adjustable pressure to avoid the over load.Parts of the parameter | Model | Working Pressure (MPa) | Flow (L7min) | Motor Power (KW) | Motor Speed (r/min) | Oil Tank Capacity (L) | Oil Tank Dimensions (mm) | Dimensions (mm) | Weight (kg) |
| Length | Width | Height | Length | Width | Height |
| KET-DBZ-300 | 31.5 | 3 | 3 | 1470 | 51 | 500 | 400 | 300 | 570 | 460 | 650 | 104 |
| KET-DBZ-400 | 31.5 | 4 | 4 | 1470 | 51 | 500 | 400 | 300 | 570 | 460 | 660 | 106 |
| KET-DBZ-550 | 31.5 | 5 | 5.5 | 1470 | 164 | 750 | 550 | 470 | 790 | 640 | 850 | 226 |
| KET-DBZ-750 | 31.5 | 6 | 7.5 | 1480 | 164 | 750 | 550 | 470 | 790 | 640 | 890 | 236 |
| KET-DBZ-1110 | 31.5 | 15 | 11 | 1480 | 191 | 800 | 600 | 470 | 840 | 700 | 950 | 294 |
| KET-DBZ-2200 | 31.5 | 30 | 11x2 | 1480 | 433 | 1200 | 850 | 500 | 1240 | 950 | 980 | 596 |
| KET-DBZ-1800 | 31.5 | 24 | 18.5 | 1480 | 291 | 1000 | 700 | 490 | 1040 | 830 | 1050 | 398 |
| KET-DBZ^700 | 31.5 | 48 | 18.5x2 | 1480 | 433 | 1200 | 850 | 500 | 1220 | 950 | 1060 | 684 |
| KET-DBZ-5400 | 31.5 | 72 | 18.5x3 | 1480 | 850 | 2000 | 1000 | 500 | 2000 | 1130 | 1220 | 1214 |
| KET-DBZ-7200 | 31.5 | 96 | 18.5x4 | 1480 | 1226 | 2500 | 1200 | 520 | 2500 | 1340 | 1190 | 1610 |
| KET-DBZ^OOO | 31.5 | 36 | 30 | 1480 | 450 | 1200 | 850 | 520 | 1230 | 950 | 1220 | 622 |
| KET-DBZ-6000 | 31.5 | 72 | 30x2 | 1480 | 850 | 1200 | 1000 | 500 | 2000 | 1130 | 1200 | 872 |
| KET-DBZ-9000 | 31.5 | 108 | 30x3 | 1480 | 850 | 2000 | 1000 | 500 | 2000 | 950 | 1200 | 1496 |
| KET-DBZ-12000 | 31.5 | 144 | 30x4 | 1480 | 1594 | 2500 | 1500 | 500 | 2530 | 1600 |
Packaging & Shipping: We provide wooden packing for each hydraulic jack which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.Our Service: KIET provide one year guarantee for all the hydraulic cylinders. We promise if there is any Problems of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded in 24 hours.Company Information:
KIET is specialized in design and supply Hydraulic Products, Over 20 years experience in Hydraulic area, Being named "Hydraulic Manufaturer Leader" in China.
Since the establishment in 1995, Approved to manufacture for ENERPAC, HYTORC,SPX and other brand for 10 years. we successfully transformed from OEM Manufacturer to our own brand company--------KIET
KIET hydraulic products with great quality and best price, Sells very well in global market. Being widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc.
Our main product category includes:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)Certificate:
FAQ:Q1: How can contact sales?
A1: Please call: 0086 18121376369 for pre-sales or click the contact find our website and email address.
Q2: How can I buy KIET products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: Can I have Kiet products catalog and price list?
A3: Please visit our English website: www.chinakiet.com/en to download our E-catalog, and send us an email for price list
Q4: How long does it take to get the product If I place an order?
A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.
Q5: How to make payment?
A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.
Q6: Manufacturing time?
Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.
Why Choose KIET?
Quality --- KIET has been in the industry for over 20 years. Being trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands. Regarding quality as KIET life !
Contact Information:
Contact Person: Handy Han
Mobile: +86 1800-5263-911
Office: +86-523-81569666
Fax: 86-523-86186999/86183388
Website:www.kaientehydraulic.com Welcome to visit our factory!
.
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
