Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd has more than 20 yearsexperience in carbide products manufacture. Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc. If you need any carbide products, I will be glad to send our offer.

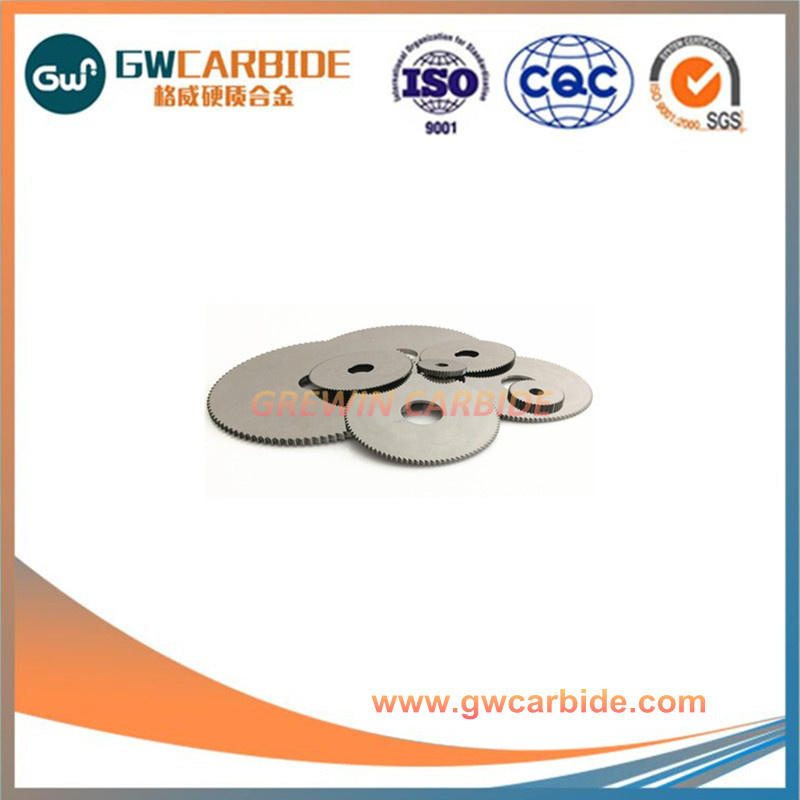

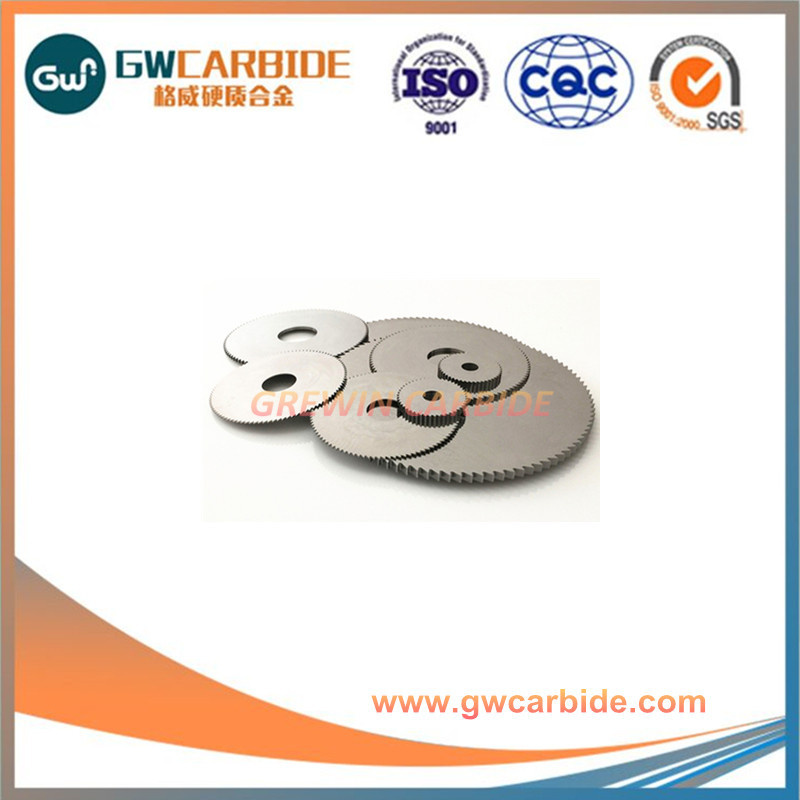

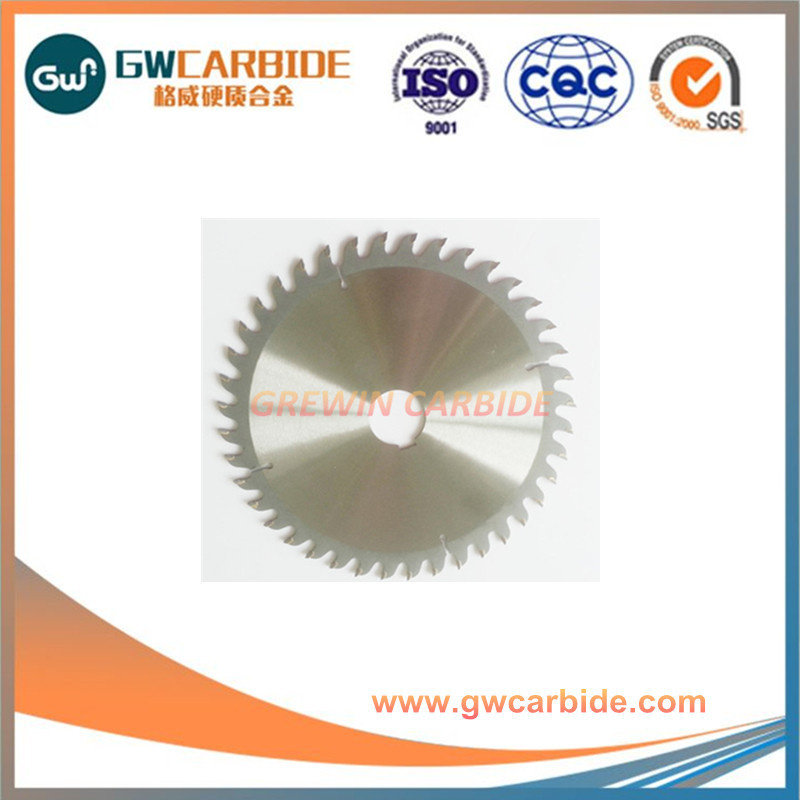

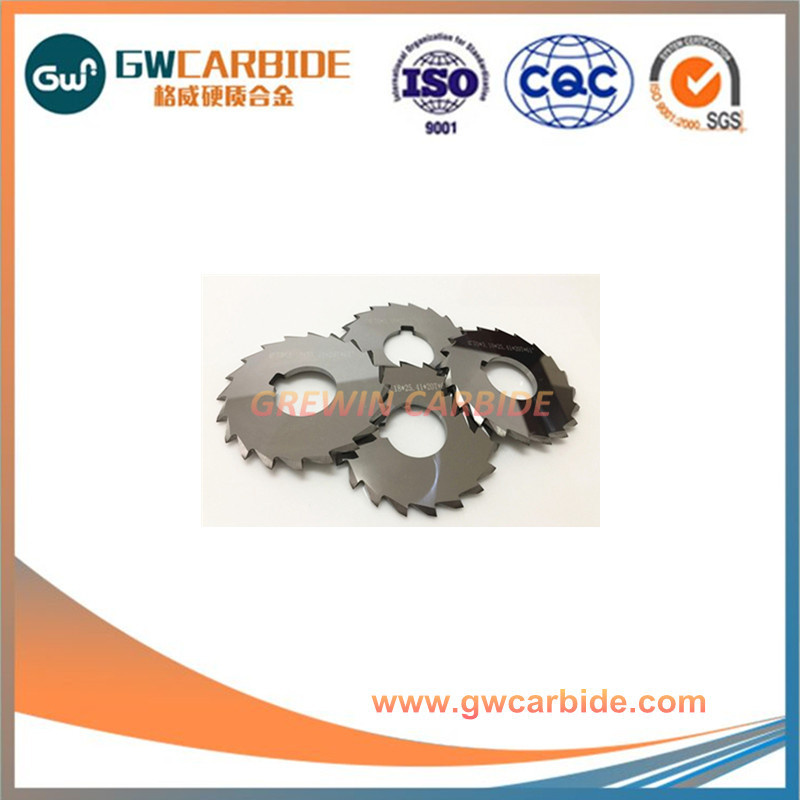

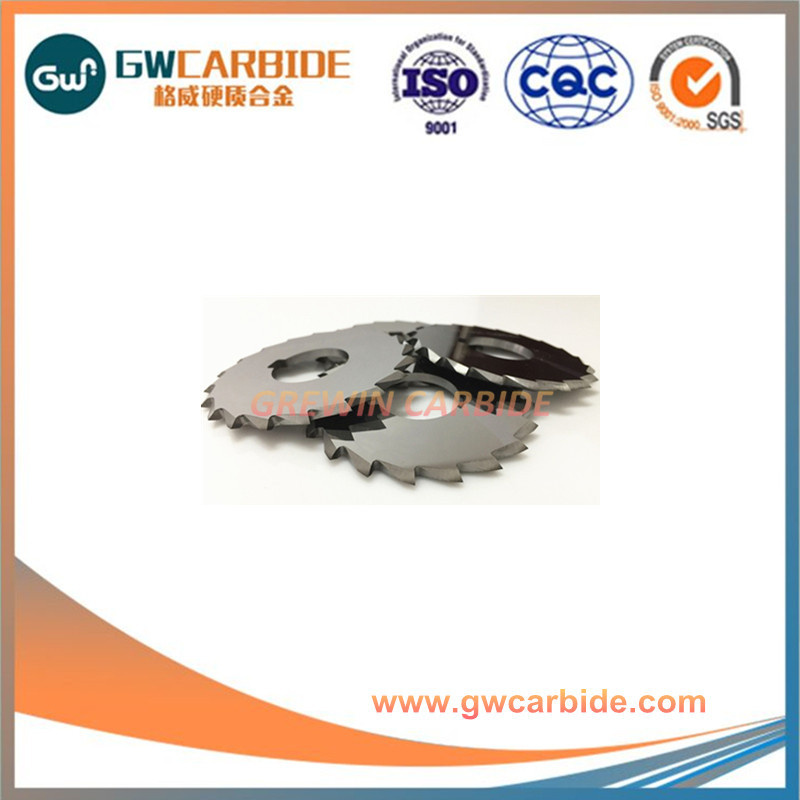

High precision tungsten carbide saw blade
1. Our advantage
1 High quality, supper sharp + smooth cutting + long working life 2 100% raw material, HIP-Sintered 3 CNC grinding for teeth, with high precision 4 Various grades for different kinds of cutting material 5 Strict quality control, complete test equipments 6 Competitive price 7 Good after sale service
2. Sizes
External Dia. (mm)
Internal Dia. (mm)
Thickness (mm)
Teeth
110
16
1.0~7.0
10T
150
20
1.0~7.0
24T
180
25.4
1.0~7.0
30T
185
30
1.0~7.0
36T
230
35
3.0~4.5
40T
235
40
3.0~4.5
48T
250
50
3.0~4.5
60T
255
80
3.0~4.5
72T
3. Grade Recommendation
YG6/K20
For the cutting of ordinary wood, Recommend to use resistance welding,and the temperature should not be too high
YG8/K30
For the cutting of the ordinary wood,also for the aluminum, Recommend to use resistance welding,and the temperature should not be too high
YK08/K40
For the cutting of the recycling wood especially for some iron nails and stones in it, Recommend to use resistance welding,and the temperature should not be too high
JX5/K20
For the cutting of the hard wood/recycling wood and aluminum, Recommend to use resistance welding,and the temperature should not be too high
YG6X/K10
For the cutting of the wood specially, recommend to use the high frequency welding
YG8X/K10
For the cutting of the wood and aluminum specially, Recommend to use the high frequency welding
K10S
For the cutting of the hard wood specially, Recommend to use the high frequency welding
K20S
For the cutting of the aluminum specially, Recommend to use the high frequency welding
K10UF
For the cutting of the plywood,board with middle to high density and the compound materials with aluminum and plasic, Use the high frequency welding
K20UF
For the cutting of the aluminum specially, Use the high frequency welding
K30UF
For the cutting of the stones specially, Use the high frequency welding
R06
For the cutting of the plywood,density board and the sandwich board, Use the high frequency welding
R03
For the cutting of the timber such as shaving board,laminated boar,density board and compound material etc, Use the high frequency welding
YC40
For the cutting of the large cast materials, Recommend to use the high frequency welding
YC501
For the cutting of the steel and the stainless steel, Recommend to use the high frequency welding
What we do is not a deal, but create mutual happy cooperation!
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " Do the best to customer". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
