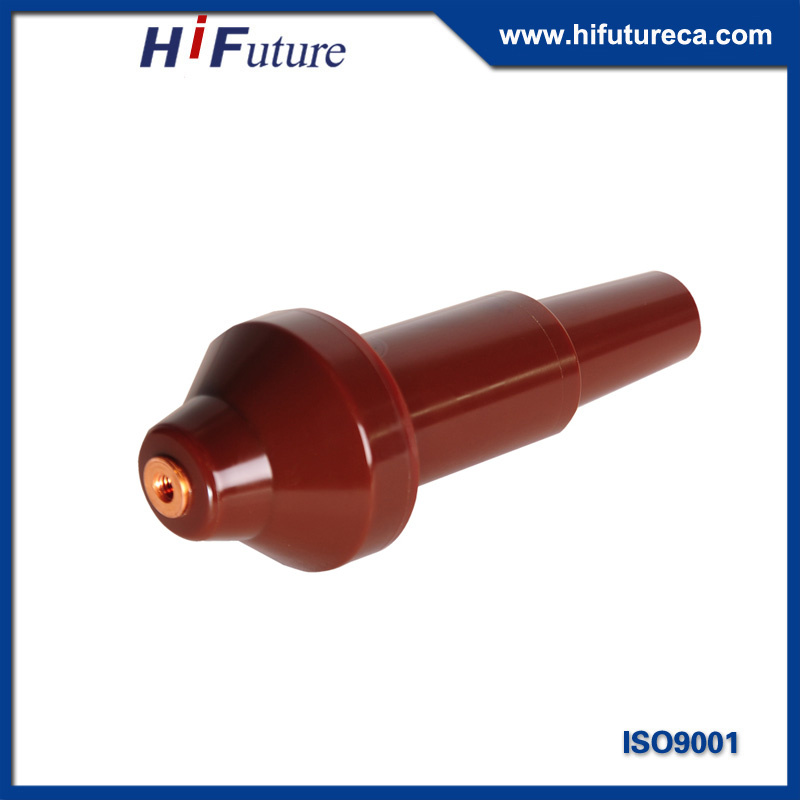

22kv APG Epoxy Switchgear Bushing

22kv APG Epoxy Switchgear Bushing
Price: US $ 28-36.9/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: IASB-24/630-I-CT
Total Length: 281mm
Max Outside Diameter: 109mm
Max System Voltage: 24kv
Break Over Current: 630A
Max Impulse Voltage: 125kv
Dry Withstand Voltage: 54kv
Application: High-temperature
Structure: Bushing Insulator
Type: A Type Insulator
Material: APG Epoxy Resin
Size Of Bearing Capacity: 5kn - 500kn
Brand: Hifuture

Product Description

22kV APG Epoxy Switchgear Bushing

Bushing and Terminal Cover: APG Epoxy Resin Product

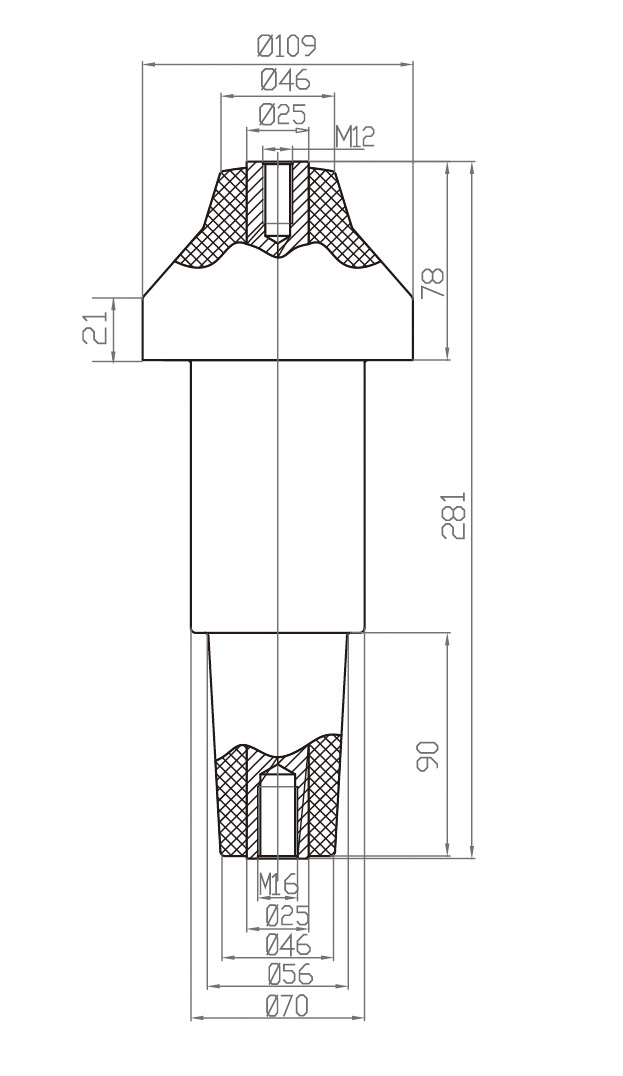

Specifications:
TypeTotal lengthMax Outside Diameter
(mm)
Max System Voltage
(kV)
Break over Current
(A)
Max Impulse Voltage
(kV)
Dry AC Withstand Voltage
(kV)
Connection Method of Incoming LineConnection Method of Outgoing
Line
Design Standard
(mm)
IASB-24/630-I-CT2811092463012554M12 Thread ConnectionM16Thread ConnectionEN50181IEC137


Product Description:
1. Advanced APG production technology, excellent gas tightness.

2. Product is designed according to EN50180, EN50181 and DIN47636, IEEE386.

3. Product apply to voltage calss of 12kV, 24kV, 36kV, 40.5kV, rated current 200A, 630A and 1250A.

4. All finished products 100% pass power frequency withstand voltage and partial discharge test (PD≤5pC, leakage current≤1X10-6 mbar I/s) according to IEC60502-4, IEC61442.

5. APG switchgear bushing fit with indicator.

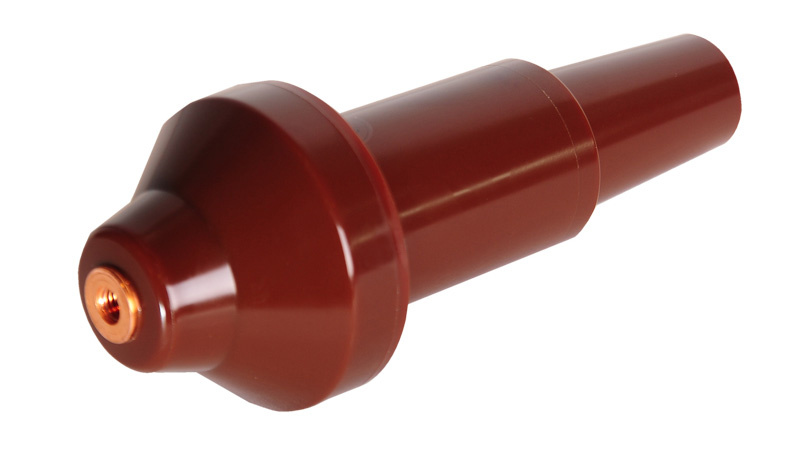

Product Show:






Shenzhen Hifuture Electric Co., Ltd. is committed to professional power distribution grid equipment and integrated solutions. Hifuture Electric comprises of three divisions: Electrical Insulating Material Division, MV & LV Equipment Division, and New Energy Division.

The Electrical Insulating Material Division, with its new macromolecule electrical insulation material technology, is specialized in silicone rubber material, APG products, and SMC material.

The division has developed a wide range of cold shrinkable Cable Termination, Cable Joint, Separable Connector, Busbars and Connectors, Surge Arrester, APG Epoxy Resin Bushing, Dry-type Tubing Busbars, and other accessories, up to 40.5kV.

Hifuture Electric is the earliest manufacturer in China of silicone rubber cable accessories. As early as in 2004, its Cable Connectors were already certified by KEMA. Today, Hifuture Electric is partner of the world's giants in the electric industry.

Its SMC products include Meter Box, Power Distribution Cabinet, modular combination type cabinets for Switchgear, Ring Main Unit, Compact Substation, Telecom cabinet, etc. Hifuture has its own mould processing center and is able to quickly design and develop new moulds for new products tailored to your requirements.

The MV & LV Equipment Division is mainly engaged in power Distribution Grid Equipment, including high-quality SF6 Gas-insulated Ring Main Unit, Low-voltage Switchgear, Power Distribution Switch/Control board, Cable Branching/Junction Cabinet, etc.

Hifuture Electric has been an approved supplier to the China State Grid and China Southern Power Grid.

Hifuture Solid Insulation Tubing Busbar is also manufactured in this division with TCE(Triple Co-Extrusion) technology. Hifuture is the pioneer in adopting TCE technology on Tubing Busbar. It has developed its own manufacturing equipment and is proud to have participated in setting the product standards.

The New Energy Division is a new business unit of Hifuture Electric. It started with Electric Vehicle Charging Equipment and is also ambitiously expanding into other new energy like PV Power. With its rich experience in Power Distribution Grid projects, Hifuture Electric provides customers with complete EPC service from MV/LV distribution up to the EV charging station. It has also developed its independent operating platform. Currently, it runs over 50 EV Charging stations on its platform system.

Hifuture Electric has devoted to overseas market since 2004. Its products and solutions have served over 500 cities and towns in China as well as some significant international events like the Beijing 2008 Olympics, Asian Games, World Expo, etc.

Since its establishment in 1999, Hifuture Electric has gained 95 national patents covering different product categories and was awarded "Shenzhen Hi-tech Enterprise" in 2001 and "National Hi-Tech Enterprise" in 2008.
