24kV 630A Epoxy Resin Switchgear Bushing
| Price: |
US $ 28-33/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
APGST-IASB-24/630-II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Break-Over Current: |
630A |
| Max Impluse Voltage: |
125kv |
| Design Standard: |
Hn52561 / IEC137 |
| Dry AC Withstand Voltage: |
54kv |
| Connection Method Of Inlet: |
M12 Thread |
| Connection Method Of Outlet: |
M16 Thread |
| Application: |
Low-voltage |
| Structure: |
Bushing Insulator |
| Type: |
A Type Insulator |
| Material: |
Epoxy Resin |
| Brand: |
Hifuture |
Product Description

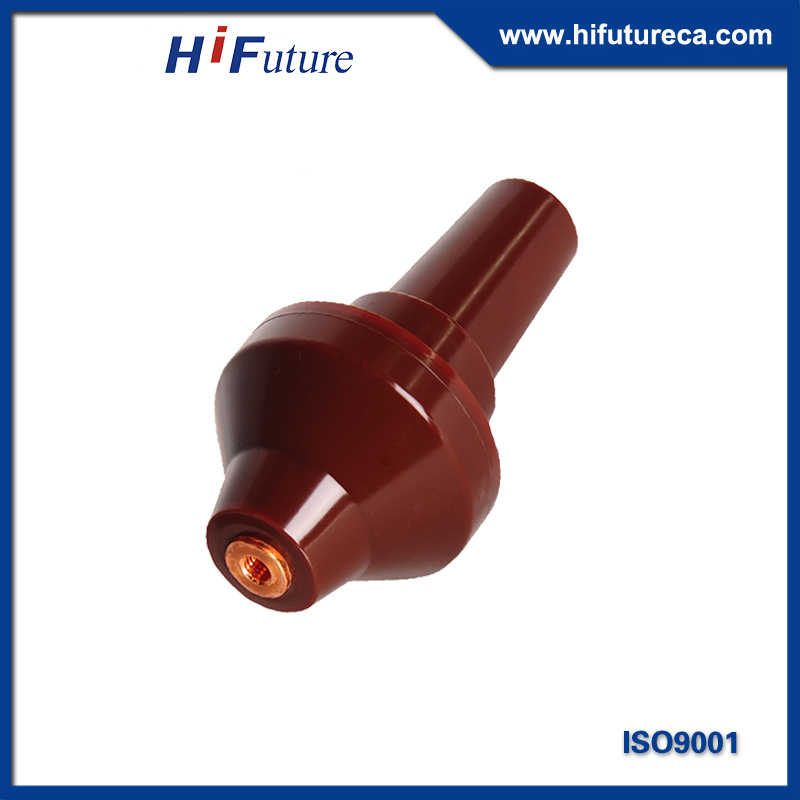

24kV/630A Epoxy Resin Switchgear BushingInrtroductionApplied to 24kV power system, made from epoxy resin and copper tube, connect between switchgear and connector.
Features and Advantages
1. Design meets HN52561 and IEC137.
2. All products pass power frequency withstand voltage test and partial discharge test (discharge ≤5pC) as per IEC60502-4 and IEC61442 before delivering.
3. Adopt APG production technology, with good air impermeability.

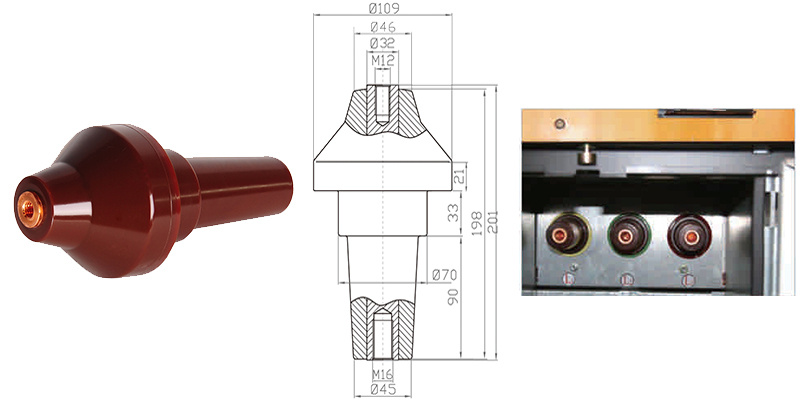

4. Ability to design and meet the need from different customers.Technical Data| Type | Total length
(mm) | Max Outside
Diameter(mm) | Max System
Voltage(kV) | Breakover
Current(A) | Max Impulse
Voltage(kV) | Dry AC Withstand
Voltage(kV) | Connection Method
of Incoming Line | Connection Method
of Outgoing Line | Weight (g) |
| IASB-24/630-II | 201 | 109 | 24 | 630 | 125 | 54 | M12 Thread Connection | M16 Thread Connection | 1960 |

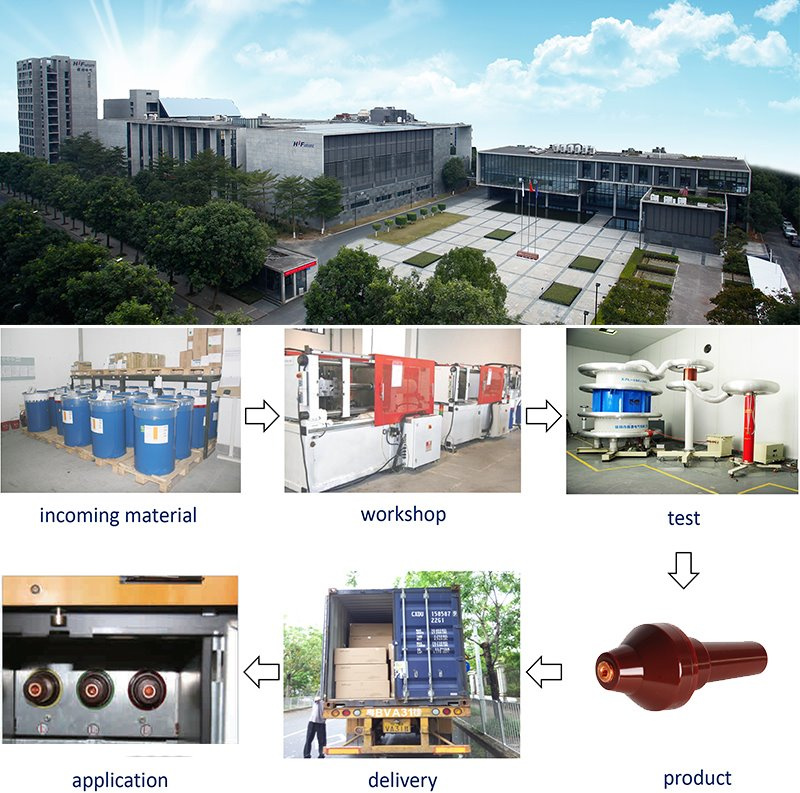

Company profile and workshopsShenzhen Hifuture Electric Co., Ltd, found in 1999 and located in Shenzhen, China, is committed to professional power distribution grid equipment and integrated solutions. Products comprises of cold shrinkable Cable Termination, Cable Joint, Separable Connector, Busbars and Connectors, Surge Arrester, APG Epoxy Resin Bushing, Dry-type Tubing Busbars, and other accessories, up to 40.5kV.
More details about our company and products, please visit our website: www.hifutureca.com.
Looking forward to cooperating with you.
