| Prod Model: |
7.1.9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Advantage: |
Fast Cutting and Long Cutting Life |
| Shape: |
Round |
| Manufacturing Arts: |
Welding |
| Customized: |
Customized |
| Graininess: |
30/35, 35/40 |
| Thickness: |
2.2mm |
| Kind: |
Diamond Saw Blade |
| Usage: |
Stone and Concrete Cutting |
| Saw Blade External Diameter: |
230mm |
Product Description

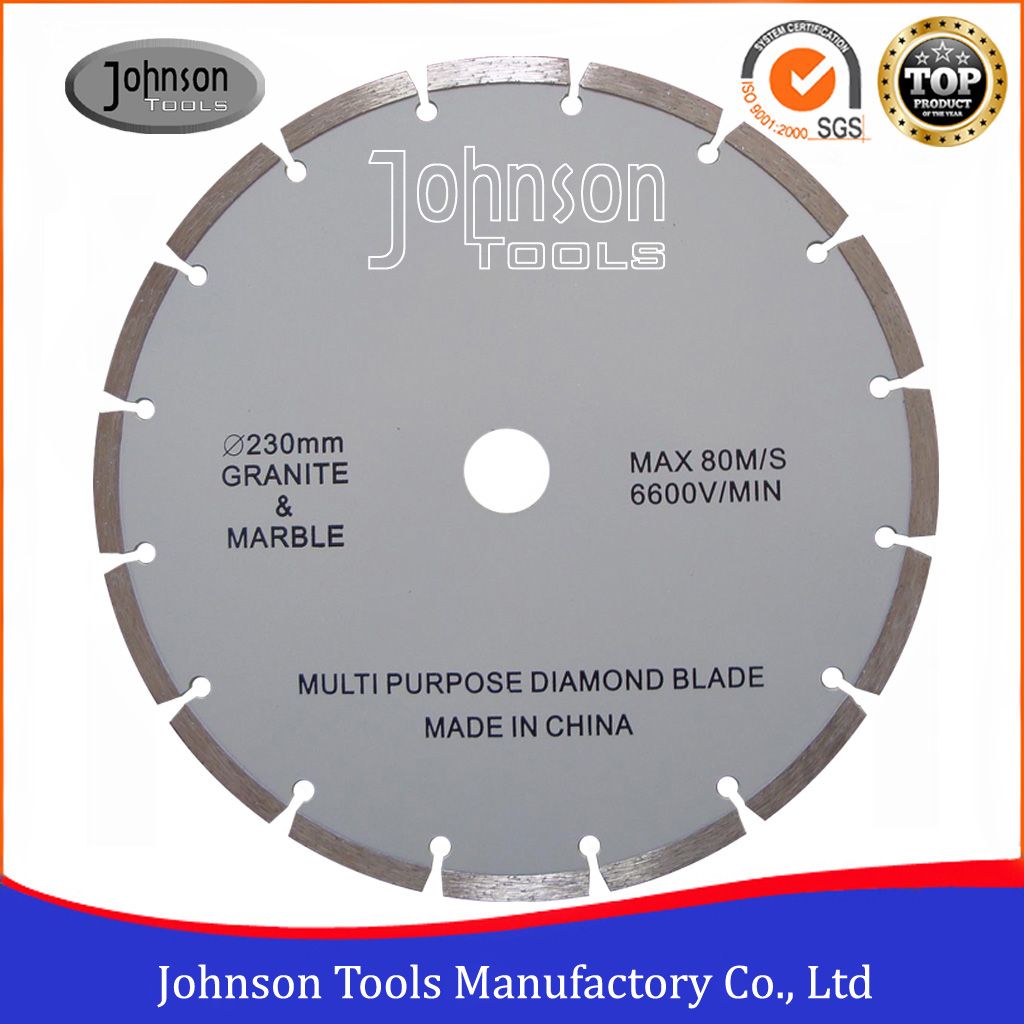

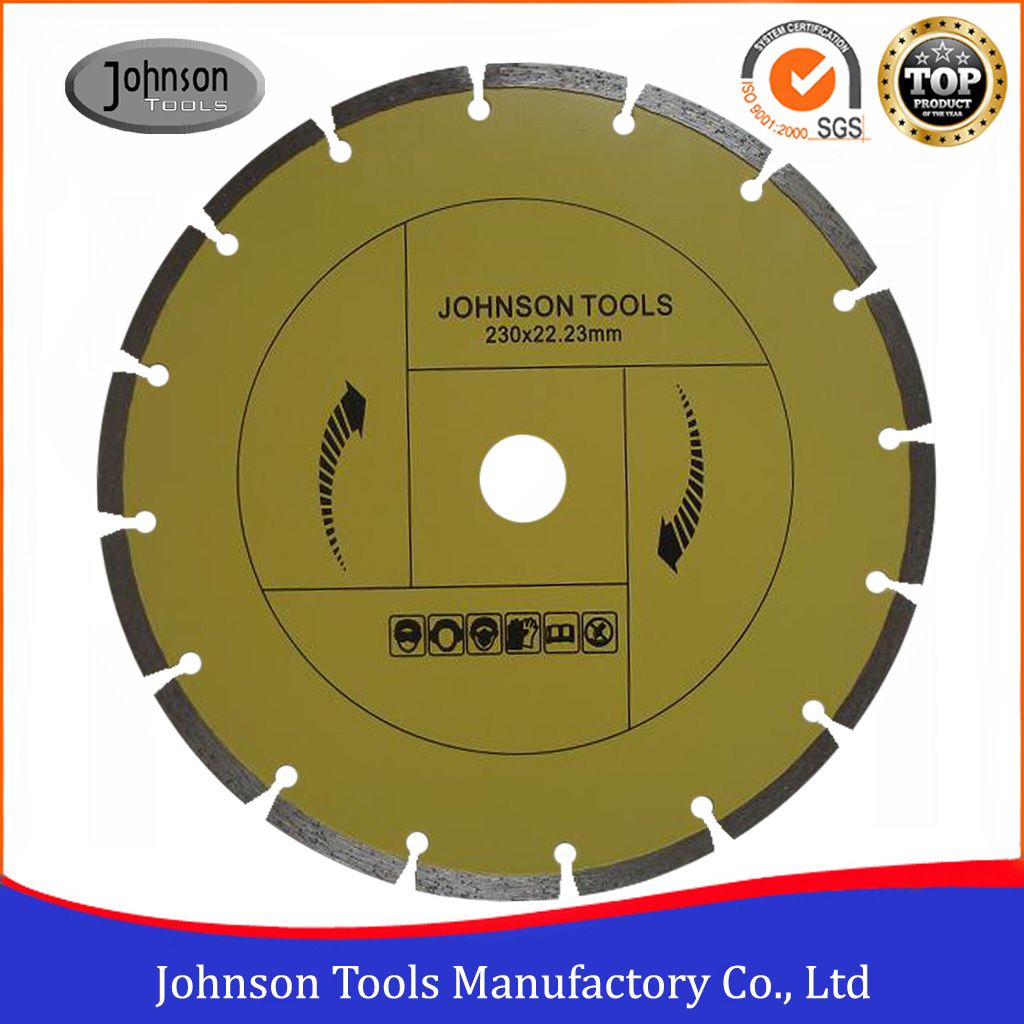

230mm general purpose Sintered Segment Saw Blade for StoneWhy choose us:
1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade.
4. Quick Delivery time.
5. One-Day reply to your inquiry and question.1. Description of 230mm general purpose Sintered Segment Saw Blade for Stone230mm sintered segmented saw blade are fixed in angle grinders, high speed power saws, circular saws and masonry saws for General Purpose, Marble, Granite, block, concrete, pavers and brick, hard concrete, etc. Fast cutting, good cutting life.
2. Features of 230mm general purpose Sintered Segment Saw Blade for Stone1. Technology:
Sintered saw blade.
2. Application:
General Purpose, Marble, Granite, block, concrete, pavers and brick, hard concrete, etc.
3. Dry or Wet:
Suitable for Dry and wet cutting.3. Specification information of 230mm general purpose Sintered Segment Saw Blade for StoneBlade data:
Diameter: 230mm
Segment thickness: 2.6mm.
Segment height: 7mm or 8mm or 10mm or 12mm.
Segment number: 18nos.
Center hole: 20 or 22.23mm or 25.4mm.Details Spec.: | Outside diameter | Segment specification | Hole | Teeth No. | Cutting material |
| Thickness | Height |
| 230mm | 2.6mm | 7mm | 20/22.23/25.4mm | 18nos | General purpose |
| 230mm | 2.6mm | 8mm | 20/22.23/25.4mm | 18nos | General purpose |
| 230mm | 2.6mm | 10mm | 20/22.23/25.4mm | 18nos | General purpose |
| 230mm | 2.6mm | 12mm | 20/22.23/25.4mm | 18nos | General purpose |
Other size we could do | Item No. | Inch | mm | Teeth number | Segment Thickness | Segment Height | Inner hole |
| SGP-105 | 4 | 105 | 8nos | 1.8 | 7/10 | 16/20 |
| SGP -110 | 4.3 | 110 | 8nos | 1.8 | 7/10 | 16/20 |
| SGP -115 | 4.5 | 115 | 9nos | 1.8 | 7/10 | 20/22.23 |
| SGP -125 | 5 | 125 | 9nos | 1.8 | 7/10 | 20/22.23 |
| SGP -150 | 6 | 150 | 12nos | 2 | 7/10 | 20/22.23 |
| SGP -180 | 7 | 180 | 14nos | 2 | 7/10 | 20/22.23 |
| SGP -200 | 8 | 200 | 14nos | 2.2 | 7/10 | 20/22.23 |
| SGP -230 | 9 | 230 | 16nos | 2.2 | 7/10 | 20/22.23 |
| SGP -250 | 10 | 250 | 18nos | 2.4 | 10 | 20/25.4 |
| SGP -300 | 12 | 300 | 22nos | 3 | 10 | 20/25.4 |
| SGP -350 | 14 | 350 | 24nos | 3.2 | 10 | 25.4 |
4. Packing and Shipping of 230mm general purpose Sintered Segment Saw Blade for StoneEach saw blade is packed in white box or colored box packing, then according to the size, 10-100pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term:
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7. Certification:
8. Our exhibition:
9. FAQ.
Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
10. Company Information
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries. We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.
