| Prod Model: |
6.2.16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
230mm |
| Segment Specification: |
4.0X8mm |
| Delivery Time: |
Around 20days |
| Shape: |
Round |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Customized: |
Customized |
| Kind: |
Diamond Saw Blade |
| Brand: |
Johnsontool |
| Saw Blade External Diameter: |
230mm |
Product Description

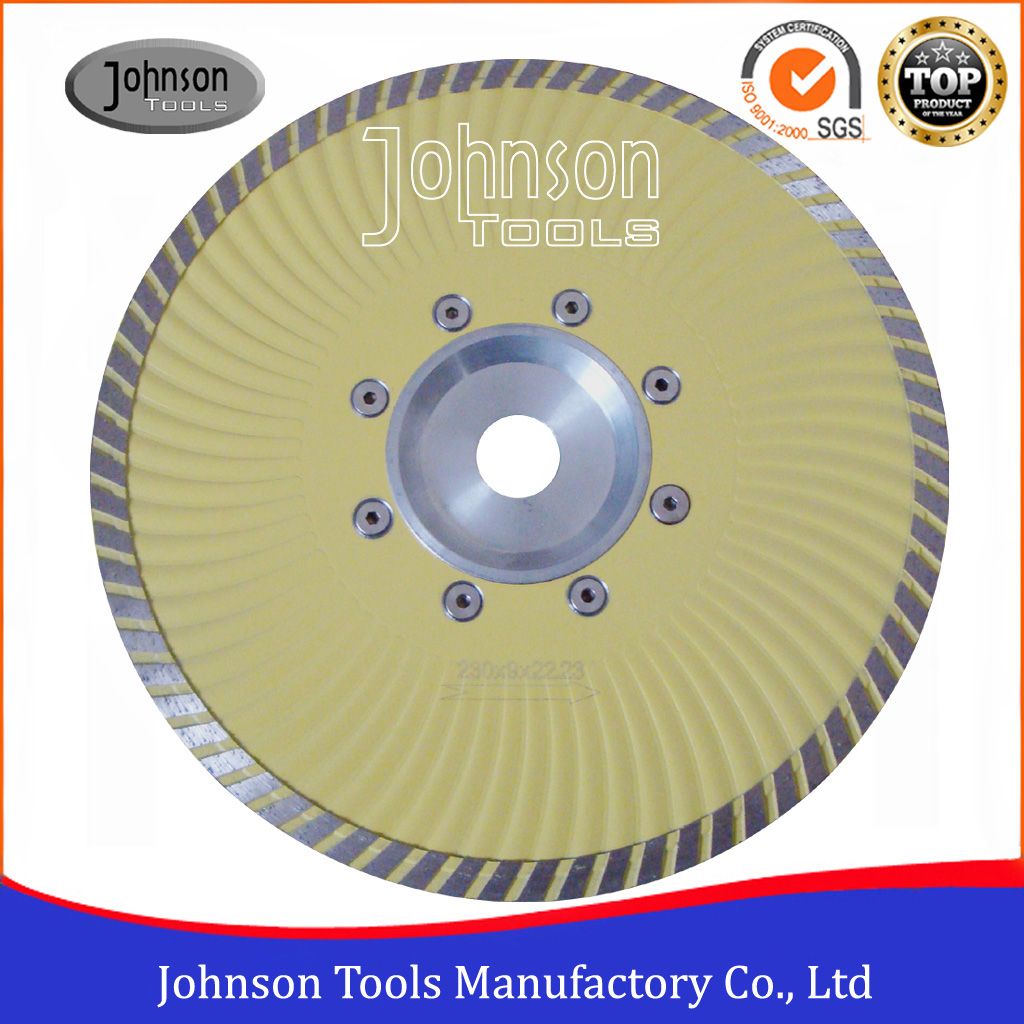

230mm granite cutting blade diamond Turbo Wave Saw Blade for Cutting Stone
Why choose us:
1.SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2.Well approved by our worldwide clients, export more than 70 countries.
3.Success formula for concrete saw blade
4.Quick Delivery time.
5.One-Day reply to your inquiry and question.
1. Description of 230mm granite cutting blade diamond Turbo Wave Saw Blade for Cutting Stone
Wave turbo Saw Blade with protective teeth. Wave turbo saw blade, perfect blade for cutting granite, roof tiles, bricks, concrete and stones, etc. Wave parts on the steel discs make heat releasing and dust ejecting more effective. It helps the blades to cut the materials more faster. Outer diameter from 105mm to 230mm. Center hole of sintered wave turbo blade: 16mm, 20mm, 22.23mm, also can do with Flange M14 or 5/8"-11.
2. Features of 230mm granite cutting blade diamond Turbo Wave Saw Blade for Cutting Stone
Continuous Rim Narrow Teeth Turbo Blade with specially designed wave-core for added core strength, wobble control and easy carries away debris
1). Sharp, durable, long service life.
2). Designed to strengthen the impact resistance and weld strength carbide serrated.
3). Change the production process, high precision, smooth cutting surface
Advantages on wave turbo saw blade:
Outer diameter can be done from 105mm to 230mm
Segment height can be done with 7mm or 10mm.
Center hole can be done with 16mm, 20mm, 22.23mm, and 25.4mm.
Machine: Angle grinder, Table saw, Hand held saw.
Super Fast Cut with Minimum Chipping, even on dry cut
Use on Angle Grinder, Wet Stone Saw or Circular Saw
Cuts Granite, Marble, Stone, concrete, etc.
Use dry and wet cutting.
Balance the blade and protect the blank
3. Specification information of 230mm granite cutting blade diamond Turbo Wave Saw Blade for Cutting Stone
Details specification:
| Item No. | Inch | Diameter | Height | Inner Hole |
| TW -230 | 9" | 230 | 7 | 20/22.23 |
| TW -230 | 9" | 230 | 10 | 20/22.23 |
Other specifications we can offer
| Item No. | Inch | Diameter | Height | Inner Hole |
| TW-105 | 4" | 105 | 7/10 | 20/16 |
| TW -115 | 4.5" | 115 | 7/10 | 20/16 |
| TW -150 | 6" | 150 | 7/10 | 20/22.23 |
| TW -180 | 7" | 180 | 7/10 | 20/22.23 |
| TW -200 | 8" | 200 | 7/10 | 20/22.23 |
4. Packing and shipping of 230mm granite cutting blade diamond Turbo Wave Saw Blade for Cutting Stone
According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there are steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6.Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7.FAQ.
Q: How to place order to your company?
Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
After-Sale Service: Track the goods, learn the products' performance.
Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement
