230mm Sintered Diamond Saw Blade for Concrete Cutting

Name: 230mm Sintered Diamond Saw Blade for Concrete Cutting
Brand: tool-buy.com
SKU: 808287895
Availability: InStock
Rating: 4.6 (77 reviews)

Price:	US $ 4.7-8.2/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Johnson Tools Manufactory Co., Ltd.

Showroom Product Company Profile

Prod Model:	3.1.8
Color:	at Your Request
Sample:	Available
Brand:	Johnson Tools
Shape:	Round
Type:	Sintered Segment Saw Blade
Usage:	Cutting Concrete
Manufacturing Arts:	Sintered
Customized:	Customized
Thickness:	3.2mm
Height:	7/8/10/12mm

Product Description

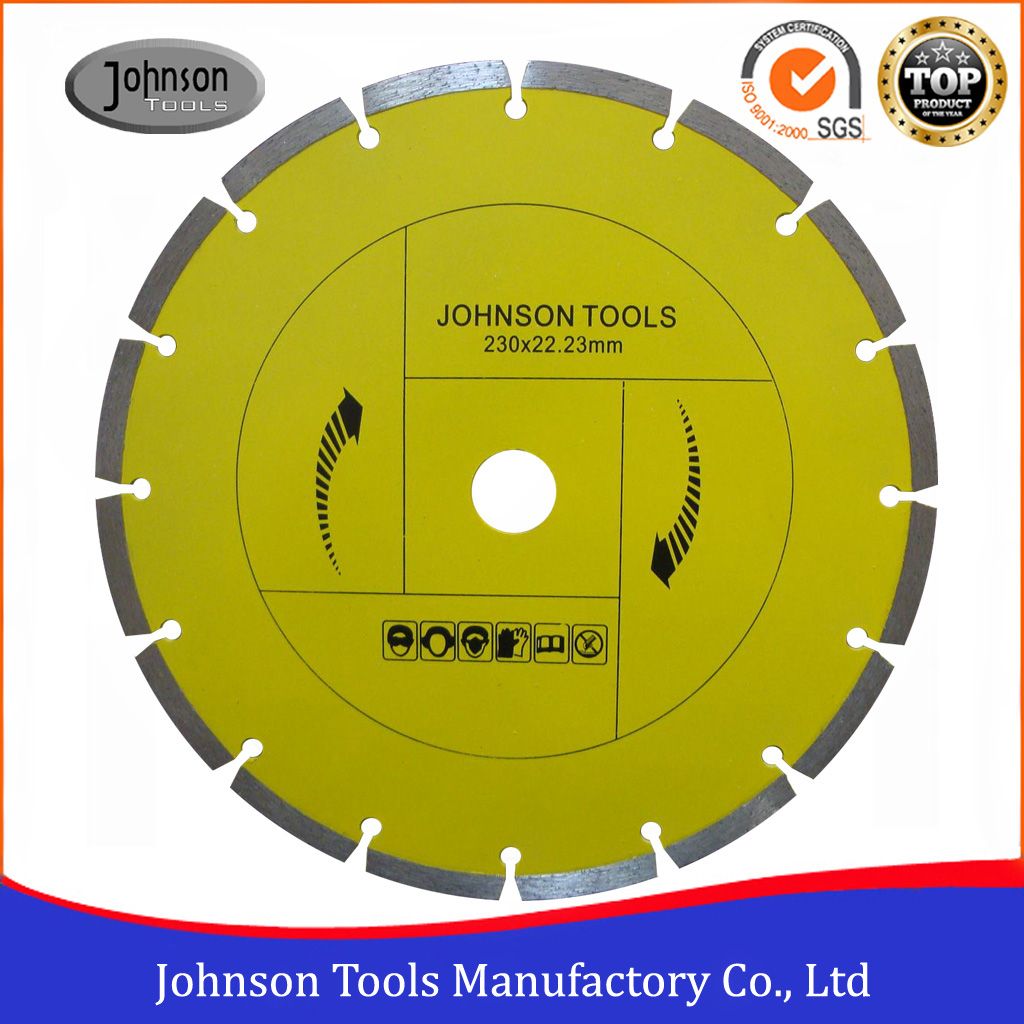

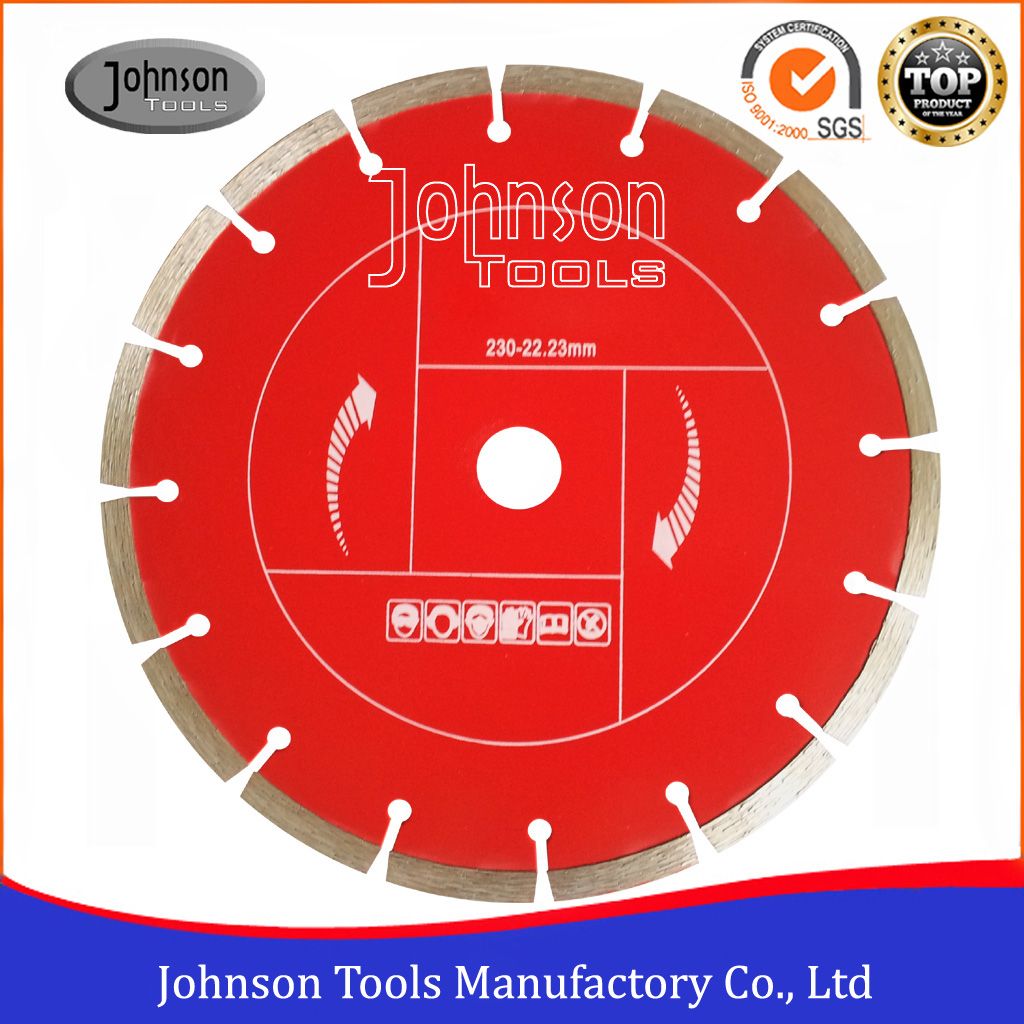

230mm Sintered Diamond Saw Blade for Concrete Cutting

Why choose us:

1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade.
4. Quick Delivery time.
5. One-Day reply to your inquiry and question.

1. Description of 230mm Sintered Diamond Saw Blade for Concrete Cutting

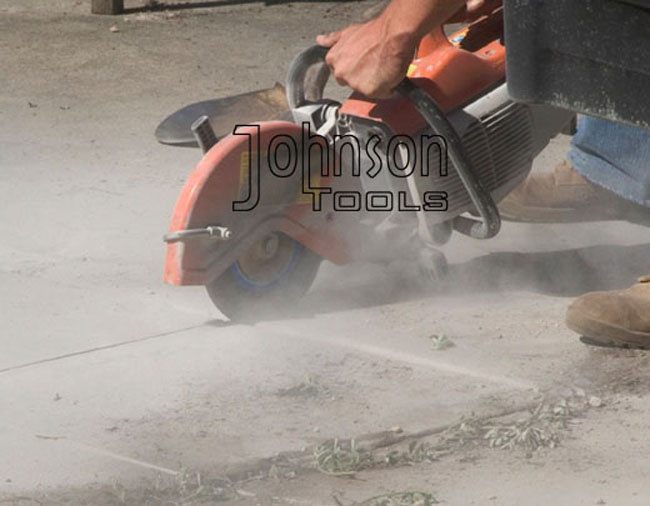

230mm sintered segmented saw blade are fixed in angle grinders, high speed power saws, circular saws and masonry saws for all kinds of concrete, fast cutting, good cutting life.

2. Features of 230mm Sintered Diamond Saw Blade for Concrete Cutting

Advantages:
1. Fast & stable Dry or wet cutting.
2. Long lifespan and stable performance.
3. High cutting efficiency to save energy consumption.
4. Sintered technology make sure good cutting, and long lifetime.

3. Specification information of 230mm Sintered Diamond Saw Blade for Concrete Cutting

Specification data:
Diameter: 230mm
Segment thickness: 2.6mm.
Segment height: 7mm or 8mm or 10mm or 12mm.
Segment number: 18nos.
Center hole: 20 or 22.23mm or 25.4mm.

Details Spec.:

Outside diameter	Segment specification		Hole	Teeth No.	Cutting material
Outside diameter	Thickness	Height	Hole	Teeth No.	Cutting material
230mm	2.6mm	7mm	20/22.23/25.4mm	18nos	Concrete
230mm	2.6mm	8mm	20/22.23/25.4mm	18nos	Concrete
230mm	2.6mm	10mm	20/22.23/25.4mm	18nos	Concrete
230mm	2.6mm	12mm	20/22.23/25.4mm	18nos	Concrete

Other size we could do

Item No.	Inch	mm	Teeth number	Segment Thickness	Segment Height	Inner hole
SGP-105	4	105	8nos	1.8	7/10	16/20
SGP -110	4.3	110	8nos	1.8	7/10	16/20
SGP -115	4.5	115	9nos	1.8	7/10	20/22.23
SGP -125	5	125	9nos	1.8	7/10	20/22.23
SGP -150	6	150	12nos	2	7/10	20/22.23
SGP -180	7	180	14nos	2	7/10	20/22.23
SGP -200	8	200	14nos	2.2	7/10	20/22.23
SGP -230	9	230	16nos	2.2	7/10	20/22.23
SGP -250	10	250	18nos	2.4	10	20/25.4
SGP -300	12	300	22nos	3	10	20/25.4
SGP -350	14	350	24nos	3.2	10	25.4

4. Packing and Shipping of 230mm Sintered Diamond Saw Blade for Concrete Cutting

Each saw blade is packed in white box or colored box packing, then according to the size, 10-100pcs put in an export standard carton, gross weight per carton is limited within 20-25kg.

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.

5. Payment term:

T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

6. Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!

7.Clients Feedback:

8. Certification:

9. Our exhibition:

10. FAQ.

Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.

Why clients choose Johnson?

1) Quality & Service:

We, Johnson Tools Manufactory Co., Ltd have very strict quality control system. There is one QC team in our factory on examination of every product before dispatching. We try our best to achieve zero defects.

2) Convenience of One-Stop Sourcing:

On stone and construction industry, from cutting, grinding, drilling, polishing, profiling field, till stone and its cutting machine, we can help you select the best tools, finish your project perfectly.

3) Flexible payment term:

T/T, Letter of Credit, PayPal, West Union, Credit Card, etc.

4) Delivery time:

Around 5-30days based on quantity of clients' order.

Repeated orders, we help our clients prepare one order's raw materials to shorten the producing time.

5) Good evaluation of our clients' from our deferent's countries.

6) Sales Teams:

We have a friendly, enthusiastic, energetic sales team, ready to service with you all the time.

Professional Manufacturer on Diamond Tools since Year 2000.

Above 95% Diamond Tools products export to Six Continent, over 70 Countries.

Our diamond tools differ diamond Cutting tools, diamond Grinding tools, diamond Polishing tools, diamond Drilling tools, and other accessories & stone cutting machine. Wildly used on Stone and Construction industry.

*****Customer Evaluation*****

To do the same bond as we use is very important. We did many tests at your blades And the performance is very good. -- Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade. -- Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete. -- Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed. -- Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s a very good indice! -- Julia

And its good, We need more: ) Saw blade 20X 600mm 20X 800mm 3X 1000mm 10X1200mm.

-- Kovacevic

Welcome to join us to be a Johnson Tools partner!

Let's work together to make the business better and better.
