250-800mm Diamond Blade Machine Saw Blade for Cutting Granite Block

Name: 250-800mm Diamond Blade Machine Saw Blade for Cutting Granite Block
Brand: tool-buy.com
SKU: 756053615
Availability: InStock
Rating: 4.7 (39 reviews)

Price:	US $ 28-36/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Fujian Quanzhou Huazuan Diamond Tools Co., Ltd.

Showroom Product Company Profile

Prod Model:	HZ5275
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Segment Material:	Diamond
Segment Type & Shape:	Normal, Turbo; Sandwich, Groove, etc
Base & Matrix Type:	Normal, Silent
Slot Type:	V Shape, U Shape(Narrow or Wide), Key Hole Shape
Manufacturing Art:	Welding
Usage & Application:	Cutting Granite, Marble, Sandstone, Concrete
Perfromance Comparison:	Sharp Diamond Blade, Wearable Diamond Blade
Quality Grade:	High, Medium, Normal
Thickness:	5mm
Saw Blade External Diameter:	800mm

Product Description

250-800mm diamond blade machine saw blade for cutting granite block
Diamond Saw Blades' Applications and Features:

Descriptions of goods and Cutting performance	Applications	Suitable for granite ,mable,limestone ,sandstone, basalt , quartz etc stone cutting
	Welding	High-frequency weld , Laser weld , Brazed
	Slot	Narrow slot/Key slot/U slot
	Normal or Silent	Silent blade or Normal blade as you request
	Blade Diameter (General purpose)	10" - 140" as requested
	Segment Qty	17- 180 segments as requested
	Segment Height	Dry H10/12mm , Wet H12-20mm
	Inner Hole	30mm/50mm/60mm
	Type	Continuous rim & Segmented saw blade
	More Sharpness	Diamond saw blade could survive from any destructive testing, the linear cutting speed reaches 7+ meter/min easily.
	Longer Life-Span	Diamond saw blade have 50%+ longer life-span than common blades. For example: Asphalt cutting blade life-span reaches 88.5 square meter.
	High CPR	We are keep trying to provide the best possible service for our customers, and offering the best world top quality products with as low as possible price.
	Effectively	Diamond saw blade reduces the usage of electricity and the noise level during the op

Diamond Saw Blades Specifications:

Out Diameter		Bore Diameter(mm)	Dimension of teeth(mm)		NO. of Teeth
Inch	mm	Bore Diameter(mm)	Thickness	Height	NO. of Teeth
10''	250	50/60	2.6/2.8	8/10/12	17
12''	300	50/60	2.8/3.0	8/10/12	21
14''	350	50/60	3.0/3.2	8/10/12	24
16''	400	50/60	3.4/3.6	8/10/12	28
18''	450	50/60	3.8/4.2	8/10/12	32
20''	500	50/60	4.0/4.2	8/10/12	36
22''	550	50/60	4.6/4.8	8/10/12	40
24''	600	50/60	4.6/4.8	8/10/12	42
26''	650	50/60	5.0/5.2	8/10/12	46
28''	700	50/60	5.0/5.2	8/10/12	50
30''	750	50/60	5.2/5.6	8/10/12	54
32''	800	50/60/80	5.5/6.0	8/10/12	57
36''	900	50/60/80/100	6.0/6.8	12/13/15	64
40''	1000	50/60/80/100	6.0/7.0	12/13/15	70
48''	1200	50/60/80/100	6.5/7.5	12/13/15	80
52''	1300	50/60/80/100	7.0/7.6	12/13/15	88
56''	1400	50/60/80/100	8.2/8.8	12/13/15	92
64''	1600	50/60/80/100	8.4/9.0	12/13/15/20	108
72''	1800	50/60/80/100	9.1/9.7	12/13/15/20	120
80''	2000	50/60/80/100	10.5/11	12/13/15/20	128
88''	2200	50/60/80/100	10.5/11	12/13/15/20	132
100''	2500	50/60/80/100	11/12	12/13/15/20	140
120''	3000	50/60/80/100	11.5/12.5	12/13/15/20	160
140''	3500	50/60/80/100	12/12.5	12/13/15/20	180
Other specifications are available upon request.

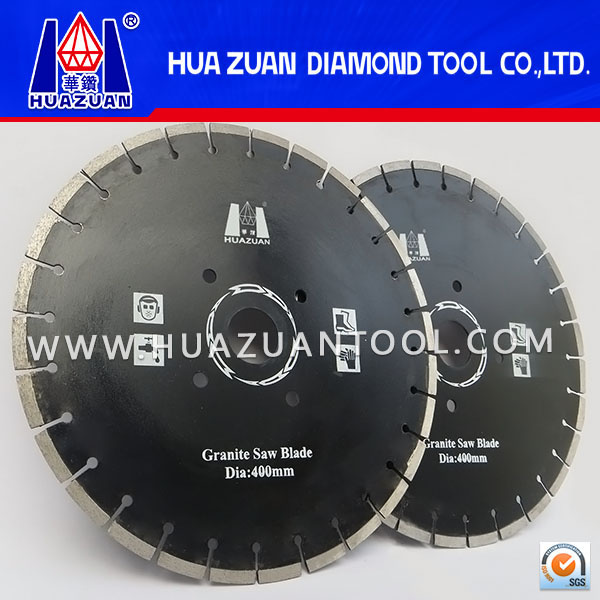

Product Pictures:

Company Introduction:

Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.
We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients,suppliers and staffs.In recent years,company make and practice a strategic plan to reinforce a high quality production system,create a consultant service team" and reached great success.
At present,China diamond tool constantly embody the competitiveness in the world ,we expect to contribute ourselves to change the poor quality image of China diamond tool in the world with our effect.

Quanzhou Huazuan Diamond Tools Co., Ltd., established in 1994 and covering an area of more than 10, 000 square meters, is an enterprise with more than 20 years' experience in research, development and production. "HUAZUAN" means made in China, as solid and stable as diamond. Driven by diamond saw blade, diamond segment and diamond wire saw as for main products, company produce a series of high quality diamond grinding and polishing tools. Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers. With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology, and build the outstanding business relationship with more than 50 countries and region partners. We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients, suppliers and staffs. In recent years, company make and practice a strategic plan to"reinforce a high quality production system, create a consultant service team" and reached great success. At present, China diamond tool constantly embody the competitiveness in the world, we expect to contribute ourself to change the poor quality image of China diamond tool in the world with our effort.
