| Prod Model: |
89003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Gold |
| Size: |
10 Inches |
| Function: |
Wood Cutting and Aluminum Cutting |
| Quality: |
Professional |
| Warranty: |
12 Months |
| Saw Type: |
Miter Saw |
| Power Source: |
Electricity |
| Type: |
Portable |
| Application: |
Wood and Metal Cuttng Saw |

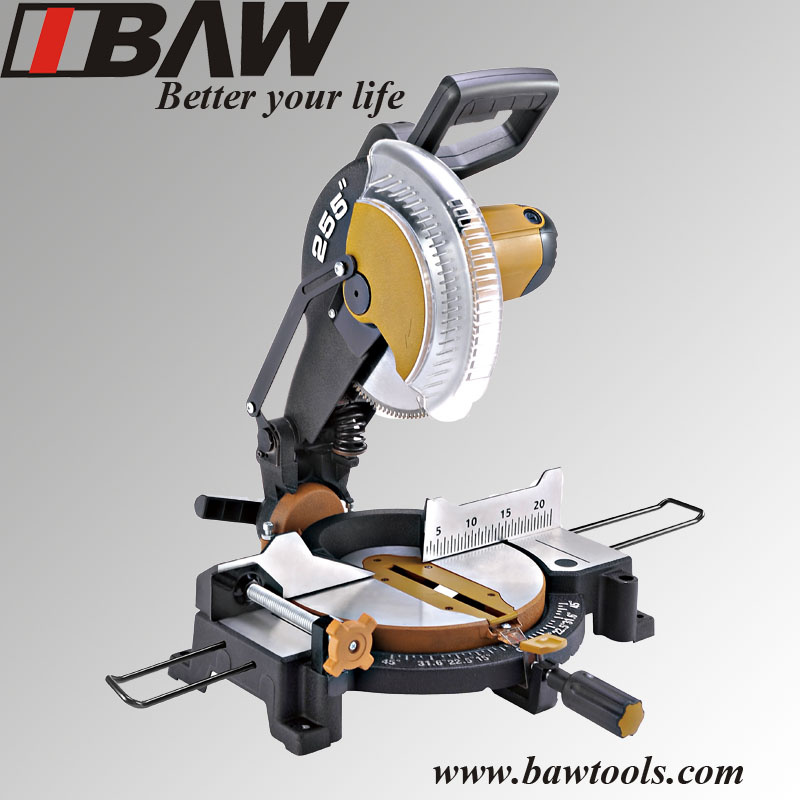

Product Description
Features:
1). Largest crown molding cutting capacity in its class
2). Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity
3). Dual rear-handle bevel lock is easily accessible and adjusts 0° -45° (left and right), with positive stops at 0° , 22.5° , 33.9° And 45° (left and right)
4). Ergonomic rubberized horizontal D-handle design for better fit and added comfort
5). Easy-to-read dual bevel scale for more precise adjustments
6). See-through blade guard system for greater visibility of blade and line of cut
7). Oversized trigger switch for better fit, added comfort and easier operation
8). Dust bag for cleaner working environment
Technical Parameters:
Rated Input Power: 1800W
No-Load Speed: 6000r/min
Blade Dia: 255mm
Rated Voltage: 220V
Rated Frequency: 50Hz
Max cutting capacity (0° ): 100*110mm (H x W)
(45° ): 100*85mm (H x W)
Head tilting (0° ): 90*110mm (H x W)
(45° ): 40*86mm (H x W)
Packing Information:
1 PCS each carton
Carton Size: 60*43.5*42cm
STD 20 255 PCS
STD 40 574 PCS
STD 40HQ 620 PCS
|
Technical Paremeter |
|
Rated Voltage |
220V |
|
Rated Frequency |
50Hz |
|
No-load Speed |
6000 r/m |
|
Rated In-put Power |
1800W |
|
Blade Diameter |
255mm |
|
Blade Bore |
25.4mm |
|
Max Cutting Capacity 0° |
100*110mm (H*W) |
|
Max Cutting Capacity 45° |
100*85mm (H*W) |
|
Head Tilting 0° |
90*110mm (H*W) |
|
Head Tilting 45° |
40*86mm (H*W) |
|
|
|
Packing Information |
|
Packing Way |
Color Box |
|
Quantity in each Carton |
1 pcs/Carton |
|
Carton Size |
60*43.5*42 cm |
|
Gross Weight |
15 kgs/pcs |
|
Net Weight |
12 kgs/pcs |
|
STD 20 |
237 pcs |
|
STD 40 |
492 pcs |
|
STD 40HQ |
620 pcs |
BAW Tools is one of the top professional power tools manufacturers in China with more than 8 years' manufacturing and R&D experience. BAW Tools is especially in manufacturing circular saw, miter saw and cut-off machine. We can offer our customer full range of saws from 5 inch to 14 inches with best quality.
BAW factory covers an area of 10, 000 square meters with more than 300 staffs including 10 technical engineers and 20 QC personal. In this case, BAW Tools can offer our customer with newest products every year with professional quality.
Our company has advanced production equipment, modern management, professional technicians and a strict quality control system, and our main production department includes a motor manufacturing workshop, an Iron stamping workshop, an aluminum casting workshop, a painting workshop and an assembly workshop. All the main parts of products are made by ourselves to be cost-effective, and we strive to offer the best quality and the lowest price to reward our customers.
BAW Tools warmly welcomes all the friends to visit our company for more information, and we would like to establish a permanent relationship with customers based on mutual benefit.
