| Prod Model: |
SS-2700 |
| Model: |
Ss-2700 |
| Name: |

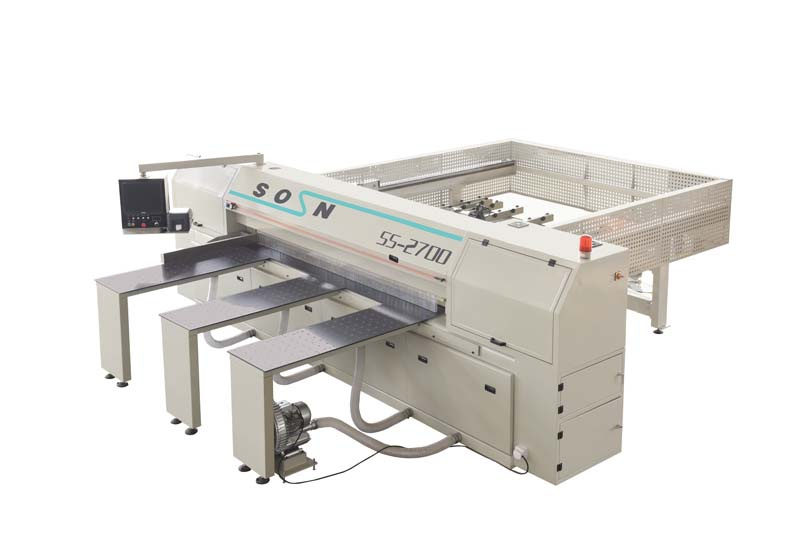

Computer Panel Saw |
| Max. Cutting Length: |
2700mm |
| Max. Cutting Height: |
80mm |
| Max. Gripper Opening: |
105 |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
CE |
| Type: |
Computer Beam Saw |
Product Description
| CAPACITY | Max. cutting length | 2700 mm |
| Max. cutting width (depth) | 2400/2700 mm |
| Max. cutting height | 80 mm |
| Max. gripper opening | 100 mm |
| Max. sawblade projection | 100 mm |
| MAIN SAWBLADE | Main sawblade motor | 15HP (11.2KW) |
| Main sawblade diameter | Ø405 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Main sawblade speed | 4,800 R.P.M. |
| SCORING SAWBLADE | Scoring sawblade diameter | Ø176 mm |
| Spindle diameter | Ø 1"or Ø30mm |
| Scoring sawblade speed | 6,800 R.P.M. |
| SAW CARRIAGE | Saw carriage drive motor | 3HP (1.5KW)(Inverter) |
| Forward Speed(adjustable) | 0~45 M/min |
| Return Speed | 70 M/min |
| PUSHER | Pusher system drive motor | 1KW |
| Pusher system pull speed | 5~70 M/min |
| Pusher system push speed | 5~60 M/min |
| OTHERS | High pressure blower motor | 5HP (2.2KW) |
| Side aligner motor | 90W |
| Working air pressure | 5~6 kg/cm2 |
| Table height from floor | 880 mm |
| Grippers | 7units |
| Floating table | 3 units |
Our quality
More than sixteen years manufacturing experience lead us to a mature and professional quality guarantee with best price.
Professional assembly line work and strict quality test system can ensure your high quality requirement
Company Information
We are a professional manufacturer in the line of woodworking machinery for many years.With CE certification,our products are popular and sell well in many countries and regions, like,Iran,Russia,Brazil, EN, the whole America , and so on. Time has tested the quality of our products and the good credit of our company. Now there are still many large orders send to us every day from far away.
Our company purpose:"credit first, customer supreme" to the quality and development. Welcome to our company for visiting, learning ,teaching, negotiating, and cooperating
if you have any questions,please contact me cherry
web:www.sosnmachinery.com
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
