| Prod Model: |
HV-23 |
| Casting: |
Lost Wax Casting |
| Documentation: |
Ce Documentation |
| Finishing: |
Lathe |
| Medium: |
Wog |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Nominal Pressure: |
1000psi/Pn69 |
| Function: |
Control Valve |
| Temperature: |
-10 to 150 Degrees Centigrade |
Product Description

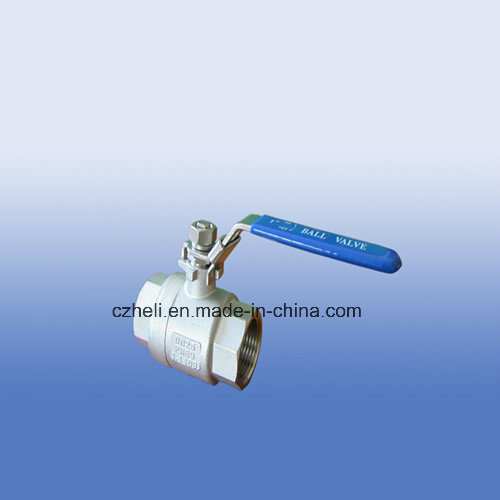

2pc standard full port ball valve
Product No.:HV-23
Working pressure:1000PSI(PN69)
Working temperature:-10oC-150oC
Suitable medium:water oil gas
Threaded end:BSPT NPT ISO7/1 ISO228 BSP DIN2999
Material:304/316 CF8M/CF8 1.4408/1.4308

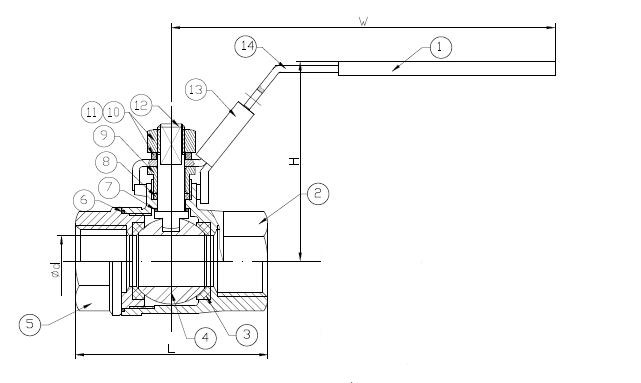

| SIZE | d | L | H | W |
| 1/4" | 9.2 | 54 | 49 | 98 |
| 3/8" | 12.8 | 54 | 50 | 98 |
| 1/2" | 15 | 57 | 50 | 100 |
| 3/4" | 20 | 68 | 53 | 100 |
| 1" | 25 | 80 | 68.5 | 128 |
| 11/4" | 32 | 91 | 72.5 | 128 |
| 11/2" | 38 | 103 | 81 | 143 |
| 2" | 50 | 124 | 99 | 143 |
| 21/2" | 65 | 160 | 119 | 222 |
| 3" | 80 | 185 | 132 | 222 |
| 4" | 100 | 207 | 180 | 335 |
| NO. | NAME | MATERIAL | Q'TY |
| 1 | HANDLE COVER | PLASTIC | 1 |
| 2 | BODY | CF8M/CF8 | 1 |
| 3 | BALL SEAT | PTFE | 2 |
| 4 | BALL | CF8M | 1 |
| 5 | CAP | CF8M/CF8 | 1 |
| 6 | JOINT GASKET | PTFE | 1 |
| 7 | THRUST WASHER | PTFE | 1 |
| 8 | STEM PACKING | PTFE | 1 |
| 9 | GLAND NUT | 304 | 1 |
| 10 | SPRING WASHER | 304 | 1 |
| 11 | STEM NUT | 304 | 1 |
| 12 | STEM | 316 | 1 |
| 13 | LOCK DEVICE | 304 | 1 |
| 14 | HANDLE | 304 | 1 |
Cangzhou Heli Machinery Co., Ltd, which was established in 1997, is a professional manufacturer in China for stainless steel ball valves, pipe fittings and machinery parts. Our company covers an area of 20000 square meters, including 8000 square meters' workshops. 100% of our products are exported to Europe, Japan, Australia, the United States and other districts. Our sales have been up to 8.6 millon US dollars in 2012 since we set up our factory with sales at only 200 thousand US dollars per year.

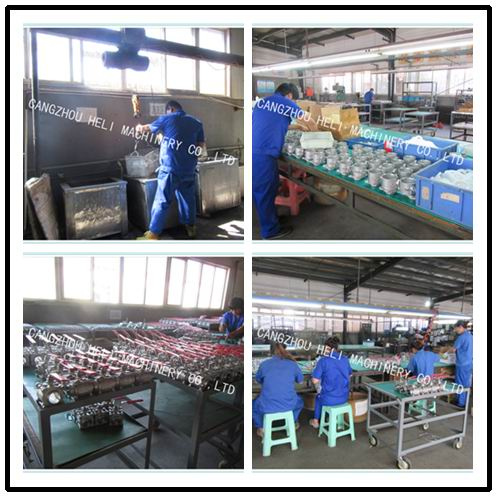

The staff and equipment are as follows:
More than 200 trained and experienced employees
8sets of mould making facility
2lines of investment casting foundry with 100tons monthly capacity
30sets of CNC lathe
9sets of ball processing machines
40sets of other machines including cutting, testing, assembling etc.
ISO9001: 2008 and PED/97/23/EC approved by TUV Rheinland in 2002
Cangzhou Heli Machinery Co., Ltd has the capacity to develop new products, so OEM parts are also made here
High quality, fast delivery and best service are always guaranteed in Cangzhou Heli Machinery Co., Ltd.
