| Prod Model: |
HV-31 |
| Certifiction: |
Ce, ISO9001:2008 |
| Delivery: |
30 Days |
| Thread: |
NPT DIN BSPT |
| Body: |
Investment Casting |
| Body Material: |
CF8/CF8m/Wcb |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Nominal Pressure: |
1000psi(69bar) |
| Function: |
Control Flow |
| Temperature: |
-10~+150 Degree |
Product Description
3PC Stainless Steel Threaded Ball Valve

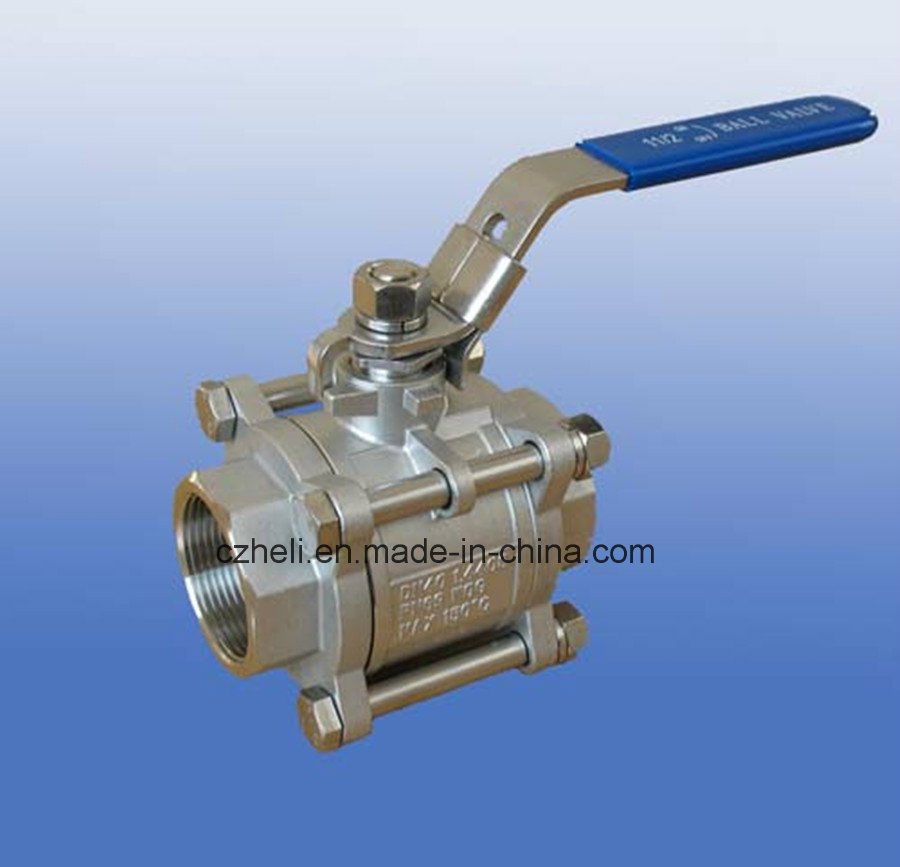

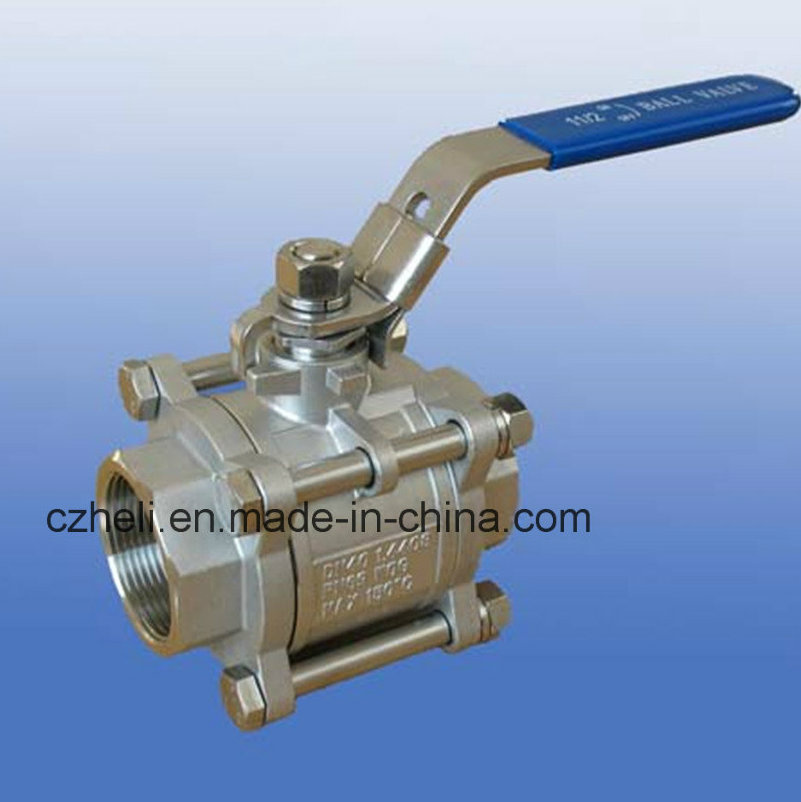

1. Photo of 3PC 1000WOG threaded ball valve:
2.Induction:3pc thread ball valve
Product No.:HV-31
Working pressure:1000PSI(PN69)
Working temperature:-10oC-150oC
Suitable medium:water oil gas
Threaded end:BSPT NPT DIN2999
Material:316 CF8M/ 304 CF8 1.4408/1.4308

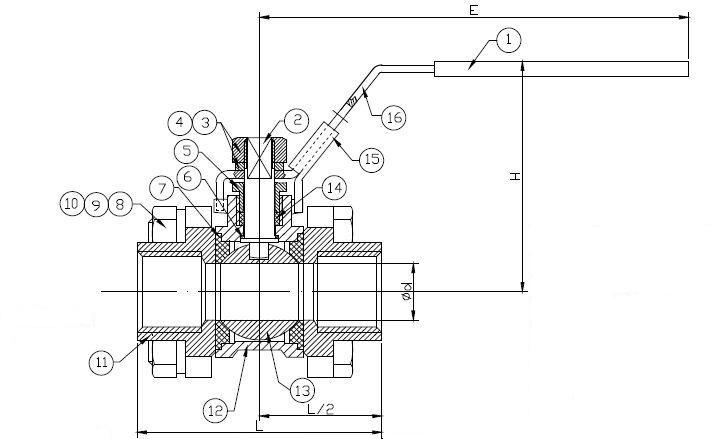

3.Technical drawings:
| NO. | NAME | MATERIAL | Q'TY |
| 1 | PLASTIC COVER | PLASTIC | 1 |
| 2 | STEM | 316 | 1 |
| 3 | HAND WASHER | 304 | 1 |
| 4 | HAND NUT | 304 | 1 |
| 5 | GLAND | 304 | 1 |
| 6 | THRUST WASHER | PTFE | 1 |
| 7 | END SEAL | PTFE | 2 |
| 8 | BOLT | 304 | 4 |
| 9 | BOLT NUT | 304 | 4 |
| 10 | BOLT WASHER | 304 | 4 |
| 11 | END CAP | 316/304 | 2 |
| 12 | BODY | 316/304 | 1 |
| 13 | BALL | 316 | 1 |
| 14 | STEM PACKING | PTFE | 1-3 |
| 15 | LOCK DEVICE | 304 | 1 |
| 16 | HANDLE | 304 | 1 |
4.Size: | SIZE | d | L | H | E |
| 1/4" | 9.2 | 60 | 52 | 108 |
| 3/8" | 12.8 | 60 | 52 | 108 |
| 1/2" | 15 | 63 | 63 | 113 |
| 3/4" | 20 | 70 | 68 | 113 |
| 1" | 25 | 82 | 79 | 135 |
| 11/4" | 32 | 96 | 88 | 135 |
| 11/2" | 38 | 107 | 97 | 190 |
| 2" | 50 | 124 | 108 | 190 |
| 21/2" | 65 | 164.6 | 128 | 230 |
| 3" | 80 | 182.7 | 140 | 230 |
| 4" | 100 | 217.7 | 172 | 335 |

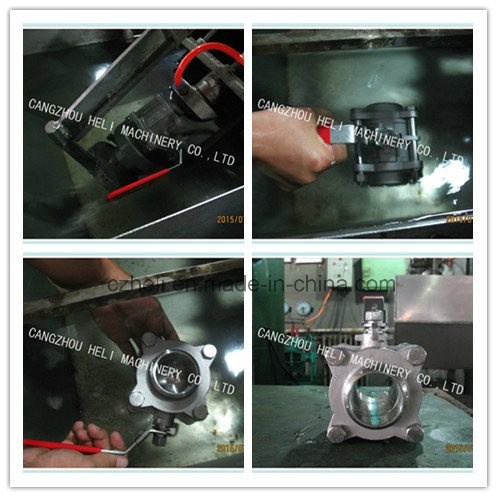

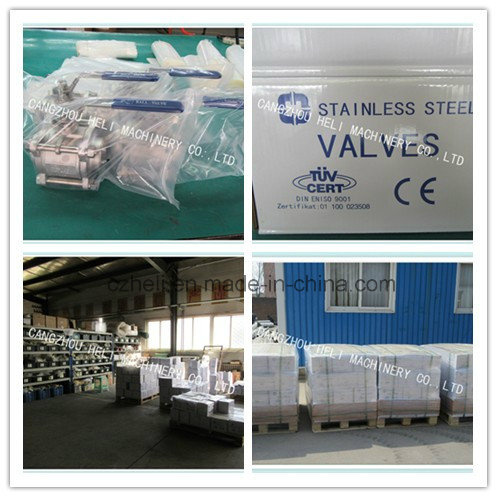

5.Inspection and Packing List:
6. Certificates:
7.FAQ:Q1. Are you a factory or trading company?
A1. Yes, we have our own factory, and we specialize in manufacturing valves and fitting since the year of 1997.And we have got certificate CE&ISO9001:2008 of manufacturing and processing of valves and fittings.
Q2.Can I have a sample order for valve?
A2. Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
A3. Sample needs 15 days, mass production time needs 35 days
Q4. Do you have any MOQ limit for valve order?
A4. Low MOQ, 1pc for sample checking is available
Q5. Can you produce the products according to my own drawings?
A5. Yes, we can produce the products according to your drawings.Q6. How do you ship the goods and how long does it take to arrive?
A6. We usually ship by sea. It usually takes 30 days to arrive. Airline shipping is also optional.
