| Prod Model: |
PT-P3270 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Memory: |
DDR2 |
| SATA Interface: |
SATA2.0 |
| Printed Circuit Board: |
Six Layer |
| Audio Effects: |
HiFi |
| Maximum Memory Capacity: |
1g |
| Structure: |
3.5'' Mother Board |
| CPU Socket: |
on Board Intel Atom N2701.6GHz |
Product Description
Main Feature:
· Intel ATOM N270 1.6G CPU
· On Board 512M or 1G DDR2 Memory
· COM1 RS232/COM2 RS232/485/422
. 18/36bit LVDS Display
. Power Supply DC12V
Introduction

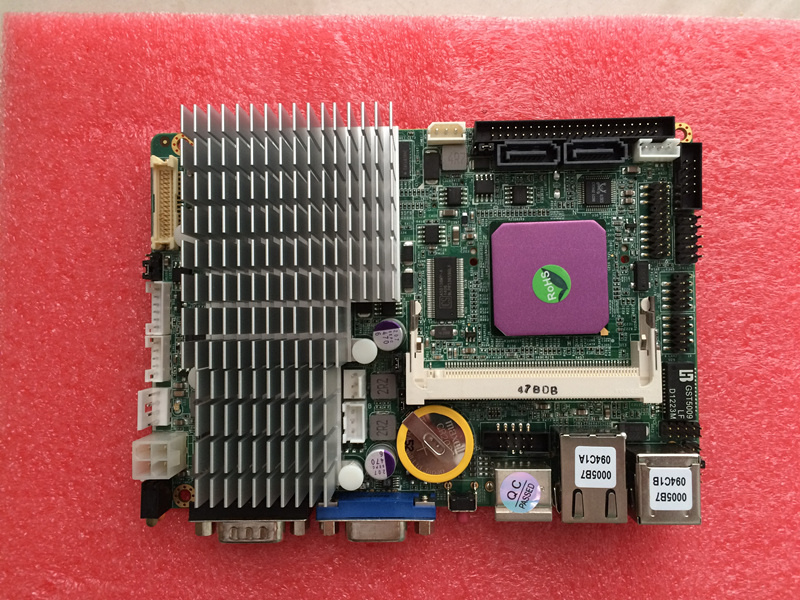

PT-P3270 is 3.5'' industrial grade mother board with smart structure, Fanless design. It's onboard Intel ATOM N270 1.6GHz CPU, Intel 945GSE+ICH7M chipset, onboard DDR 512GB or 1GB memory, Max up to 2GB. It also has 1*Mini PCI and 200PIN DDR2 SO-DIMM expansion slot. It can be used industrial Box PC, MINI PC, industrial grade equipment, automation etc.
| CPU | Intel ATOM N270 1.6G |
| Chipset | Intel 945GSE+ICH7M |
| Memory | On Board 512M or 1G DDR2 Memory,Max 2GB |
| Storage | 2 x SATA,1 x 44P IDE,1 x CF |
| Expansion Slots | 1 x MINI PCI,1x 200PIN DDR2 SO-DIMM |
Back Panel
I/O Port | 1 x DC12V Power Input |
| 1 x VGA |
| 1 x COM |
| 2 x USB2.0 |
| 1 x RJ45 10/100/1000M LAN |
| 1 x PS/2 K/M |
Internal
I/O Port | 1 x COM2 RS232/485/422 header |
| 4 x USB2.0 header |
| 1 x LPT header |
| 1 x GPIO header |
| 1 x 18-bit LVDS Connectors |
| 1 x Audio header |
| 1 x 4Pin power Input header |
| 1 x CF Connectors |
| Power supply | 4Pin power Input DC12V |
| Dimension | 146 x 102mm |
| Operating Temp | 0°C ~ 60°C |
| Storage Tempe | -20°C ~ 80°C |
| Storage Humidity | 5~90%@40°C(non-condensing ) |
