Industrial Mini Mother Board Intel 1037u Computer Hardware
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
PT-3137 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
4G |
| Memory: |
DDR3 |
| SATA Interface: |
SATA2.0 |
| Printed Circuit Board: |
Four Layers |
| Audio Effects: |
HiFi |
| Structure: |
3.5'' Mother Board |
| CPU Socket: |
Intel Celeron 1037u 1.8GHz |
Product Description

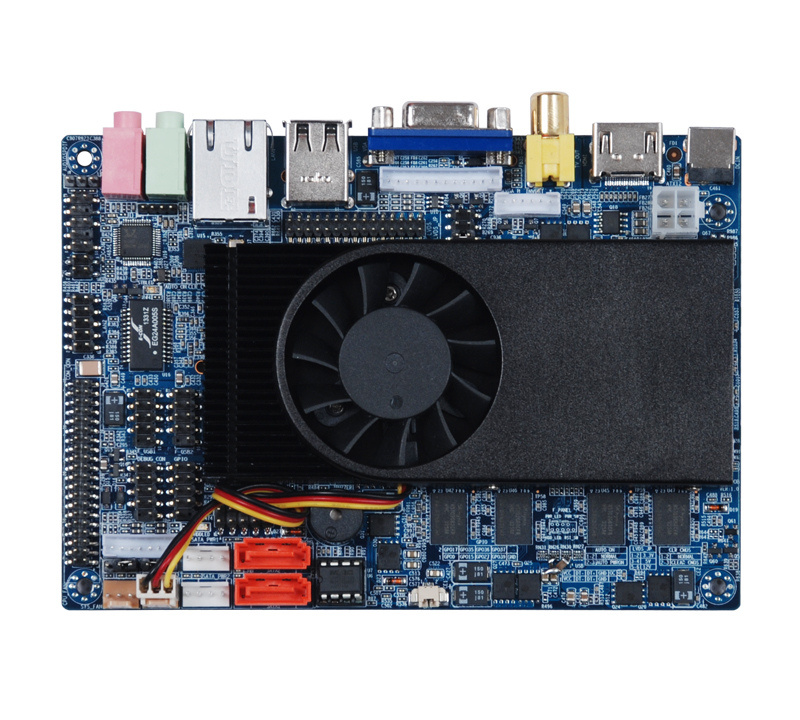

Main feature: ·Intel C1037U 1.8GHz.Support 4*RS232 COM·Onboard 2GB DDR3 Memory.Support 18-bit LVDS Connectors.Support TV OUTIntroduction PT-3137 is MINI ITX mother board with Intel C1037U 1.8GHz, Intel C1037U+NM70 chipset. it has 4*RS232, 1*MINI PCIE, 2*SATA connector, Onboard 2GB DDR3 Memory, max up to 4Gb. it's very economical solution. PT-3137 can be used widely to equipment, automation, transportation, Kiosk, All-in-one Fanless Design PC etc. Specification | CPU | Intel C1037U 1.8GHz(L3 2M) |
| Chipset | Intel C1037U+NM70 |
| Memory | Onboard 2GB DDR3 Memory,Max 4GB( Optional) |
| Storage | 2 x SATA |
| Expansion Slots | 1x MINI PCIE,1 x SIM |

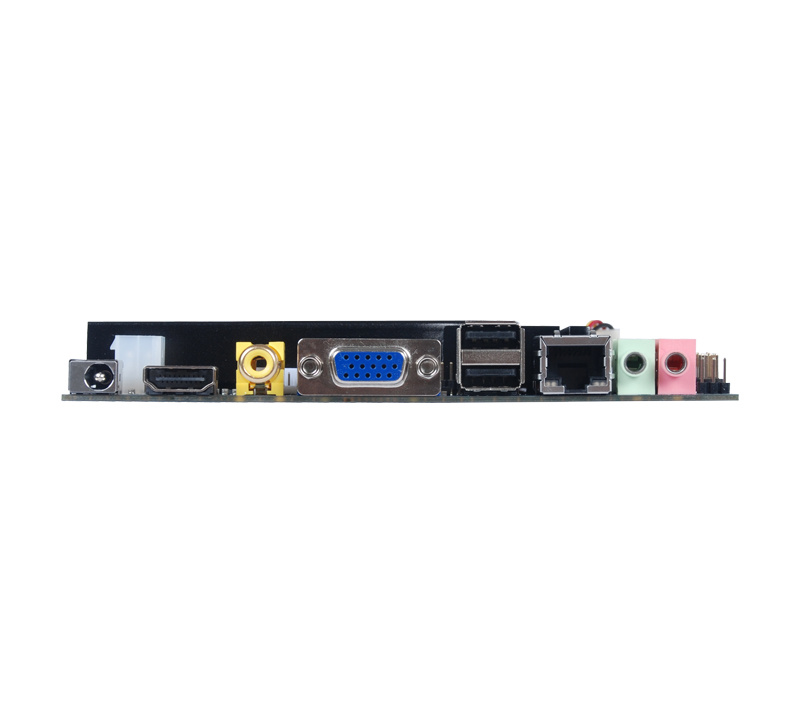

Back Panel
I/O Port | 1 x VGA |
| 1 x HDMI |
| 1 x TV OUT |
| 2 x USB |
| 1 x RJ45 Gigabit LAN |
| 1 x AUDIO LINE OUT,MIC IN |
| 1 x DC12V IN |
Internal
I/O Port | 4 x RS232 header |
| 1 x LAN header |
| 4 x USB header |
| 1 x VGA header |
| 1 x 8pin AUDIO header |
| 1 x 4pin Speaker header |
| 1 x 3pin SPDIF header |
| 1 x 18-bit LVDS Connectors |
| 1 x LVDS-PW Connectors |
| 1 x GPIO header |
| 1 x PS/2 Keyboard/Mouse header |
| 1 x 4Pin POWER Connectors |
| Power supply | DC 12V |
| Dimension | 145 x 100mm |
| Operating Tempe | -10°C ~ 60°C |
| Storage Tempe | -20°C ~ 70°C |
| Storage Humidity | 5~90%@40°C(non-condensing) |
| Ordering information | PT-3137:3.5"mother board with onboard 2GB Memory/ Intel C1037U 1.8GHz,4*RS232,1*LAN,1*TV OUT |
