300-600m Portable Bore Well Drilling Machine Price

300-600m Portable Bore Well Drilling Machine Price
Price: US $ 20000-25000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

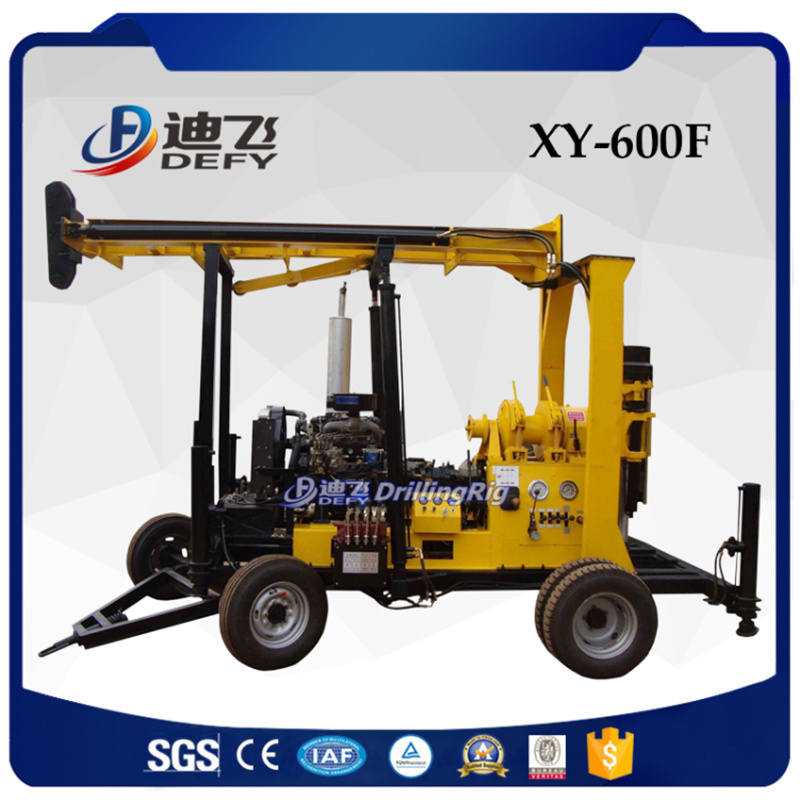

Prod Model: XY-600F
Max Depth: 600m
Application: Water Well, Coring, Mineral Exploration, etc.
Power: 53HP
Move Base: Six Wheels
Mud Pump: Bw-200 / 250
Color: Yellow or Blue

Product Description

Features of Portable Bore Well Drilling Machine Price

1. Power supply: It can be powered by diesel engine or electric motor as options; Diesel engine is started by electric battery.

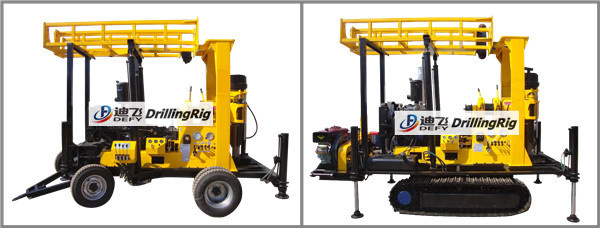

2. Mobile base: It can be mounted on trailer, crawler or truck for easy move and different drilling environment;
3. Automobile transmission assembly: With 10 grades forward rotation speed and 2 grades reverse rotation speed, can meet various stratum drilling requirements.
4. Mud pump: Designed wih BW-200 or BW-250 mud pump, XY-600F is with much larger water flushing rate, with better scraps cleaning effects.
5. For different stratum: Soil, sand, gravel, rocks. XY-600F can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.

Technical parameter of Portable Bore Well Drilling Machine Price

1. Main Parameters
Max. Drilling Depth600m
Diameter of drill pipeΦ42,Φ50,Φ60,Φ76
Angle of vertical spindle90°~65°
Drilling capability
Φ75mm drill diameter600m depth
Φ127mm drill diameter400m depth
Φ219mm drill diameter210m depth
Φ273mm drill diameter150m depth
2. Vertical Spindle
Rotation speedForward 10 grades      30-1050r/min
Reverse 2 grades     29-137r/min
3. Main hoist
Lifting speed of single wire0.5-1.9m/s
Diameter of wire rope12.5mm
Carry capacity of single wire4000kg
4. Mud pump(as per your choice)
Horizontal triplex mud pumpBW-200
Displacement200L/min
5.Power supply(choose one between the following two)
Diesel engineModel 4100,38kw(50HP)
Electrical motorY180M-4B35,22kw
6.Six-wheel Trailer
Walking speed25Km/hr

Contact info : Debbie Liu

Mobile : +86-13213019085

Facebook: debbieliu004




Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.

Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.

Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
