| Prod Model: |
MJ6130TD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension Of Sliding Table: |
3200 * 375 mm |
| Gross Cut Capacity: |
3200 mm |
| Max Cutting Width: |
1250 mm |
| Saw Blade Diameter: |
250 - 350 mm |
| Height Of Cut: |
75 mm |
| Speed Of Main Saw Spindle: |
4500-6000rpm |
| Main Saw Spindle Diameter: |
30 mm |
| Motor Power: |
5.5 + 1.1 Kw |
| Saw Spindle Diameter: |
30 +20 mm |
| Weight: |
900 Kgs |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |

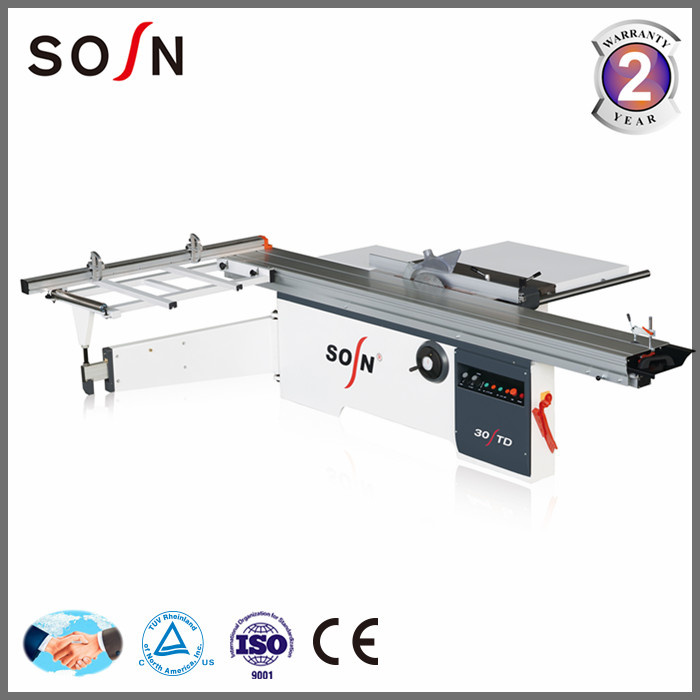

Product Description
Features:1.Apply to processing all kings of density boards, shaving boards, wood-based panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
2.Movable table guide track is plating chromium steel bars structure, exact and durable.
3.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
4.With oxidation treatment, movable table surface is beautiful and hardwearing.
Parameter:| Main technical parameter for MJ6130TD |
| Dimension of sliding table | 3000x375mm |
| Gross cut capacity | 3000mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-300mm) |
| Height of cut (300mm) | 80mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45° |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 0.75kw |
| weight | 850kg |
| Overall dimension | 3000x2450x900mm |
| Packing size of the machine body(L*W*H) | 2170*1100*1150mm |
| Packing size of the sliding table(L*W*H) | 3150*400*260mm |
ge&DStatic spray paint technology for machine, never paint off,
|
thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.
|
Fine micro adjustment,stable and precision.
|
Auto power off saw blade cover added the working safety
|
5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
|
European quality button
|
Aluminum extruded fence with large stopper
|
Big ruler with high quality
|
Big saw blade tilt degree is digital show, very convenient for operator, also with high precision.
This favor is only for re-seller,(it is optional)
|
elivery

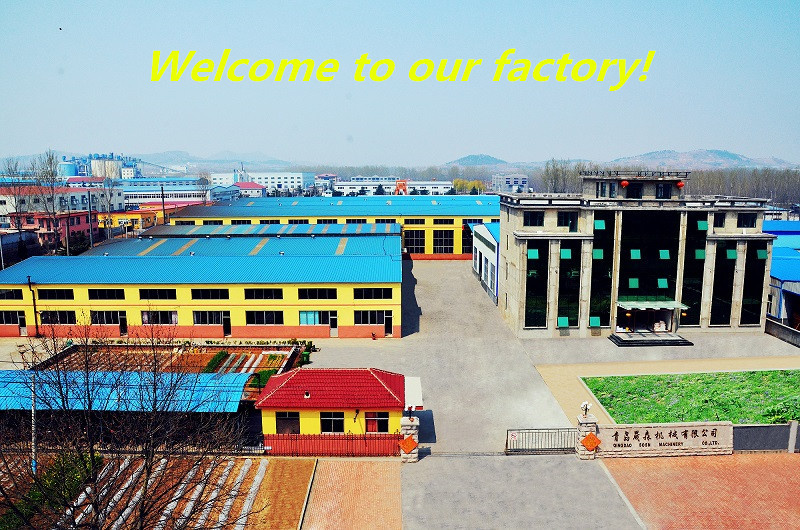

SOSN WOODWORKING MACHINERY CO. Ltd is the leading woodworking machinery manufacturer in Qingdao Wangtaipu Industrial Park.
We produce and offer woodworking machinery with Top Quality & Satisfied Price only.
We have factories with a complete line of production equipments to ensure the highest quality and lowest cost.
The company produced precision panel saw Edge machine and various other products, sold through out the country and exported to Southeast Asia Russia,
more than 20 countries and regions. Contact us for more information right now.
We are professional manufacture of woodworking machines for many years.
And my workshop are specialised on panle saw machines.
We know that for machines, trust quanlity is the most important factor and time will test that when using.
Also, a competitive price is another important factor for buyers, where we base on reasonable profits,
Much lower than the same quanlity of others.
Trust quanlity, lower price and reliable service are what we can promise to every customer.
That is why we have over 70 agents all over the country.
Right now we have sellers for our machines in Iran, Indian, Israel, Canada, Lithuania, and so on
We can offer every customer trust quanlity machines with competitive price.
So dear Sirs, when you are in need of this kind of machines,
Please contact us.
NOTE:1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.

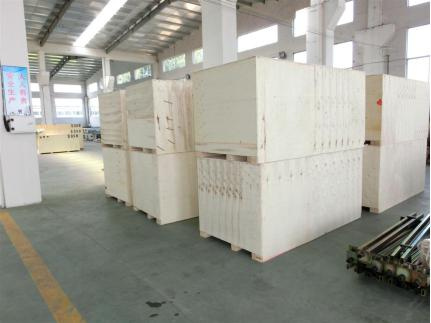

3. Package: atandard export wooden case package.
4. Delivery time:20 days after getting the deposit (depends on the quantity)Reasons to choose SOSN:1: professional team--as much as possible to meet your needs2: quick delivery--timely and effective3: excellent after-sale services--no worries anymore4: friend partner relationship--a win-win cooperationIf any question,feel free to contact me.
I am ready to serve you all the time!
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
