| Prod Model: |
JBW-300C |
| Delivery Time: |
3 Days After Get Payment |
| Certification: |
Ce ISO |
| Color: |
Customized |
| Max Impact Energy: |
300j/450j/600j/750j |
| Type: |
Impact Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
300j/450j/600j/750j |
Product Description

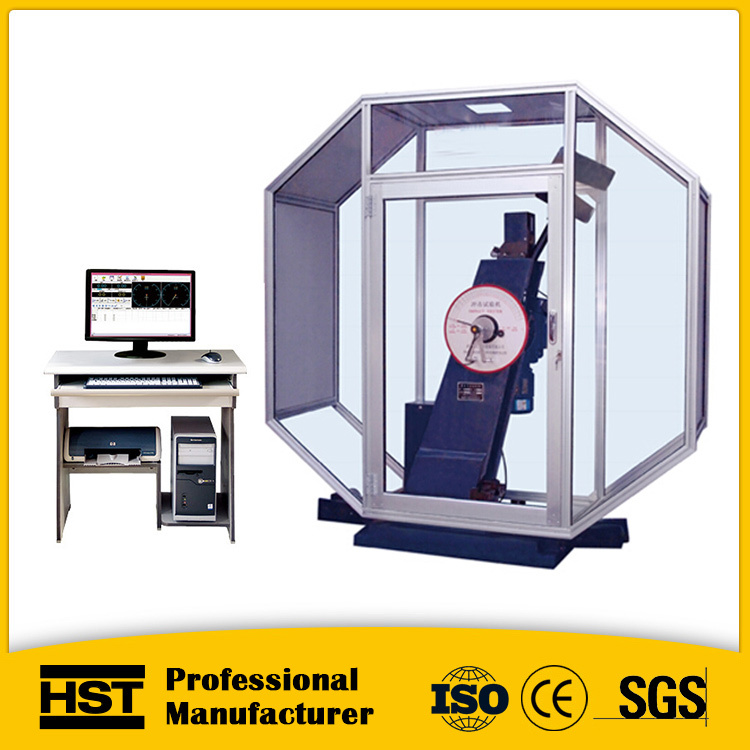

500j pendulum impact tester
1. Application
JBW-C type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.It's a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2. Description
The type uses PC computer control, it can achieve Yang pendulum→impact→measure→operation→digital display→print etc computerized operations,high efficiency, high precision. Especially for continuous impact test lab and do a lot of impact test metallurgy, machinery manufacturing and other industries. The computer can calculate and display material impact absorbed energy, the pendulum Yang angle and test averages. It can achieve remote data transmission according to user needs.
3. Features
3.1 Main frame is dual prop, shaft simply supported beam supporting, hanging pendulum, a reasonable distribution of radial load bearing host stiffness, particularly suitable for large energy impact test.
3.2 Standard dual-stage reducer mention hammer, smooth operation.
3.3 Hanging pendulum device uses a hydraulic cushion, hanging pendulum steady
3.4 Pendulum 3D design, to ensure the combat center accurate, precise moment the pendulum.
3.5 Shock knife with screw mounting, easy replacement.
3.6 Main frame is equipped with safety pins, and is equipped with a fully enclosed safety net.
4. Main Technical Specifications
| Model | JBW-300C | JBW-450C | JBW-600C | JBW-750C |
| Control Method | Computer Control |
| Max. impact energy | 300J | 450J | 600J | 750J |
| Impact speed | 5.24m/s |
| Pre-rising angle of the pendulum | 150° |
| Angle accuracy | ±0.1° |
| Specimen bearer span | 40mm |
| Round angle of the jaw | R1.0~1.5mm |
| Round angle of impact edge | R2.0~2.5mm(R8mm) |
| Thickness of impact knife | 16mm |
The distance between the
pendulum shaft and impact point | 750mm |
| Standard specimen dimension | 10×10(7.55)×55mm |
| Pendulum | 300J 1pc | 450J 1pc | 600J 1pc | 750J 1pc |
| Power supply | Three-phase four-wire system 50Hz /380V |
5. Standard Accessories
Main unit----------1 set
Operating Instrument holder-----1set
Pendulum-----1 pc
Reducer-----1set
Take place transmission device-----1set
Automatic hanging pendulum device-----1set
Insurance agencies-----1set
Internal hexagonal wrench S=12-----1pc
Bearing correctors-----1pc
Sample plummet-----1pc
Ground screw-----4pc
Impact testing security guards----1 set
Measurement and Control System-----1set
Lenovo computer,HP Printer---1 set
Dedicated control software tester-----1set
Adjustment wedges-----4pcs
6. Measurement and Control section
6.1 Record impact strength, impact energy etc. Also calculate the average of the maximum and minimum.
6.2 The test data can be processed automatic, Automatic measure the cycle swing.
6.3 It has perfect Data analysis, Suitable for all types of complex data analysis to the user.
6.4 It has Complete operating system file, test report, test file etc.
6.5 The data can be stored as ASC, also can be reprocessed by any business report, word processing software.
6.6 The software support Multiple pendulum.
6.7 The test data can be statistic analysis automatic after test.
6.8 The report editing is flexible, Software offers a variety of report printing interface. (Excel, Word)
6.9 Interface display and control system.
