| Prod Model: |
JBS-300C |
| Delivery Time: |
3 Days |
| Certification: |
Ce ISO |
| Type: |
Impact Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
750j |
Product Description

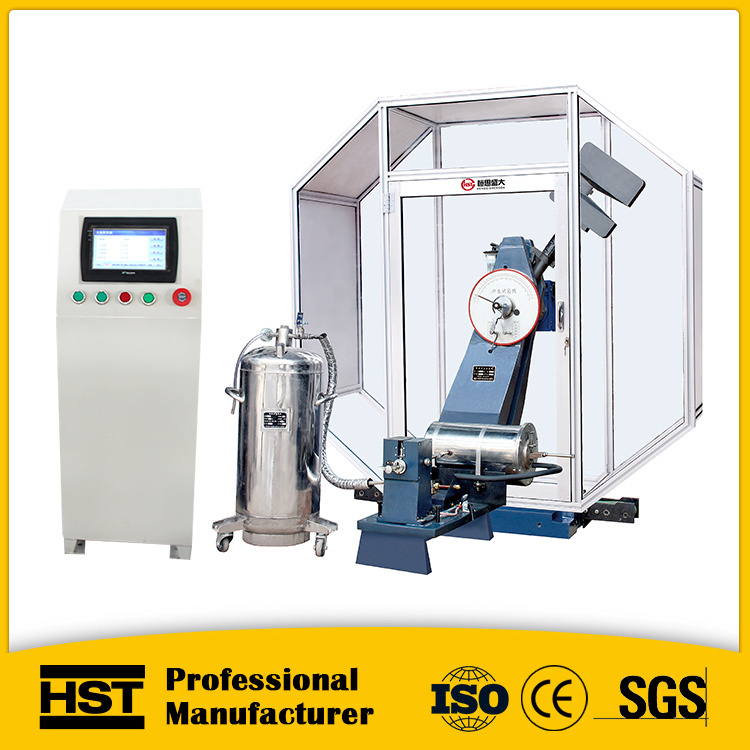

JBDW -C Series Ultralow-temperature Automatic Impact Testing machine
Contact: sunny phone:+8615866777590
1.Application
JBS-C type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.It's a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2. Description
The equipment is simple operate with High efficiency, Yang pendulum, hanging swing, feeding, positioning, shock and temperature adjustment settings are controlled by a microcontroller, equipped with special feeding device automatic feeding, automatic sample face orientation. Sample baked to impact time is less than two seconds, meet the requirements of low-temperature metal Charpy impact test method. It can use the remaining energy to automatic Yang pendulum after impact the sample, prepare for the next test preparation, high efficiency.
3. Features
3.1 Main frame is dual prop, shaft simply supported beam supporting, hanging pendulum, a reasonable distribution of radial load bearing host stiffness, particularly suitable for large energy impact test
3.2 Standard dual-stage reducer mention hammer, smooth operation
3.3 Hanging pendulum device using buffer device, hanging pendulum steady
3.4 Pendulum 3D design, to ensure the combat center accurate, precise moment the pendulum.
3.5 Shock knife with screw mounting, easy replacement.
3.6 Main frame is equipped with safety pins, and is equipped with a fully enclosed safety net.
4. Main Technical Specifications
| Model | JBS-300C | JBS-450C | JBS-600C | JBS-750C |
| Control Method | Single Chip Control |
| Max. impact energy | 300J | 450J | 600J | 750J |
| Impact speed | 5.24m/s |
| Pre-rising angle of the pendulum | 150° |
| Angle accuracy | ±0.1° |
| Specimen bearer span | 40mm |
| Round angle of the jaw | R1.0~1.5mm |
| Round angle of impact edge | R2.0~2.5mm(R8mm) |
| Thickness of impact knife | 16mm |
The distance between the
pendulum shaft and impact point | 750mm |
| Standard specimen dimension | 10×10(7.55)×55mm |
| Pendulum | 300J 1pc | 450J 1pc | 600J 1pc | 750J 1pc |
| Dimensions | 2200×800×2100mm |
| Net Weight | 750Kg |
| Power supply | Three-phase four-wire system 50Hz /380V |
5. Standard Accessories
Main unit----------1 setOperating Instrument holder-----1setPendulum-----1 pcReducer-----1setTake place transmission device-----1setAutomatic hanging pendulum device-----1setInsurance agencies-----1setInternal hexagonal wrench S=12-----1pcBearing correctors-----1pcSample plummet-----1pc Ground screw-----4pcImpact testing security guards----1 setMeasurement and Control System-----1setTouch screen display-----1setAdjustment wedges-----4pcs
Optional Equipment
Instrumented Impact System;Striker is bolted to the pendulum and available in either 8 mm (ASTM E23) or 2 mm (BS, DIN, JIS, EN,and ISO148-1983 )nose radius sizes;Anvils and pendulums for Charpy, Izod & tensile impact testing;Notch Cutter for impact specimen;Projector for verification of U and V-shaped notch of the impact specimen.
