| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| Prod Model: | HZ-MS |
|---|---|
| Markets: | South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Product Name: | Marble Cutting Segment |
| Outer Diameter: | 300mm, 12 Inch |
| Segment Size: | 40X3.8X12mm |
| Classification: | Power Tool Parts |
| Material: | Diamond & Metal Powder |
| Segment Type: | Sandwich, Multi Layer |
| Application: | Marble Cutting |
| Feature: | Sharpness, Fast Cutting |
| Supplier Type: | Manufacturer |
| Certification: | ISO, CE, SGS, Ukas |
| Manufacturing Arts: | Welding |
| Usage: | Stone Cutting |
| Brand: | Huazuan, or OEM |
| Shape: | Fan Shape |
| Thickness: | 3.8mm |
| Specification: | 12 Inch |
| Saw Blade External Diameter: | 300mm |
| Kind: | Marble Cutting Segment |

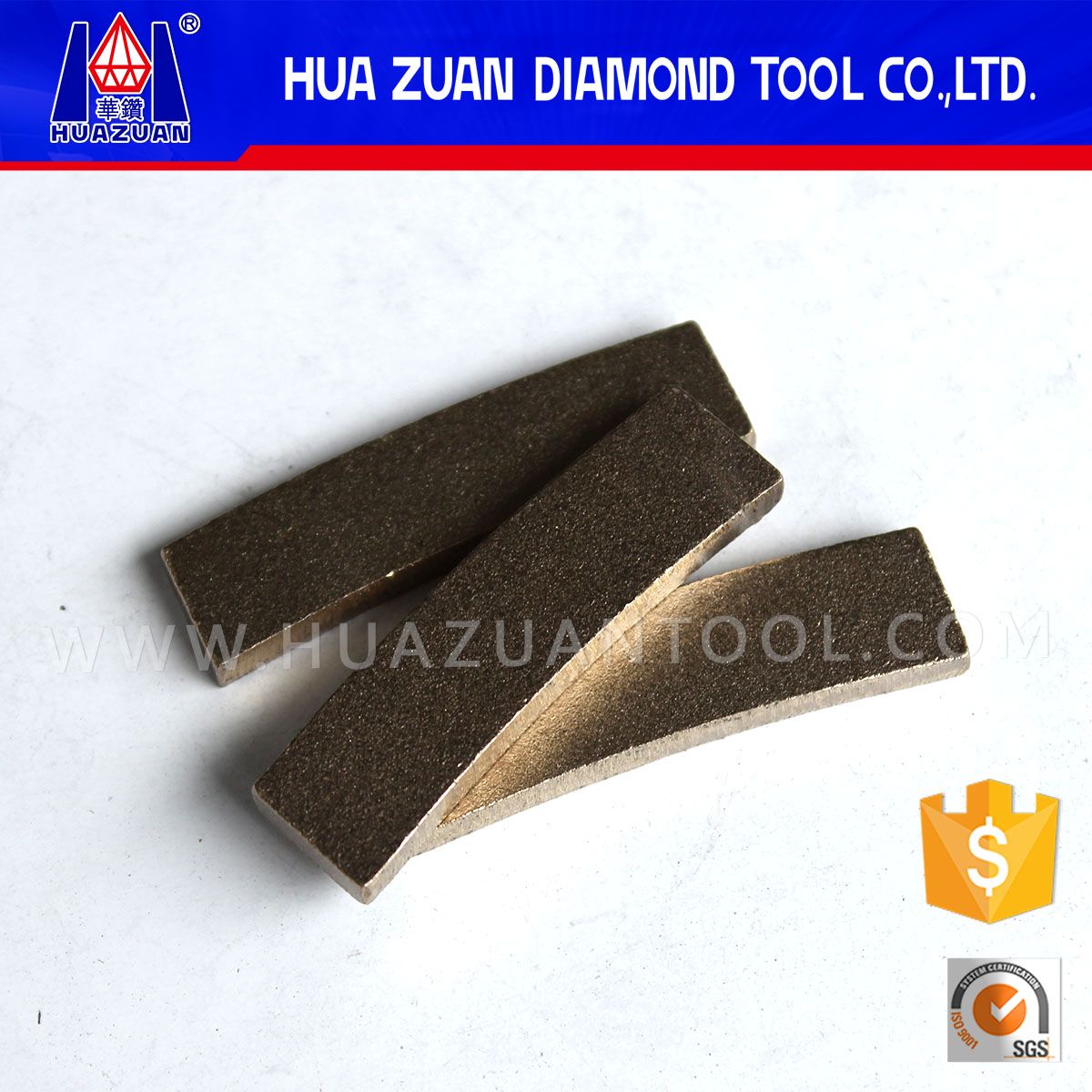

Product Name | 300mm fast cutting fan shape diamond segment for marble stone |
Size | 40x3.8x12mm (Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone. ) |
Diameter | 300mm blades, 105mm-800mm marble cutting segments can make |
Application | Marble cutting segment used for cutting marble ( also other more segments for granite, marble, limestone, lava, concrete ) |
Feature |
1. Fast cutting & long life & Stable performance, High grade of diamonds 2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping
|

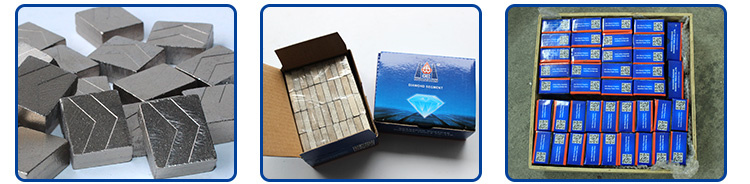

Package | Color box,double blister card,skin packing,white box etc |
Supply ability | 100,000pcs/month(We accept mixed order) |
Quality | ISO9001&Gold Supplier Factory=Quality Control=Competitive Price=Owntechnology=OEM |
Granite blade segment dimension | |||||
Outer Diameter | Dimension of Teeth | No.of teeth | |||
Inch | mm | length | Thickness | Height |
|
10" | 250 | 40 | 3.0 | 12/15/20 | 17 |
12" | 300 | 40 | 3.0 | 12/15/20 | 21 |
14" | 350 | 40 | 3.2 | 12/15/20 | 24 |
16" | 400 | 40 | 3.4 | 12/15/20 | 28 |
18" | 450 | 40 | 4.0 | 12/15/20 | 32 |
20" | 500 | 40 | 4.2 | 12/15/20 | 36 |
24" | 600 | 40 | 4.6 | 12/15/20 | 42 |
28" | 700 | 40 | 5.6 | 12/15/20 | 42 |
32" | 800 | 40 | 5.6 | 12/15/20 | 46 |
Marble blades segment dimension | |||||
10" | 250 | 40 | 3.0 | 8/10 | 18 |
12" | 300 | 40 | 3.0 | 8/10 | 22 |
14" | 350 | 40 | 3.4 | 8/10 | 25 |
16" | 400 | 40 | 3.6 | 8/10 | 29 |
18" | 450 | 40 | 4.0 | 8/10 | 32 |
20" | 500 | 40 | 4.2 | 8/10 | 36 |
24" | 600 | 40 | 4.6 | 8/10 | 42 |
28" | 700 | 40 | 5.6 | 8/10 | 42 |
32" | 800 | 40 | 5.6 | 8/10 | 46 |
Other specifications are available upon request. | |||||
Q:Are you a factory or trading company?
A:We are factory.
Q:Where is your factory located?How can I visit you?
A:Our factory located in Quanzhou City,Fujian Province,China.You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will you pick you up.Welcome you to visit our factory.
Q. How is your quality?
A. We have a very seriously control system(ISO 9001 and SGS product quality control) and 100% quality inspection Before Shipment.
Q.What we should do if the diamond core drill bit you order can not run well?
A:Please don't worry we will solve this problem with yourside.
Give us detailed report.Analyze the reason.Try to find a way to solve the problem.
If it's our problem and not possible to solve then will give replacement.
Q. Do you have different quality for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q. If we need technical support of diamond core drill bit, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment staff, engineers and technicians.
