Prod Model: |
2-2300mesh |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Width: |
0.5m-6m |
Material: |
SUS316L |
Hole Shape: |
Square |
Application: |
Protecting Mesh |
Type: |
Stainless Steel Plain Wire Mesh |
Material Type: |
Stainless Steel Wire |
Weave Technique: |
Plain Weave |
Wire Mesh Width: |
1m |
Technique: |
Woven |
Nickels: |
0-13 |
Product Description

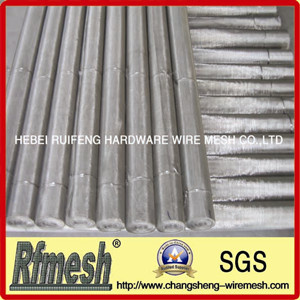

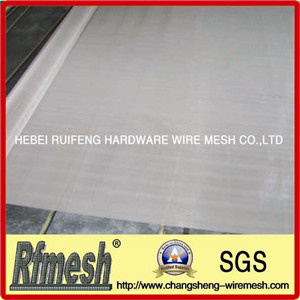

Name: Stainless steel wire mesh/cloth
Spec: 2 mesh to 2800 mesh. (core specifications: 80mesh, 150mesh, 180mesh, 200mesh, 300mesh, 325mesh, 400mesh & 500mesh per inch)
Material: SS302, SS304, SS304HC, SS304L, SS316, SS316L etc.
Weave methods:
Plain weave: Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires.
Stainless Steel Wire Mesh and Wire Cloth, Plain Weave |
Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
7meshx7mesh | 1.00 | 2.63 | 304 or316 |
10meshx10mesh | 0.60 | 1.94 | 304 or316 |
12meshx12mesh | 0.50 | 1.62 | 304 or316 |
16meshx16mesh | 0.40 | 1.19 | 304 or316 |
16meshx16mesh | 0.35 | 1.24 | 304 or316 |
18meshx18mesh | 0.35 | 1.06 | 304 or316 |
20meshx20mesh | 0.40 | 0.87 | 304 or316 |
24meshx24mesh | 0.26 | 0.80 | 304 or316 |
30meshx30mesh | 0.30 | 0.55 | 304 or316 |
35meshx35mesh | 0.17 | 0.56 | 304 or316 |
40meshx40mesh | 0.23 | 0.40 | 304 or316 |
50meshx50mesh | 0.20 | 0.31 | 304 or316 |
60meshx60mesh | 0.15 | 0.27 | 304 or316 |
70meshx70mesh | 0.12 | 0.24 | 304 or316 |
80meshx80mesh | 0.13 | 0.19 | 304 or316 |
90meshx90mesh | 0.12 | 0.16 | 304 or316 |
100meshx100mesh | 0.10 | 0.15 | 304 or316 |
120meshx120mesh | 0.09 | 0.12 | 304 or316 |
150meshx150mesh | 0.063 | 0.11 | 304 or316 |
180meshx180mesh | 0.053 | 0.09 | 304 or316 |
200meshx200mesh | 0.053 | 0.07 | 304 or316 |
Stainless Steel Wire Mesh and Wire Cloth, Twill Weave |
Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
250meshx250mesh | 0.040 | 0.063 | 316 |
300meshx300mesh | 0.040 | 0.044 | 316 |
325meshx325mesh | 0.035 | 0.043 | 316L |
350meshx350mesh | 0.030 | 0.042 | 316L |
400meshx400mesh | 0.030 | 0.033 | 316L |
450meshx450mesh | 0.028 | 0.028 | 316L |
500meshx500mesh | 0.025 | 0.026 | 316L |
Stainless Steel Wire Cloth, Dutch Weave |
Mesh | Wire Dia. (MM) | Material (AISI) |
12mesh x 64mesh | 0.58 x 0.40 | 304 or 316 |
24mesh x 110mesh | 0.36 x 0.25 | 304 or 316 |
14mesh x 88mesh | 0.50 x 0.33 | 304 or 316 |
30mesh x 150mesh | 0.23 x 0.18 | 304 or 316 |
40mesh x 200mesh | 0.18 x 0.13 | 304 or 316 |
50mesh x 250mesh | 0.14 x 0.11 | 304 or 316 |
80mesh x 700mesh | 0.10 x 0.08 | 304 or 316 |
165mesh x 800mesh | 0.071 x 0.040 | 304 or 316 |
165mesh x 1400mesh | 0.06 x 0.04 | 304 or 316 |
200mesh x 1800mesh | 0.05 x 0.032 | 304 or 316 |
825mesh x 2300mesh | 0.035 x 0.025 | 316L |
400mesh x 2800mesh | 0.030 x 0.02 | 316L |
Width of Stainless Steel Wire Mesh: 0.6m-1.5mODM and OEM are ok. If possible, please be sure let me know.
Thank you for visting the homepage of the Hebei Ruifeng Hardware Wire Mesh Co., Ltd. We are a company which began to run in 1985 as a workshop, and then called Anping Changsheng Wire Mesh Co., Ltd. Our company owns the capabilities to draw wire, galvanize and weave mesh. In recent months, we purchase machines to weave PE fiberglass mesh and punching mesh. Equipped with production and inspection equipments over 100 sets and the annual output is up to RMB 50, 000, 000. Despite of the short history of 22 years, we pay close attention to the advanced technology, strict management system and strong know-how. Thus, we have a good reputation among our new and old customers for our satisfied quality, timely delivery.
The core products: Stailess steel wire cloth, brass wire mesh, woven wire mesh, welded wire mesh and fiberglass window screen. Meanwhile, we could offer hexagonal wire netting, black wire cloth, expanded wire mesh, barbed wire, barbed rope, fencing mesh, metal net, metal wire, bed wire mesh, feet-stamped mesh, conveyor belt mesh, animal cage. The very products mentioned above are widely used in many filelds such as mining, building, food industry, petrochemical industry, pharmaceutical industry and so on.
Our manage idea --- " hard work, qualified staff, satisfied production and trust ". Now we have found a whole system from raw material purchasing, production, quality-controlled, package and transformation to service after sales which has confirmed effectively in practice. In view of the world market, we emphasize the importance of transforming traditional wire mesh industry with advanced technology. So it is natural to supply our customers with further high quality, further high service and more flexible policy.
We hold a serious desire to establish friendly business relations with different customers in different regions and countries. At the same time, we are sincerely in the hope of bringing you increasingly tangible benefits.
