| Prod Model: |
RF-426 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material 1: |
Stainless Steel Wire ,Aluminum |

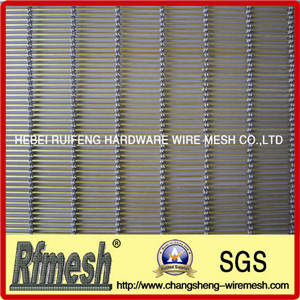

Product Description
1, Material: Stainless steel, Galvanized iron wire,Brass wire, Copper wire, Bronze wire.
2, Standard fixing detail: Inserted round bar with eye-bolts; clamping profile.
3, Standard width: 2.5x1.25 m, 3x1 m, 4 m, 6 m, 8 m.
4, Characteristics: As a new material for decoration, this kind of mesh is constructed with solid rods and
cables; normally the material is stainless steel wire, aluminum and its alloy. By rods, the mesh can achieve
stability while the cables give flexibility to the mesh.
5, Usage: It is widely used as decoration and building covers outdoors. The curtain can be easily installed or
fixed into different shape.
6, Applications: It is applied for elevation, partition, ceiling in airport, hotel, theater, and exhibition.
The curtain can show different results as the changes the light, environment and looking angle
design |
open area |
cable wire dia. |
cable pitch |
bar dia. |
bar pitch |
thickness |
wt |
1 |
40% |
1x1.8 mm |
4 mm |
1.5 mm |
5.5 mm |
5.1 mm |
7.74kg/m2 |
2 |
43% |
1x2.5 mm |
6 mm |
2 mm |
8 mm |
5.5 mm |
7.87kg/m2 |
3 |
62% |
2x2.75 mm |
40 mm |
4 mm |
14.5 mm |
9.5 mm |
9.41kg/m2 |
4 |
37.20% |
3x0.5 mm |
3.5 mm |
0.5 mm |
1.4 mm |
1.3 mm |
2.4kg/m2 |
5 |
71% |
3x1.6 mm |
80 mm |
2.5 mm |
10 mm |
5.7 mm |
4.58kg/m2 |
6 |
65% |
3x2 mm |
80 mm |
3 mm |
10 mm |
7 mm |
6.67kg/m2 |
7 |
65.90% |
3x2.75 mm |
110 mm |
4 mm |
14.5 mm |
10 mm |
8.5kg/m2 |
8 |
67% |
3x3 mm |
110 mm |
4 mm |
14.2 mm |
10 mm |
8.6kg/m2 |
9 |
44.30% |
4x0.75 mm |
26.4 mm |
1.5 mm |
3 mm |
3 mm |
5.2kg/m2 |
10 |
62% |
4x1 mm |
36 mm |
2 mm |
6.6 mm |
4 mm |
4.55kg/m2 |
11 |
40% |
4x2 mm |
50 mm |
3 mm |
6 mm |
7mm |
11.2kg/m2 |
12 |
42% |
4x2 mm |
50 mm |
3 mm |
6 mm |
7 mm |
11.8kg/m2 |
Thank you for visting the homepage of the Hebei Ruifeng Hardware Wire Mesh Co., Ltd. We are a company which began to run in 1985 as a workshop, and then called Anping Changsheng Wire Mesh Co., Ltd. Our company owns the capabilities to draw wire, galvanize and weave mesh. In recent months, we purchase machines to weave PE fiberglass mesh and punching mesh. Equipped with production and inspection equipments over 100 sets and the annual output is up to RMB 50, 000, 000. Despite of the short history of 22 years, we pay close attention to the advanced technology, strict management system and strong know-how. Thus, we have a good reputation among our new and old customers for our satisfied quality, timely delivery.
The core products: Stailess steel wire cloth, brass wire mesh, woven wire mesh, welded wire mesh and fiberglass window screen. Meanwhile, we could offer hexagonal wire netting, black wire cloth, expanded wire mesh, barbed wire, barbed rope, fencing mesh, metal net, metal wire, bed wire mesh, feet-stamped mesh, conveyor belt mesh, animal cage. The very products mentioned above are widely used in many filelds such as mining, building, food industry, petrochemical industry, pharmaceutical industry and so on.
Our manage idea --- " hard work, qualified staff, satisfied production and trust ". Now we have found a whole system from raw material purchasing, production, quality-controlled, package and transformation to service after sales which has confirmed effectively in practice. In view of the world market, we emphasize the importance of transforming traditional wire mesh industry with advanced technology. So it is natural to supply our customers with further high quality, further high service and more flexible policy.
We hold a serious desire to establish friendly business relations with different customers in different regions and countries. At the same time, we are sincerely in the hope of bringing you increasingly tangible benefits.
