30205 Bearing for Constructive Machinery

Name: 30205 Bearing for Constructive Machinery
Brand: tool-buy.com
SKU: 812465015
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 0.1-3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Guan Xian Changming Bearing Co., Ltd.

Showroom Product Company Profile

Prod Model:	30205
Structure:	Taper
Type:	Roller, Taper Roller Bearing
Model Number:	Taper Roller Bearing
Precision Rating:	P6 P5
Clearance:	C2 C3
Noise Level:	Z2 Z3
Cage:	Steel Cage
Quality:	Top
Certification:	ISO9001:2000
Free Sample:	Free Sample
Rolling Body:	Roller Bearings
The Number Of Rows:	Single
Outer Dimension:	Small and Medium-Sized (',60-115mm)
Material:	Stainless Steel
Load Direction:	Radial Bearing
Separated:	Separated

Product Description

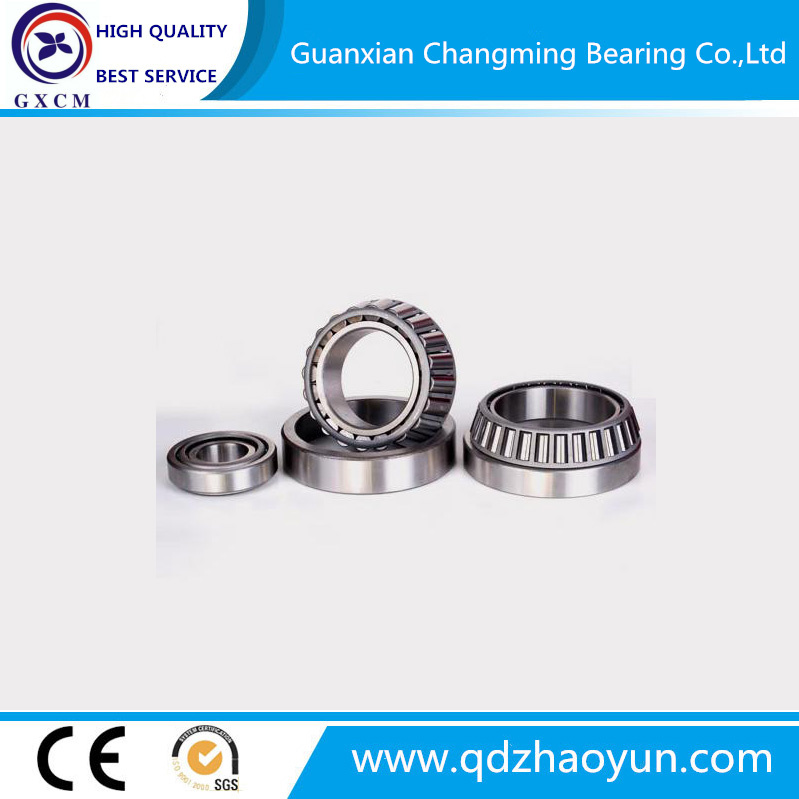

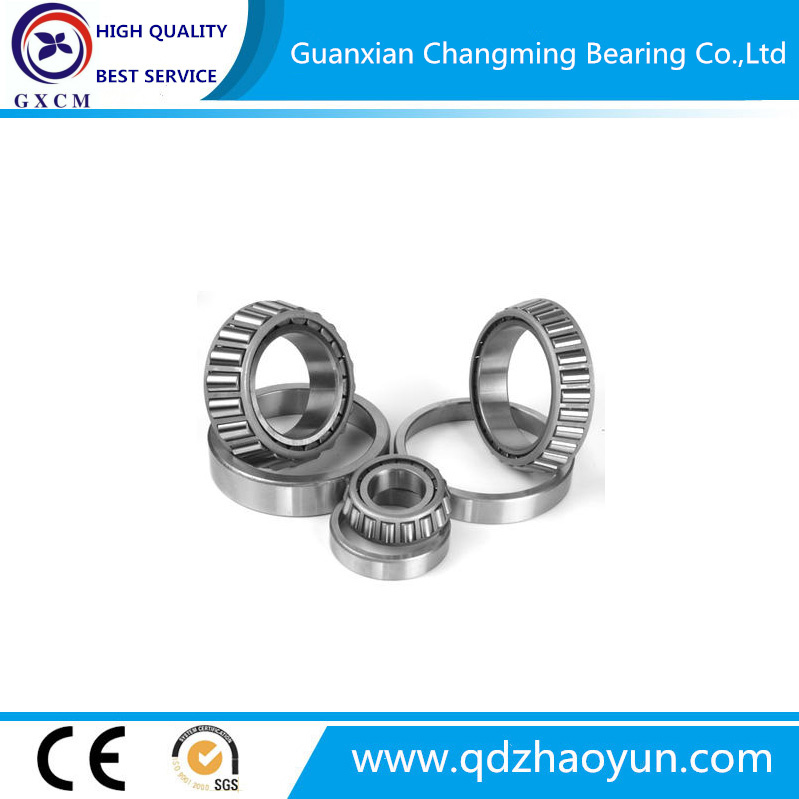

30205 Bearing for Constructive Machinery

We are a factory specializing in manufacturing and exporting bearings. We could also manufacture products according to your special requirements, we will provide a more favorable price.

taper roller bearing 32203 - 32244 series
Bearing	Principal Dimensions (mm)			Mass
No.	d	D	B	kg
32203	17	40	16	0.105
32204	20	47	18	0.151
32205	25	52	18	0.19
32206	30	62	20	0.3
32207	35	72	23	0.44
32208	40	80	23	0.53
32209	45	85	23	0.58
32210	50	90	23	0.61
32211	55	100	25	0.83
32212	60	110	28	1.15
32213	65	120	31	1.5
32214	70	125	31	1.6
32215	75	130	31	1.7
32216	80	140	33	2.05
32217	85	150	36	2.6
32218	90	160	40	3.35
32219	95	170	43	4.05
32220	100	180	46	4.9
32221	105	190	50	6

Series models specification:

30200 series		30300 series
present code	original code	present code	original code
30203 30204 30205 30206 30207 30208 30209 30210 30211 30212 30213 30214 30215 30216 30217 30218	7203E 7204E 7205E 7206E 7207E 7208E 7209E 7210E 7211E 7212E 7213E 7214E 7215E 7216E 7217E 7218E	30304 30305 30306 30307 30308 30309 30310 30311 30312 30313 30314 30315 30316 30317 30318	7304E 7305E 7306E 7307E 7308E 7309E 7310E 7311E 7312E 7313E 7314E 7315E 7316E 7317E 7318E
31300 series		32000 series
present code	original code	present code	original code
31305 31306 31307 31308 31309 31310 31311 31312 31313 31314	27305E 27306E 27307E 27308E 27309E 27310E 27311E 27312E 27313E 27314E	32007 32008 32009 32010 32011 32015 32018 32022 32024 32026	2007107E 2007108E 2007109E 2007110E 2007111E 2007115E 2007118E 2007122E 2007124E 2007126E
32200 series		32300 series
present code	original code	present code	original code
32206 32207 32208 32209 32210 32211 32212 32213 32214 32215 32216 32217 32218 32219 32220 32221 32222	7506E 7507E 7508E 7509E 7510E 7511E 7512E 7513E 7514E 7515E 7516E 7517E 7518E 7519E 7520E 7521E 7522E	32305 32306 32307 32308 32309 32310 32311 32312 32313 32314	7605E 7606E 7607E 7608E 7609E 7610E 7611E 7612E 7613E 7614E
33000 series		33100 series
present code	original code	present code	original code
33011 33014 33015 33017 33019	3007111E 3007114E 3007115E 3007117E 3007119E	33109 33110 33111 33113 33115 33117 33118	3007709E 3007710E 3007711E 3007713E 3007715E 3007717E 3007718E
33200		non-standard series
present code	original code	567205E 76/32B YA7-001 YA7-002 30208RJ2 30210RJ2 127509 27709E 7909E 7713E 7813 7815E 7816E 408215
33205 33206 33207 33208 33209 33210 33211 33213 33214 33215 33217 33218	3007205E 3007206E 3007207E 3007208E 3007209E 3007210E 3007211E 3007213E 3007214E 3007215E 3007217E 3007218E

Tapered roller bearings are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings. We manufacture nearly 26,000 tapered roller bearingcombinations - in single, double and four-row tapered roller bearing configurations. Customized geometries and engineered surfaces can be applied to these tapered roller bearings to further enhance performance in demanding applications.

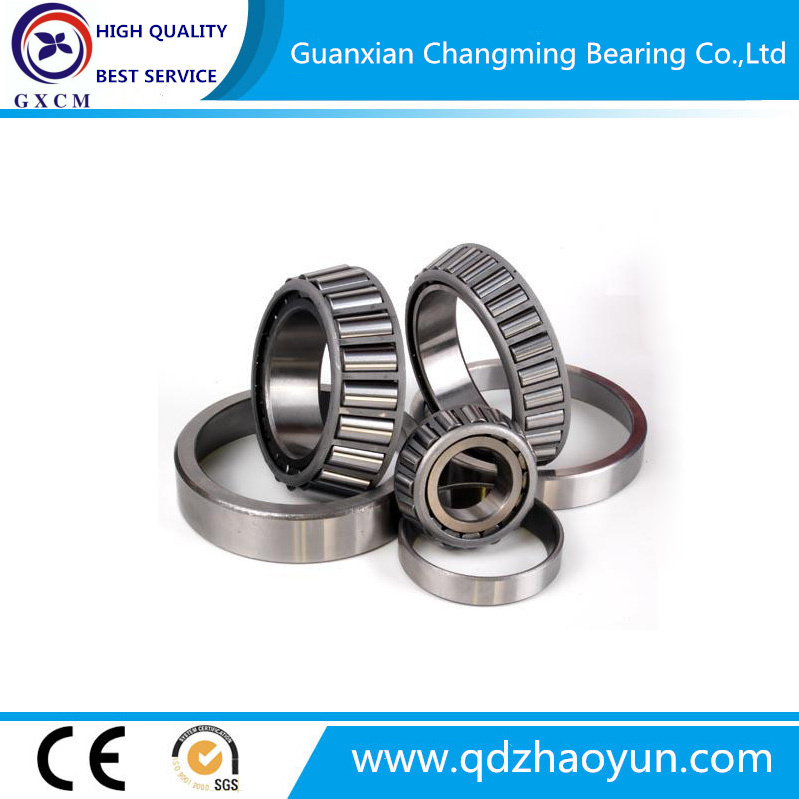

Tapered roller bearings consist of four interdependent components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The taper angles allow the bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of the tapered roller bearing to handle thrust loads.
Taper roller bearing application:
Mainly used in axle box,motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills.

Guanxian Changming Bearing Co., Ltd is a manufacturer and trader which is specialized in the research, development and production of bearing, auto spare parts, gardening products.

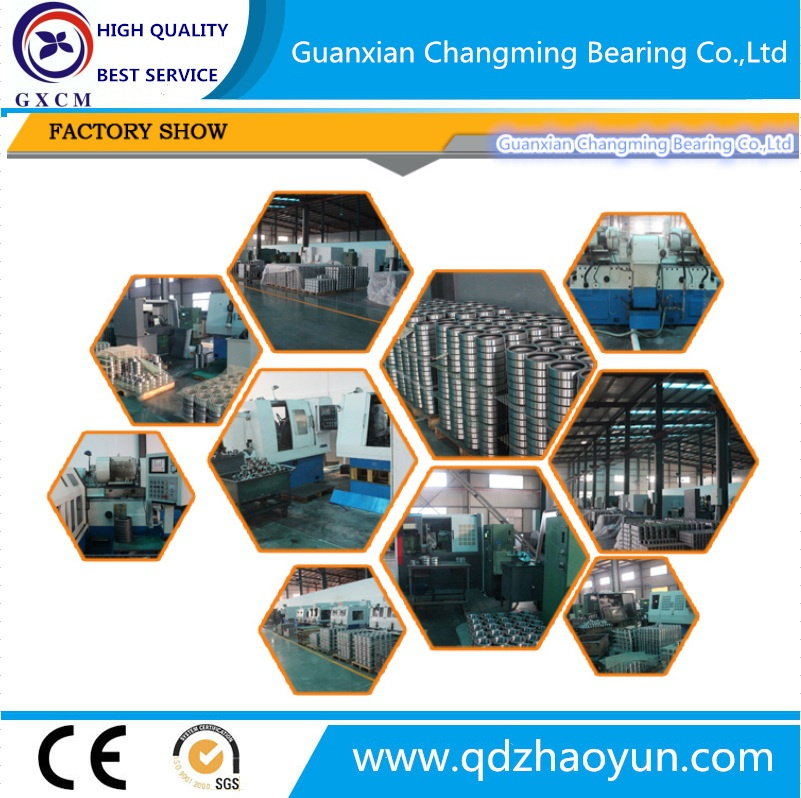

We have been devoting ourselves to production of deep groove ball bearing, tapered roller bearing, spherical roller bearing, cylindrical roller bearing, flange bearing, stamping bearing and all kinds of auto spare parts and gardening products for over 30 years, to make sure we are professional and competitive in this product. "GXCM" is our registered trademark. We own the most advanced full-automatic production equipment, experienced production group and strict quality control system. Besides, our factory also regards the products R&D and Teamwork as the most important thing in enterprise's survival and development.

As a professional manufacturer, we are always looking for the long term business partner to establish win-win success. We insist on developing particularly according to customer's need to make sure we supply them with suitable and satisfying products. We believe that supports, understanding, loyalty is the only way to lead us to win-win success.

We would like to establish business relationship with customers all over the world. We will try our best to fulfill successful cooperation between us.
