High Quality Taper Roller Bearing Used on Automotive or Tractor

High Quality Taper Roller Bearing Used on Automotive or Tractor
Price: US $ 0.2/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 33018
Noise Level: Emq V1 Z2 Emq V2 Z3 Emq V3 Z4
Seals Type: Z, RS, Zz, 2RS
Structure: Deep Groove
Certification: ISO9001:2000 SGS
Tolerance Level: ABEC-1 (P0) ABEC-3 (P6)
Internal Clearance Codes: C0,C2, C3, C4,
Lubrication: Oil,Grease,Dry
Precision Rating: P0,P6,P5,P4,P2
Noise Leve: Z1,Z2,Z3,Z4
Type: Taper Roller
Rolling Body: Roller Bearings
The Number Of Rows: Single
Outer Dimension: Small and Medium-Sized (',60-115mm)
Material: Bearing Steel
Load Direction: Radial Bearing
Separated: Unseparated

Product Description

Bearing Factory Ball Bearing Wheel Bearing Tapered Roller Bearing

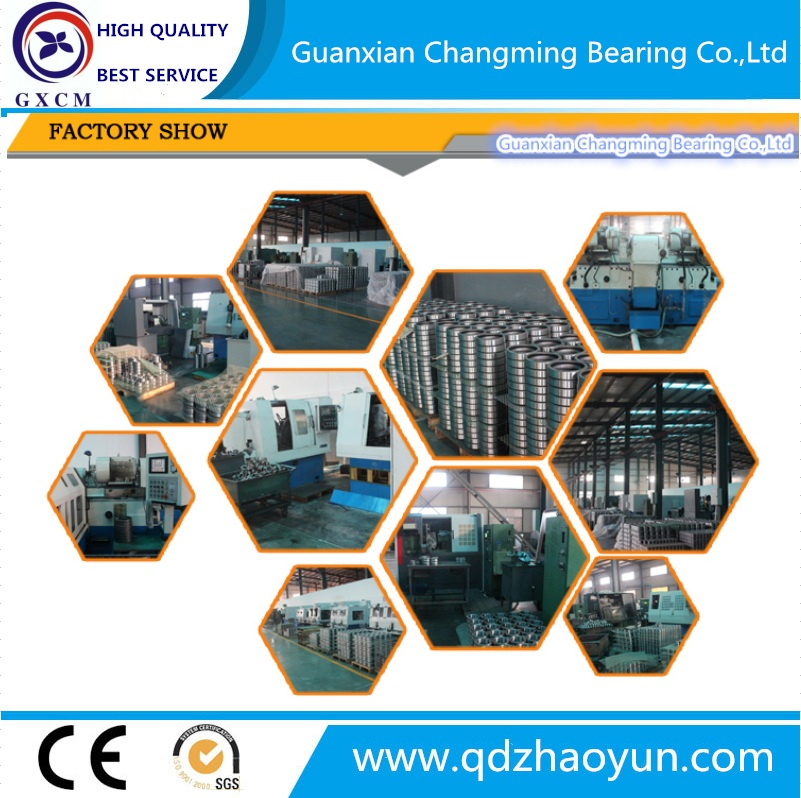

We are a factory specializing in manufacturing and exporting bearings. We could also manufacture products according to your special requirements, we will provide a more favorable price.
Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.
Tapere roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring's raceway. The bigger the contact angle is, the greater the capacity will be.

Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tapered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

Series models sp

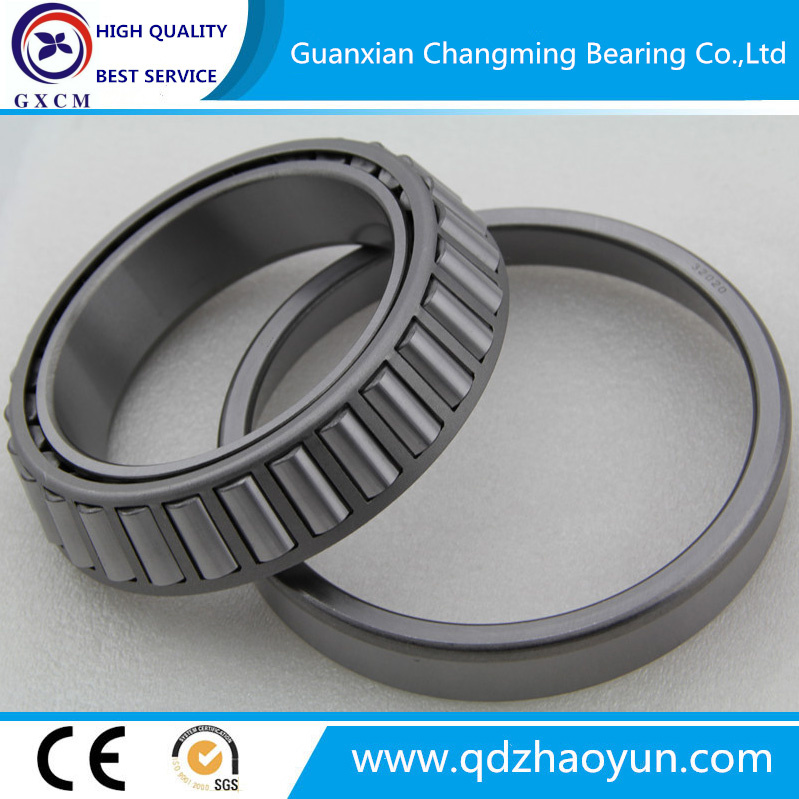

tapered roller bearings

Single row tapered roller bearings are separable radial bearings:

  • Suitable for high radial loads and thrust loads (in one direction)
  • Take up tilting moments
  • When paired, can take up thrust loads in both directions
  • Standards: DIN 616, DIN 720
  • Series: 30200, 30300, 31300, 32000, 32200, 32300, 33000, 33100, 33200
  • Application examples: gear boxes, pumps, compressors, etc.
ProductBearing TypeBore Dia (d) (mm)Outer Dia (D) (mm)Inner Width (Bi) (mm)Outer Width (Bo) (mm)Width (B) (mm)
30202single row assembly15.00035.00011.00010.00011.750
30302single row assembly15.00042.00013.00011.00014.250
30203single row assembly17.00040.00012.00011.00013.250
30303single row assembly17.00047.00014.00012.00015.250
32303single row assembly17.00047.00019.00016.00020.250
30204single row assembly20.00047.00014.00012.00015.250
30204BEsingle row assembly20.00047.00014.00012.00015.250
32204single row assembly20.00047.00018.00015.00019.250
30304single row assembly20.00052.00015.00013.00016.250
30304Csingle row assembly20.00052.00016.00012.00016.250
32304single row assembly20.00052.00021.00018.00022.250
32005single row assembly25.00047.00015.00011.50015.000
30205single row assembly25.00052.00015.00013.00016.250
32205single row assembly25.00052.00018.00016.00019.250
33205single row assembly25.00052.00022.00018.00022.000
31305single row assembly25.00062.00017.00013.00018.250
30305single row assembly25.00062.00017.00015.00018.250
32305single row assembly25.00062.00024.00020.00025.250
320/26single row assembly26.00047.00015.00011.50015.000
320/28single row assembly28.00052.00016.00012.00016.000
332/28single row assembly28.00058.00024.00019.00024.000
32006single row assembly30.00055.00017.00013.00017.000
30206single row assembly30.00062.00016.00014.00017.250
32206single row assembly30.00062.00020.00017.00021.250
33206single row assembly30.00062.00025.00019.50025.000
31306single row assembly30.00072.00019.00014.00020.750
30306single row assembly30.00072.00019.00016.00020.750
32306single row assembly30.00072.00027.00023.00028.750
320/32single row assembly32.00058.00017.00013.00017.000
320/32Asingle row assembly32.00058.00017.00013.00017.000
332/32single row assembly32.00065.00026.00020.50026.000
323/32Bsingle row assembly32.00075.00028.00023.00029.750
32007single row assembly35.00062.00018.00014.00018.000
30207single row assembly35.00072.00017.00015.00018.250
32207single row assembly35.00072.00023.00019.00024.250
33207single row assembly35.00072.00028.00022.00028.000
31307single row assembly35.00080.00021.00015.00022.750
30307single row assembly35.00080.00021.00018.00022.750
32307single row assembly35.00080.00031.00025.00032.750
32008single row assembly40.00068.00019.00014.50019.000
33108single row assembly40.00075.00026.00020.50026.000
30208single row assembly40.00080.00018.00016.00019.750
32208single row assembly40.00080.00023.00019.00024.750
33208single row assembly40.00080.00032.00025.00032.000
31308single row assembly40.00090.00023.00017.00025.250
30308single row assembly40.00090.00023.00020.00025.250
32308single row assembly40.00090.00033.00027.00035.250
32009single row assembly45.00075.00020.00015.50020.000
33109single row assembly45.00080.00026.00020.50026.000
30209single row assembly45.00085.00019.00016.00020.750
32209single row assembly45.00085.00023.00019.00024.750
33209single row assembly45.00085.00032.00024.50032.000
31309single row assembly45.000100.00025.00018.00027.250
30309single row assembly45.000100.00025.00022.00027.250
27709single row assembly45.000100.00029.00020.50031.750
27709Ksingle row assembly45.000100.00029.00020.50032.000
32309single row assembly45.000100.00036.00030.00038.250
32010single row assembly50.00080.00020.00015.50020.000
33110single row assembly50.00085.00026.00020.00026.000
30210single row assembly50.00090.00020.00017.00021.750
32210single row assembly50.00090.00023.00019.00024.750
33210single row assembly50.00090.00032.00024.50032.000
31310single row assembly50.000110.00027.00019.00029.250
30310single row assembly50.000110.00027.00023.00029.250
32310single row assembly50.000110.00040.00033.00042.250
32011single row assembly55.00090.00023.00017.50023.000
33111single row assembly55.00095.00030.00023.00030.000
30111single row assembly55.000100.00021.00018.00022.750
32211single row assembly55.000100.00025.00021.00026.750
33211single row assembly55.000100.00035.00027.00035.000
31311single row assembly55.000120.00029.00021.00031.500
30311single row assembly55.000120.00029.00025.00031.500
32311single row assembly55.000120.00043.00035.00045.500
32311Asingle row assembly55.000120.00043.00035.00045.500
32012single row assembly60.00095.00023.00017.50023.000
33112single row assembly60.000100.00030.00023.00030.000
30212single row assembly60.000110.00022.00019.00023.750
32212single row assembly60.000110.00028.00024.00029.750
33212single row assembly60.000110.00038.00029.00038.000
31312single row assembly60.000130.00031.00022.00033.500
30312single row assembly60.000130.00031.00026.00033.500
32312single row assembly60.000130.00046.00037.00048.500
32312Bsingle row assembly60.000130.00046.00037.00048.500
32013single row assembly65.000100.00023.00017.50023.000
30613Esingle row assembly65.000110.00030.00024.00030.500
33113single row assembly65.000110.00034.00026.50034.000
30213single row assembly65.000120.00023.00020.00024.750
32213single row assembly65.000120.00031.00027.00032.750
33213single row assembly65.000120.00041.00032.00041.000
31313single row assembly65.000140.00033.00023.00036.000
30313single row assembly65.000140.00033.00028.00036.000
32313single row assembly65.000140.00048.00039.00051.000
32313Bsingle row assembly65.000140.00048.00039.00051.000
32014single row assembly70.000110.00025.00019.00025.000
33114single row assembly70.000120.00037.00029.00037.000
30214single row assembly70.000125.00024.00021.00026.250
32214single row assembly70.000125.00031.00027.00033.250
33214single row assembly70.000125.00041.00032.00041.000
31314single row assembly70.000150.00035.00025.00038.000
30314single row assembly70.000150.00035.00030.00038.000
32314single row assembly70.000150.00051.00042.00054.000
32314Bsingle row assembly70.000150.00051.00042.00054.000
32015single row assembly75.000115.00025.00019.00025.000
33115single row assembly75.000125.00037.00029.00037.000
30215single row assembly75.000130.00025.00022.00027.250
32215single row assembly75.000130.00031.00027.00033.250
33215single row assembly75.000130.00041.00031.00041.000
30615single row assembly75.000135.00045.00036.50044.500
31315single row assembly75.000160.00037.00026.00040.000
30315single row assembly75.000160.00037.00031.00040.000
32315single row assembly75.000160.00055.00045.00058.000
32315Bsingle row assembly75.000160.00055.00045.00058.000
32016single row assembly80.000125.00029.00022.00029.000
33116single row assembly80.000130.00037.00029.00037.000
30216single row assembly80.000140.00026.00022.00028.250
32216single row assembly80.000140.00033.00028.00035.250
30616single row assembly80.000140.00045.00036.50045.000
33216single row assembly80.000140.00046.00035.00046.000
31316single row assembly80.000170.00039.00027.00042.500
30316single row assembly80.000170.00039.00033.00042.500
32316single row assembly80.000170.00058.00048.00061.500
32017single row assembly85.000130.00029.00022.00029.000
33117single row assembly85.000140.00041.00032.00041.000
30217single row assembly85.000150.00028.00024.00030.500
32217single row assembly85.000150.00036.00030.00038.500
33217single row assembly85.000150.00049.00037.00049.000
31317single row assembly85.000180.00041.00028.00044.500
30317single row assembly85.000180.00041.00034.00044.500
32317single row assembly85.000180.00060.00049.00063.500
32018single row assembly90.000140.00032.00024.00032.000
33118single row assembly90.000150.00045.00035.00045.000
30218single row assembly90.000160.00030.00026.00032.500
32218single row assembly90.000160.00040.00034.00042.500
31318single row assembly90.000190.00043.00030.00046.500
30318single row assembly90.000190.00043.00036.00046.500
32318single row assembly90.000190.00064.00053.00067.500
32019single row assembly95.000145.00032.00024.00032.000
33019single row assembly95.000145.00039.00032.50039.000
30219single row assembly95.000170.00032.00027.00034.500
32219single row assembly95.000170.00043.00037.00045.500
31319single row assembly95.000200.00045.00032.00049.500
30319single row assembly95.000200.00045.00038.00049.500
32319single row assembly95.000200.00067.00055.00071.500
32020single row assembly100.000150.00032.00024.00032.000
30220single row assembly100.000180.00034.00029.00037.000
32220single row assembly100.000180.00046.00039.00049.000
33220single row assembly100.000180.00063.00048.00063.000
30320single row assembly100.000215.00047.00039.00051.500
31320single row assembly100.000215.00051.00035.00056.500
32320single row assembly100.000215.00073.00060.00077.500
32021single row assembly105.000160.00035.00026.00035.000
32021Asingle row assembly105.000160.00035.00026.00035.000
30221single row assembly105.000190.00036.00030.00039.000
32221single row assembly105.000190.00050.00043.00053.000
30321single row assembly105.000225.00049.00041.00053.500
31321single row assembly105.000225.00053.00036.00058.000
32321single row assembly105.000225.00077.00063.00081.500
32022single row assembly110.000170.00038.00029.00038.000
33022single row assembly110.000170.00047.00037.00047.000
33122single row assembly110.000180.00056.00043.00056.000
30222single row assembly110.000200.00038.00032.00041.000
32222single row assembly110.000200.00053.00046.00056.000
30322single row assembly110.000240.00050.00042.00054.500
31322single row assembly110.000240.00057.00038.00063.000
32322single row assembly110.000240.00080.00065.00084.500
32024single row assembly120.000180.00038.00029.00038.000
30224single row assembly120.000215.00040.00034.00043.500
32224single row assembly120.000215.00058.00050.00061.500
30324single row assembly120.000260.00055.00046.00059.500
31324single row assembly120.000260.00062.00042.00068.000
32324single row assembly120.000260.00086.00069.00090.500
32026single row assembly130.000200.00045.00034.00045.000
30226single row assembly130.000230.00040.00034.00043.750
32226single row assembly130.000230.00064.00054.00067.750
30326single row assembly130.000280.00058.00049.00063.750
31326single row assembly130.000280.00066.00044.00072.000
32028single row assembly140.000210.00045.00034.00045.000
30228single row assembly140.000250.00042.00036.00045.750
32228single row assembly140.000250.00068.00058.00071.750
30328single row assembly140.000300.00062.00053.00067.750
31328single row assembly140.000300.00070.00047.00077.000
32030single row assembly150.000225.00048.00036.00048.000
30230single row assembly150.000270.00045.00038.00049.000
32230single row assembly150.000270.00073.00060.00077.000
30330single row assembly150.000320.00065.00055.00072.000
31330single row assembly150.000320.00075.00050.00082.000
32032single row assembly160.000240.00051.00038.00051.000
30232single row assembly160.000290.00048.00040.00052.000
32232single row assembly160.000290.00080.00067.00084.000
30332single row assembly160.000340.00068.00058.00075.000
32034single row assembly170.000260.00057.00043.00057.000
30234single row assembly170.000310.00052.00043.00057.000
32234single row assembly170.000310.00086.00071.00091.000
30334single row assembly170.000360.00072.00062.00080.000
32334single row assembly170.000360.000120.000100.000128.000
32036single row assembly180.000280.00064.00048.00064.000
30236single row assembly180.000320.00052.00043.00057.000
32236single row assembly180.000320.00086.00071.00091.000
32038single row assembly190.000290.00064.00048.00064.000
30238single row assembly190.000340.00055.00046.00060.000
32238single row assembly190.000340.00092.00075.00097.000
32040single row assembly200.000310.00070.00053.00070.000
30240single row assembly200.000360.00058.00048.00064.000
32240single row assembly200.000360.00098.00082.000104.000
32044single row assembly220.000340.00076.00057.00076.000
32244single row assembly220.000400.000108.00090.000115.000
32948single row assembly240.000320.00051.00039.00051.000
32048single row assembly240.000360.00076.00057.00076.000
Regarding Taper Roller Bearing Application



1. Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery, etc.

2.Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery, industrial vehicles, cement equipment, etc.

3. Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.

4.The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery, printing machinery, etc.

5.Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.

6.Car: truck, road, bus, car, modified car, motorcycle ,etc.

PRODUCTION FLOW











CONTACT US







Guanxian Changming Bearing Co., Ltd is a manufacturer and trader which is specialized in the research, development and production of bearing, auto spare parts, gardening products.

We have been devoting ourselves to production of deep groove ball bearing, tapered roller bearing, spherical roller bearing, cylindrical roller bearing, flange bearing, stamping bearing and all kinds of auto spare parts and gardening products for over 30 years, to make sure we are professional and competitive in this product. "GXCM" is our registered trademark. We own the most advanced full-automatic production equipment, experienced production group and strict quality control system. Besides, our factory also regards the products R&D and Teamwork as the most important thing in enterprise's survival and development.

As a professional manufacturer, we are always looking for the long term business partner to establish win-win success. We insist on developing particularly according to customer's need to make sure we supply them with suitable and satisfying products. We believe that supports, understanding, loyalty is the only way to lead us to win-win success.

We would like to establish business relationship with customers all over the world. We will try our best to fulfill successful cooperation between us.

Send your message to this manufacturer

  • Guan Xian Changming Bearing Co., Ltd.

More >

You May Like

About Us Toolbuy Products Toolbuy Manufacturers Hot Toolbuy Toolbuy News Toolbuy Trade Shows Site Partners Contact Us Sitemap
